Body Harness Routing - Rear Fascia (Chevrolet)

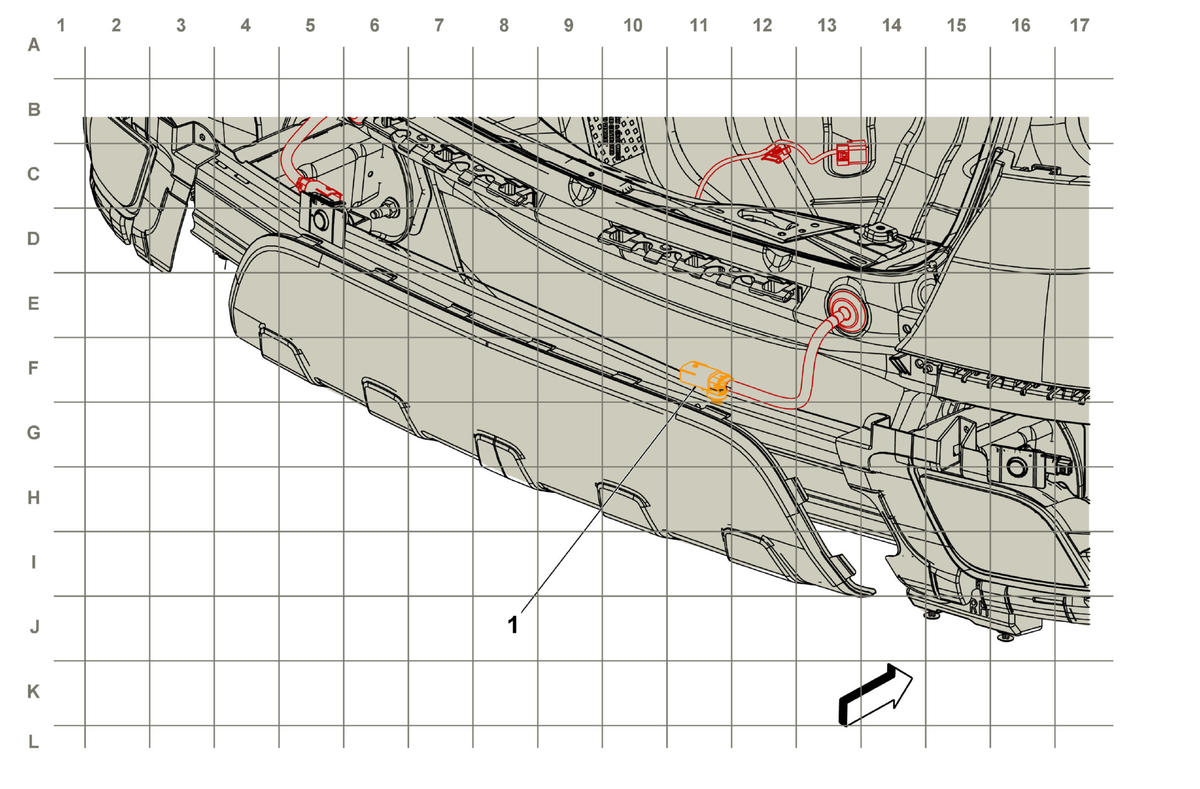

GM3656828Courtesy of GENERAL MOTORS COMPANY
Body Harness Routing - Rear Fascia (Chevrolet)

Harness Name Callout
X400 Rear Object Alarm Sensor Wiring Harness to Body Wiring Harness X400 Rear Fascia Wiring Harness to Body Wiring Harness 1
