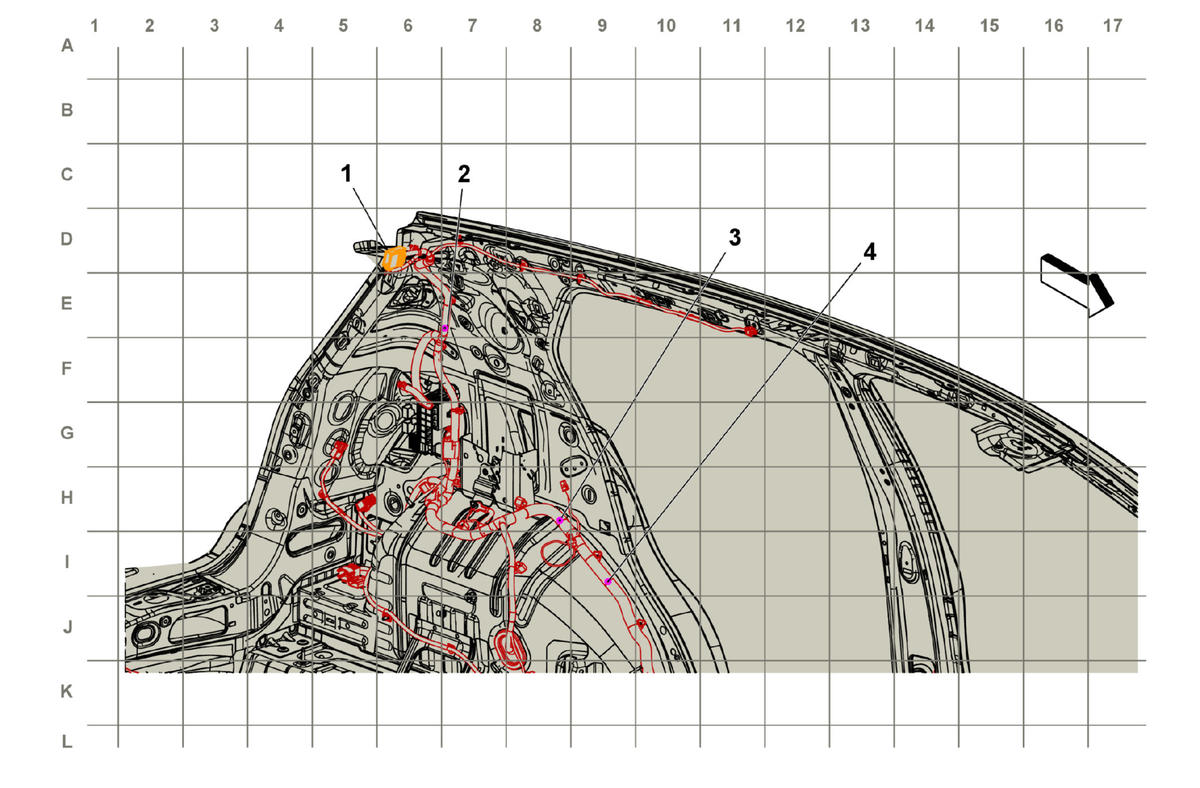

Body Harness Routing - Left Rear of Passenger Compartment (Chevrolet)
Body Harness Routing - Left Rear of Passenger Compartment (Chevrolet)
| Harness Name | Callout |
|---|---|
| X900 Liftgate Wiring to Body Wiring Harness X900 Liftgate Wiring Harness to Body Wiring Harness | 1 |
| J405 Body Harness | 2 |
| J313 Body Harness | 3 |
| J474 Body Harness | 4 |
