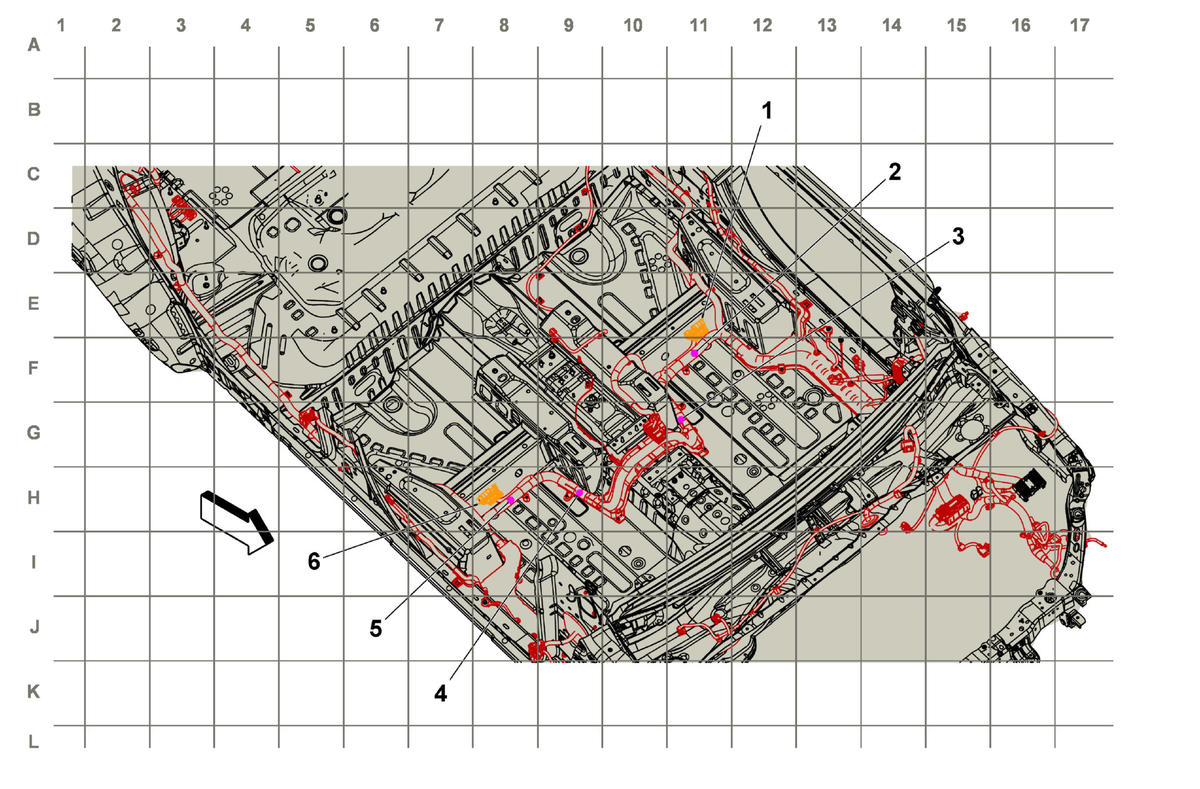

Body Harness Routing - Center of Passenger Compartment (Chevrolet)
Body Harness Routing - Center of Passenger Compartment (Chevrolet)
| Harness Name | Callout |
|---|---|
| X301 Body Wiring Harness to Driver Seat X301 Body Wiring Harness to Driver Seat Wiring Harness | 1 |
| J328 Body Harness | 2 |
| J317 Body Harness | 3 |
| J329 Body Harness | 4 |
| J330 Body Harness | 5 |
| X302 Body Wiring Harness to Passenger Seat X302 Body Wiring Harness to Passenger Seat Wiring Harness | 6 |
