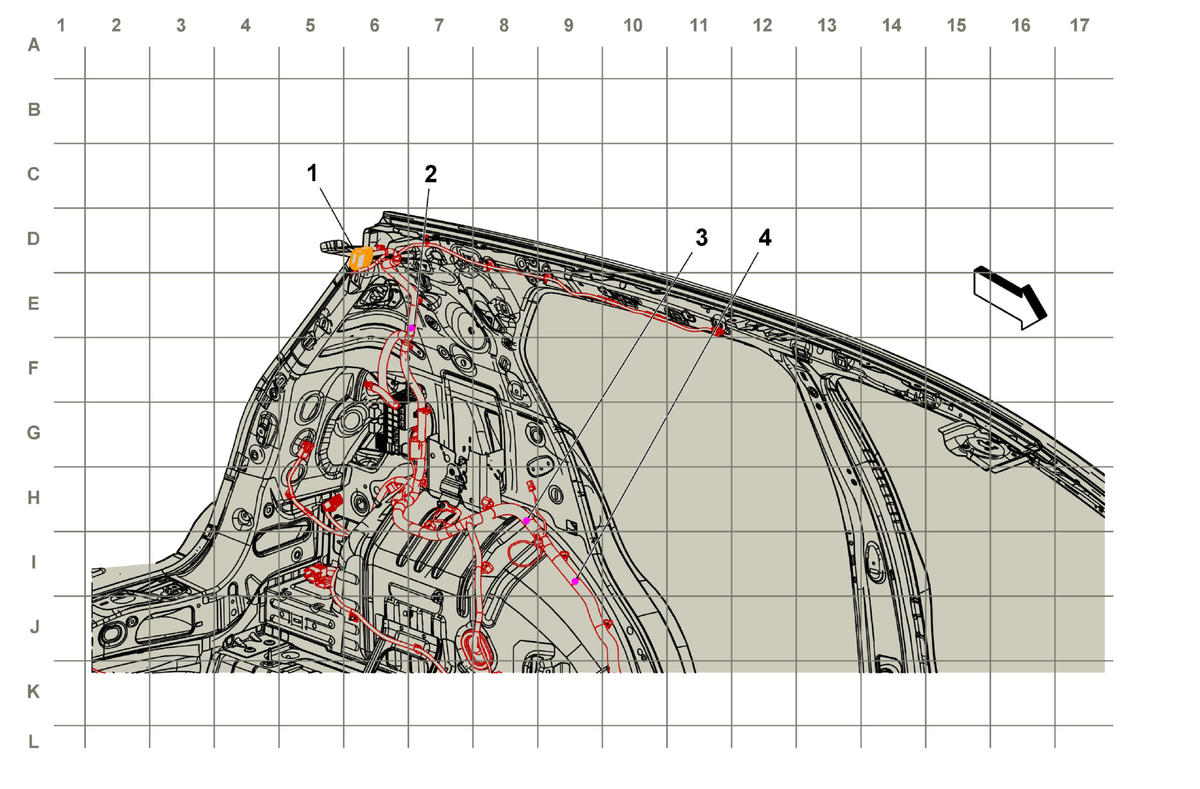

Body Harness Routing - Left Rear of Passenger Compartment (Buick)
 Courtesy of GENERAL MOTORS COMPANY
|
Body Harness Routing - Left Rear of Passenger Compartment (Buick)
| Harness Name |
Callout |
| X900 Liftgate Wiring to Body Wiring Harness |
1 |
| J405 Body Harness |
2 |
| J313 Body Harness |
3 |
| J474 Body Harness |
4 |
