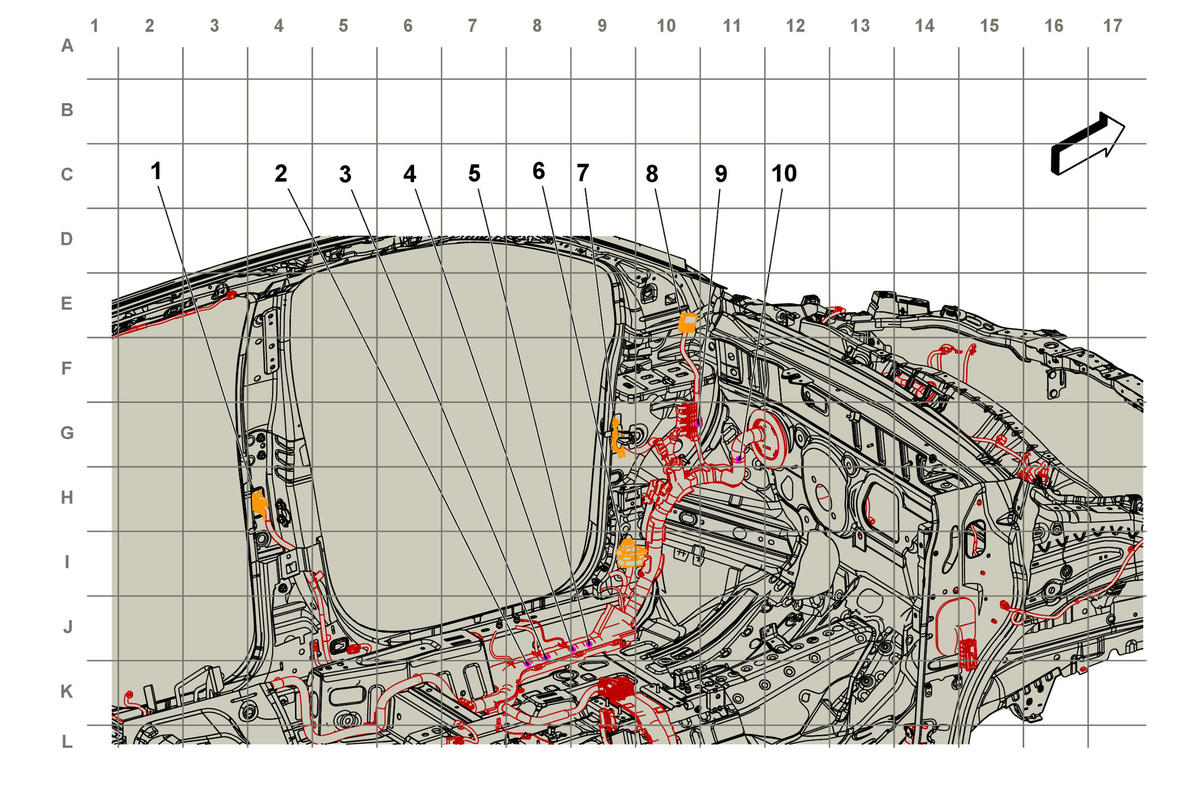

Body Harness Routing - Left Front of Passenger Compartment (Buick)
Body Harness Routing - Left Front of Passenger Compartment (Buick)
| Harness Name | Callout |
|---|---|
| X700 Left Rear Door to Body Wiring Harness | 1 |
| J326 Body Harness | 2 |
| J230 Body Harness | 3 |
| J233 Body Harness | 4 |
| J225 Body Harness | 5 |
| X200 Instrument Panel Wiring Harness to Body Wiring Harness | 6 |
| X500 Driver Door to Body Wiring Harness | 7 |
| X208 Roof Wiring Harness to Body Wiring Harness | 8 |
| J331 Body Harness | 9 |
| J330 Body Harness | 10 |
