Body Harness Routing - Center of Passenger Compartment (Buick)
 Courtesy of GENERAL MOTORS COMPANY
|

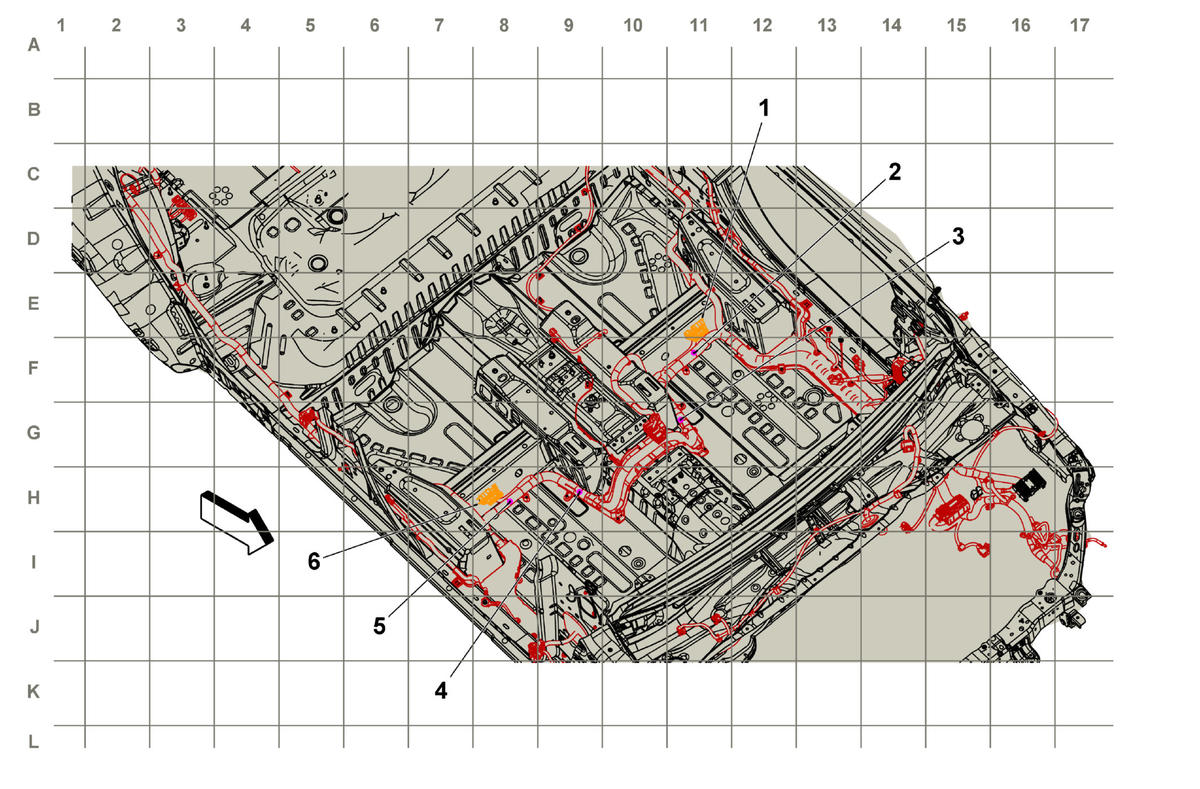

Body Harness Routing - Center of Passenger Compartment (Buick)
| Harness Name |
Callout |
| X301 Body Wiring Harness to Driver Seat |
1 |
| J328 Body Harness |
2 |
| J317 Body Harness |
3 |
| J329 Body Harness |
4 |
| J330 Body Harness |
5 |
| X302 Body Wiring Harness to Passenger Seat |
6 |
