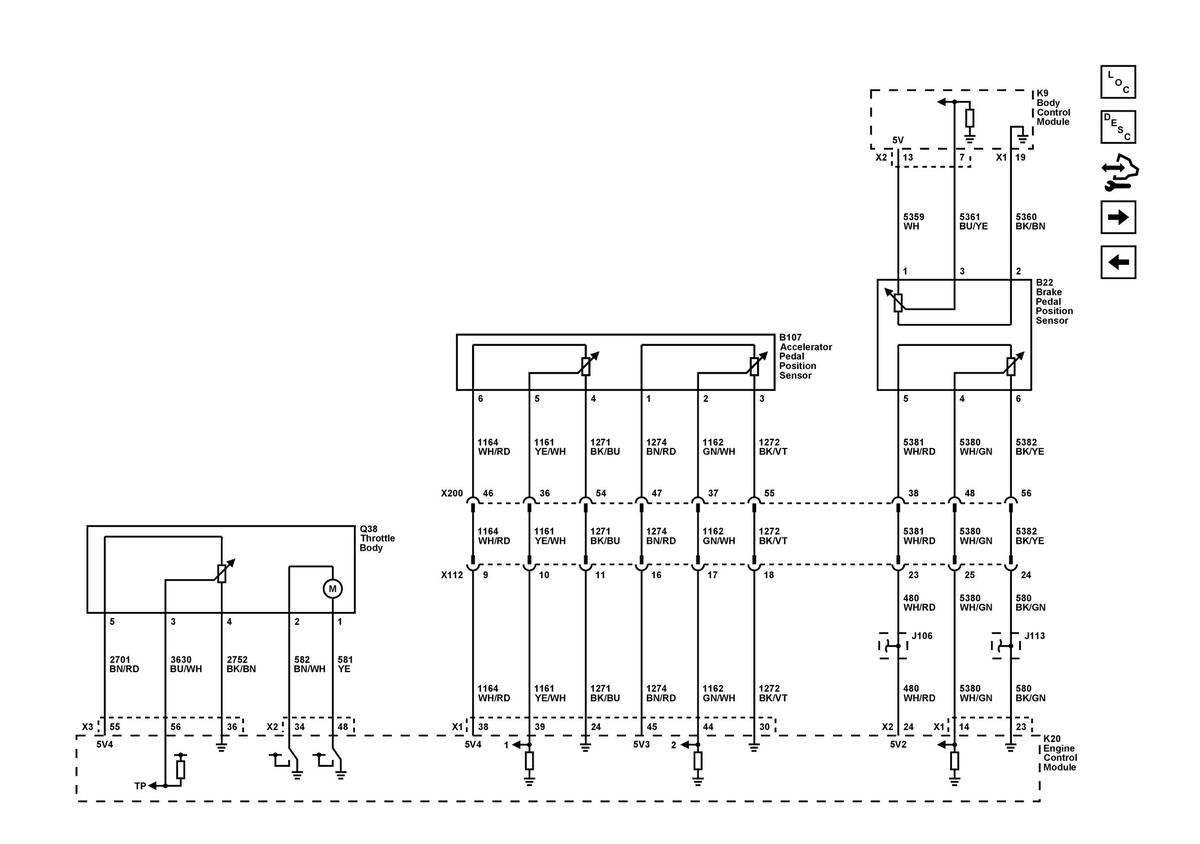

Throttle Body, Accelerator Pedal Position Sensor, and Brake Pedal Position Sensor (Chevrolet)

GM5679283

Courtesy of GENERAL MOTORS COMPANY
