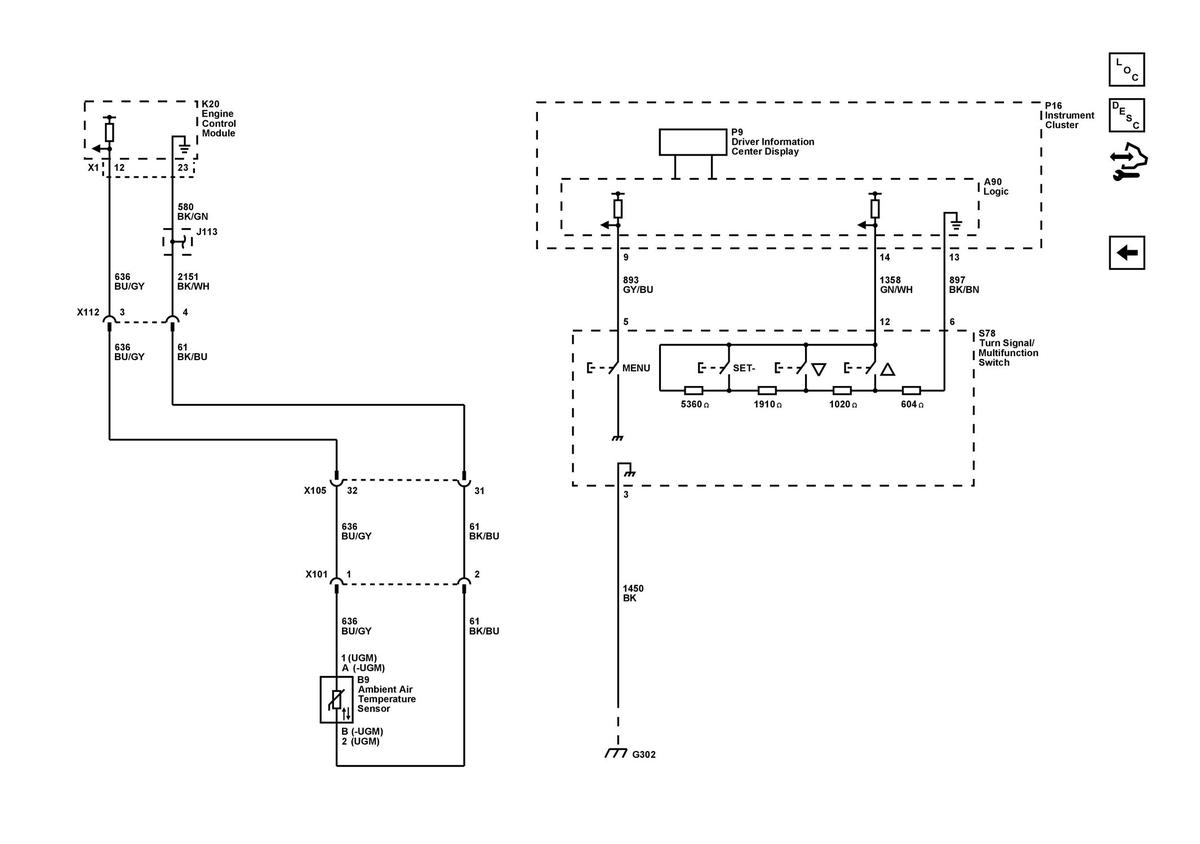

Air Temperature, Turn Signal, and Driver Information Center (Chevrolet)

GM5679257

Courtesy of GENERAL MOTORS COMPANY
