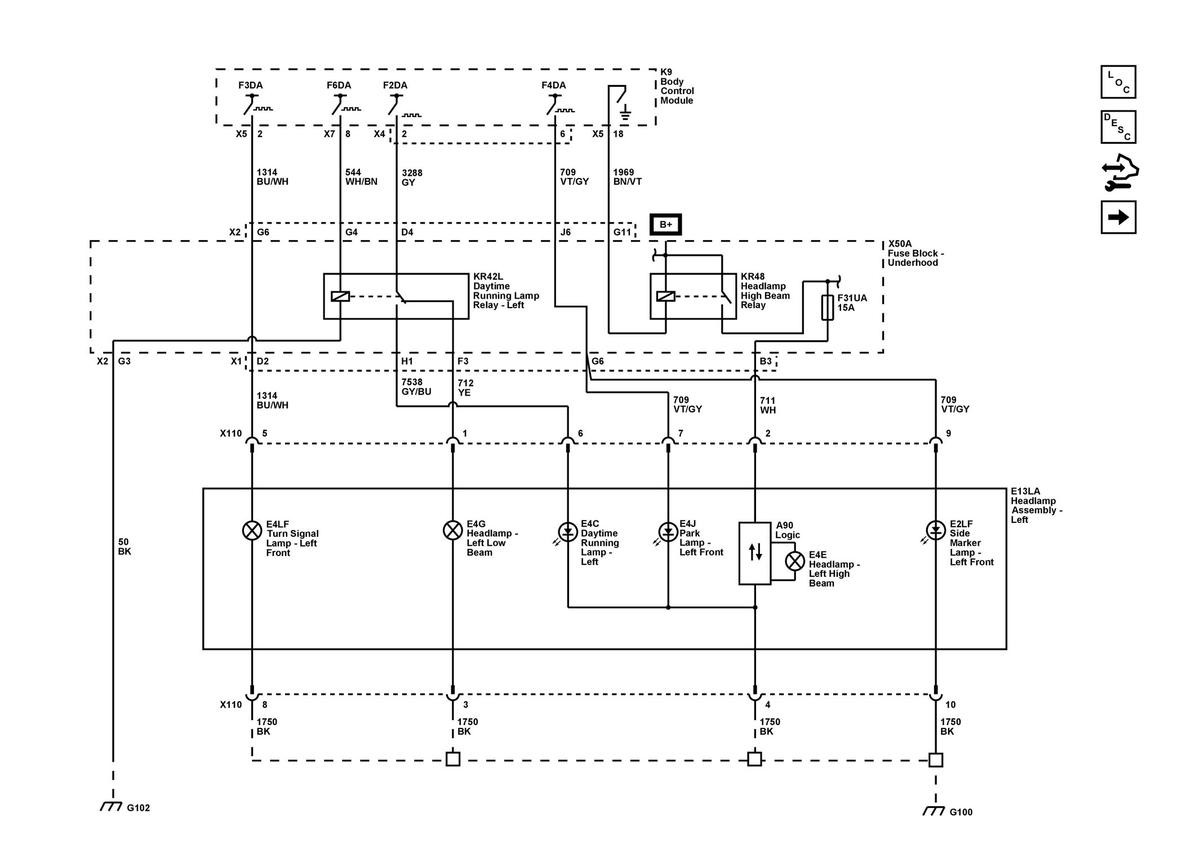

Left Front Headlamp, Turn Signal, Marker Lamp, Park Lamp, and Daytime Running Lamp (Chevrolet with SBV)

GM5679223

Courtesy of GENERAL MOTORS COMPANY
