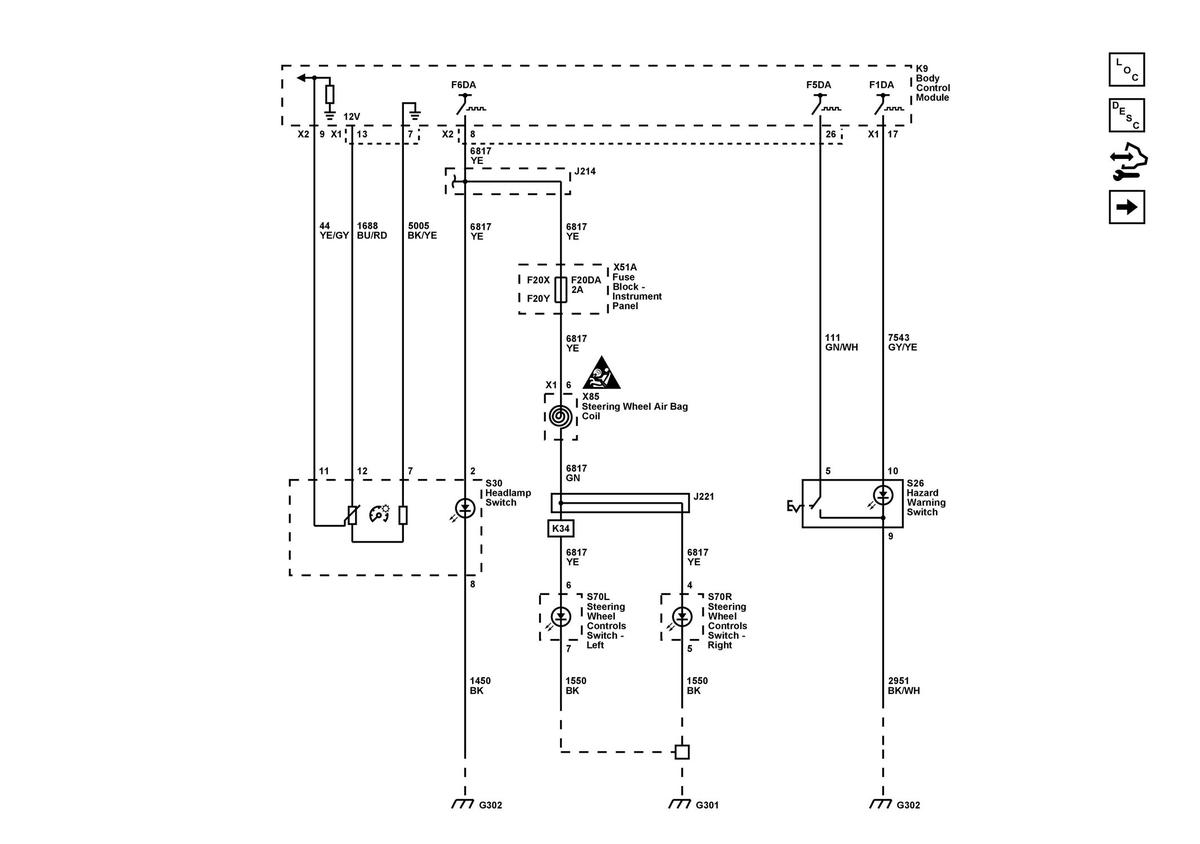

Headlamp, Instrument Panel, and Steering Wheel Switches (Chevrolet)

GM5679231

Courtesy of GENERAL MOTORS COMPANY
