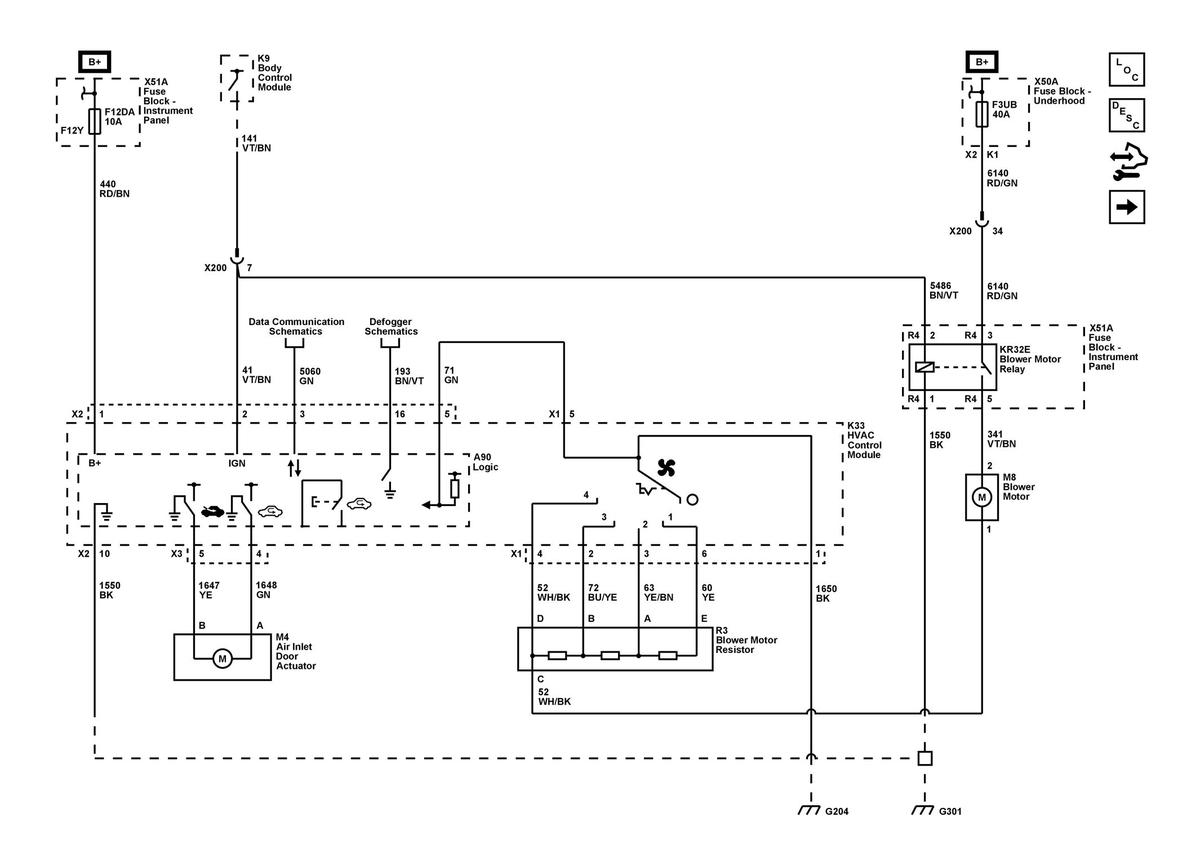

Power, Ground, Blower Motor, and Air Inlet Actuator (Chevrolet)

GM5679294

Courtesy of GENERAL MOTORS COMPANY
