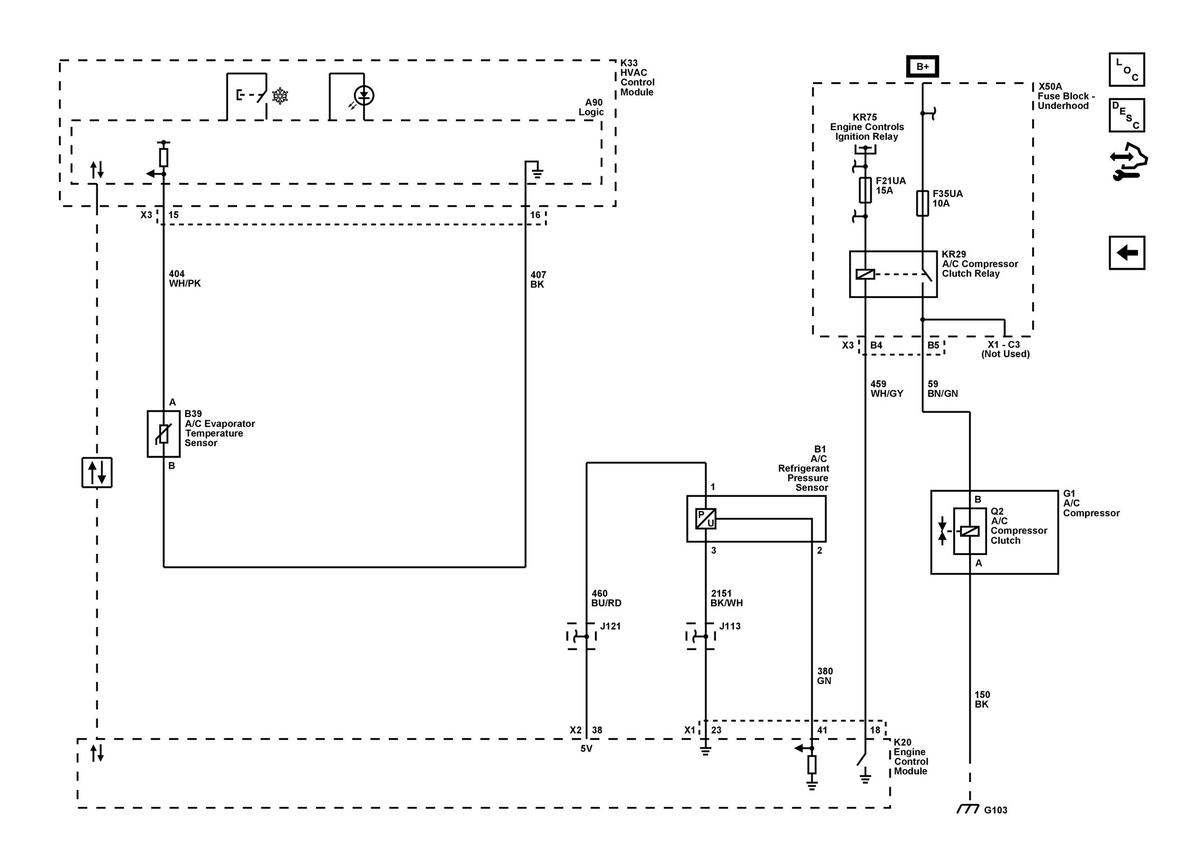

Home >> Chevrolet >> 2022 >> Trax LS, FWD >> Repair and Diagnosis >> Electrical >> Body Electrical >> Component Locations, Schematic Wiring Diagrams & Wiring Harness Routing (3 Of 3) >> Component Locations, Schematic Wiring Diagrams & Wiring Harness Routing >> Schematic Wiring Diagrams >> HVAC Schematics (Chevrolet) >> Compressor Controls (Chevrolet with C60)
