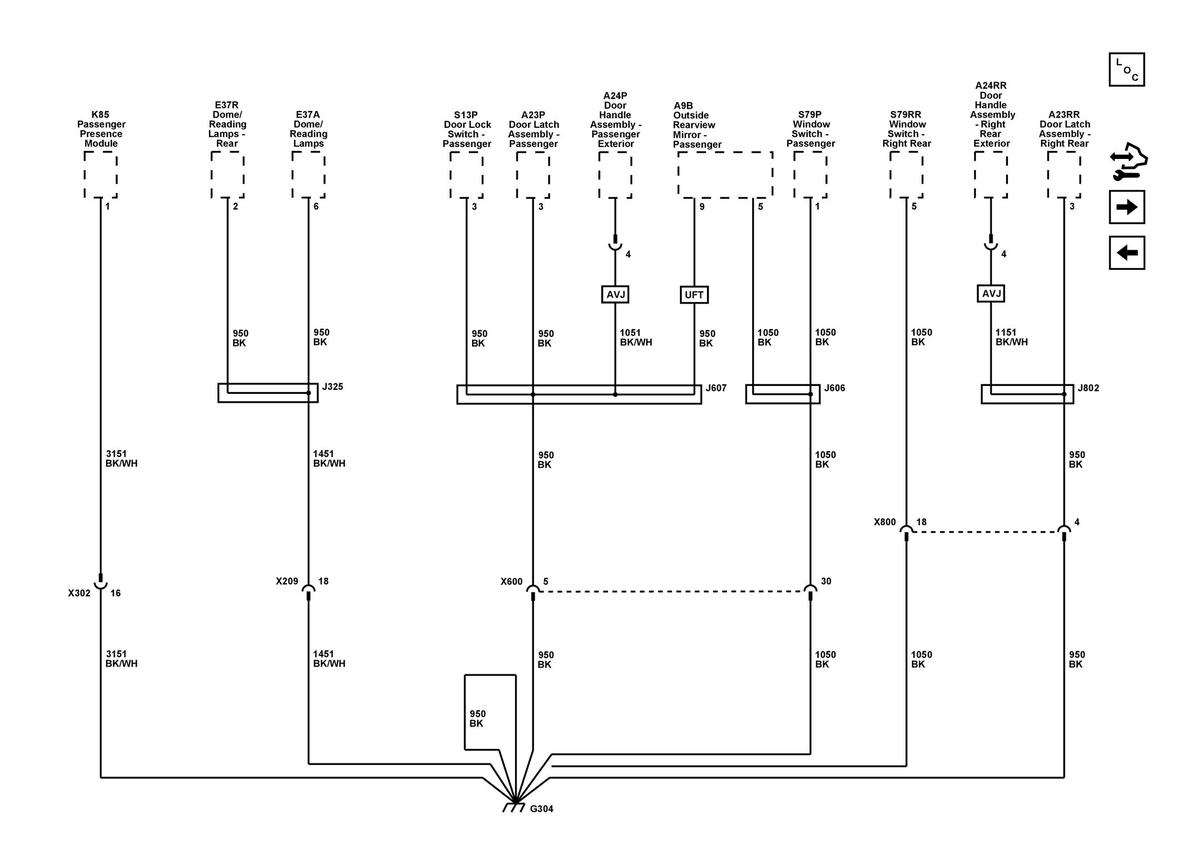

Home >> Chevrolet >> 2022 >> Trax LS, FWD >> Repair and Diagnosis >> Electrical >> Body Electrical >> Component Locations, Schematic Wiring Diagrams & Wiring Harness Routing (3 Of 3) >> Component Locations, Schematic Wiring Diagrams & Wiring Harness Routing >> Schematic Wiring Diagrams >> Ground Distribution Schematics (Chevrolet) >> G304 (Chevrolet 1 of 2)
