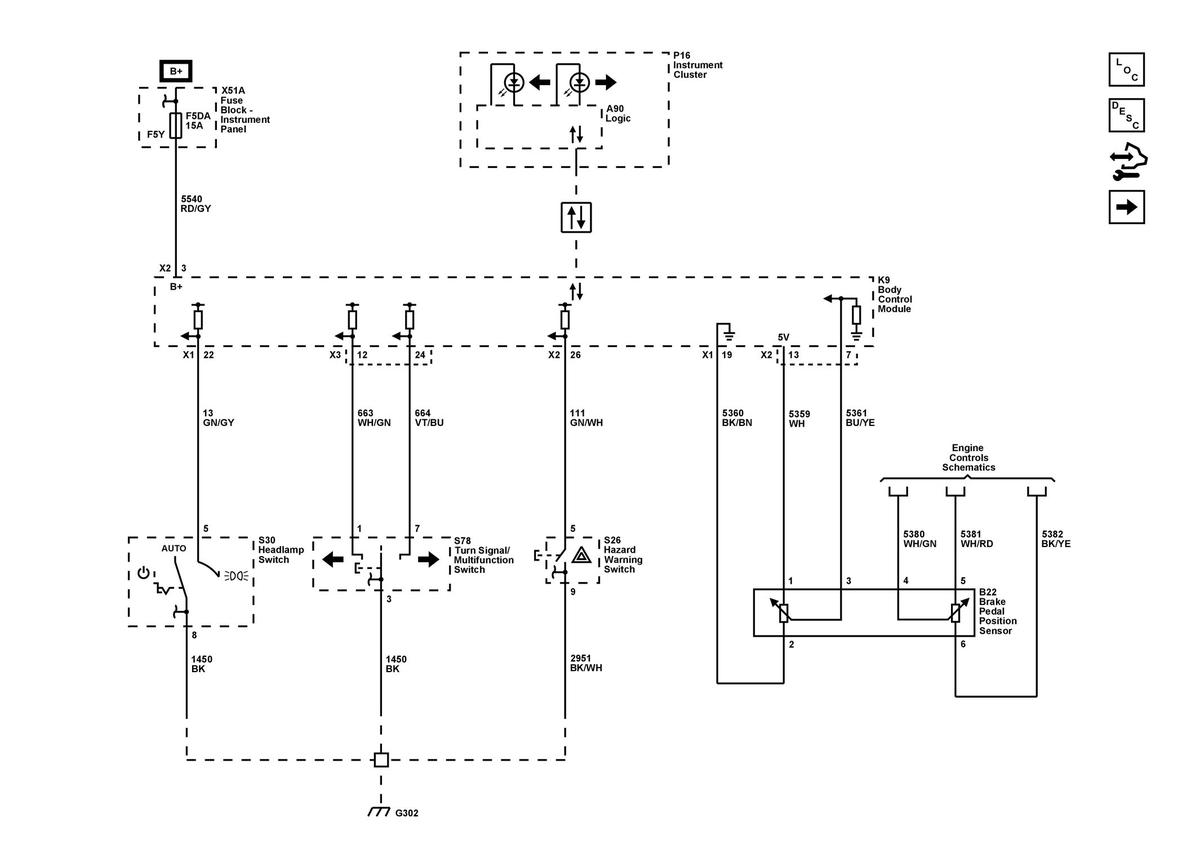

Park, Turn, Hazard, and Brake Lamps Control, and Indicators (Chevrolet)

GM5679225

Courtesy of GENERAL MOTORS COMPANY
