Body Side Upper Front Applique Replacement

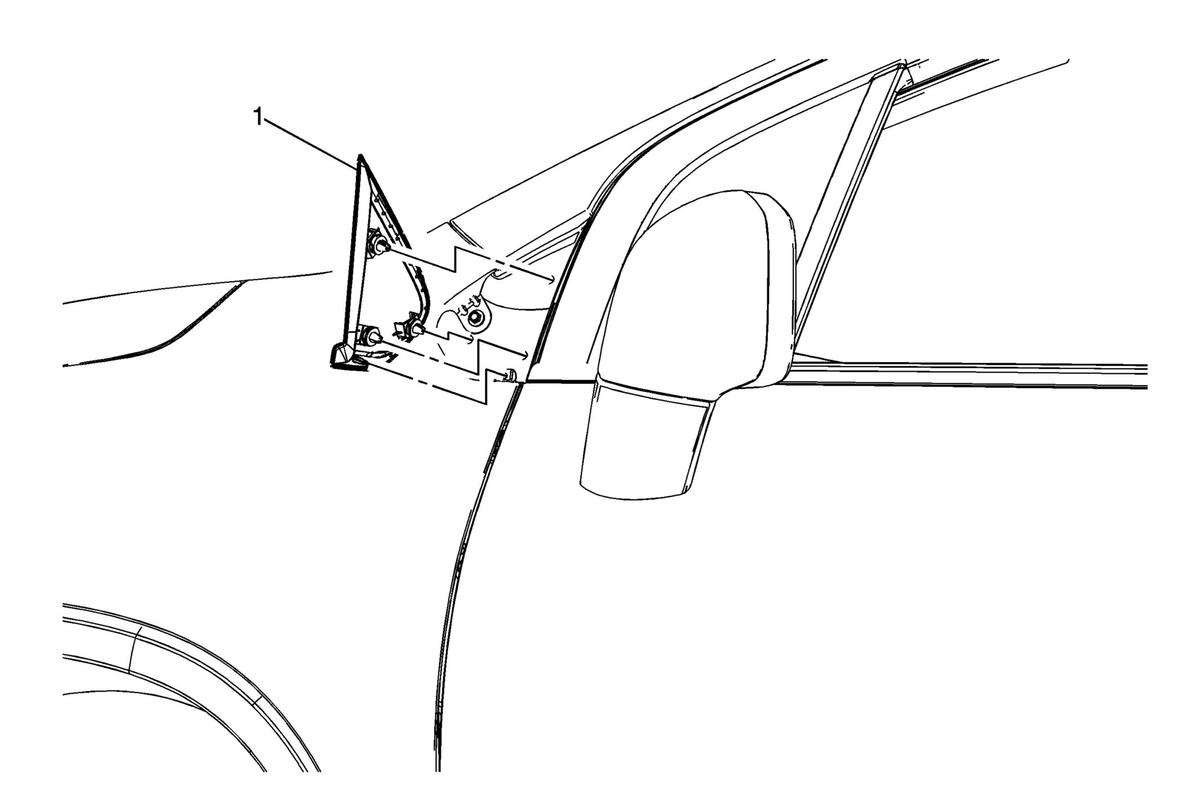

GM2844829

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

CAUTION:

Refer to Exterior Trim Emblem Removal Caution .

Preliminary Procedure Open the front door.

1

Body Side Upper Front Applique

Procedure

Using a trim type release tool, disengage the rear lower clip from the body side outer panel.
Gently pull the body side upper front applique away from the vehicle to disengage the two remaining clips.
Upon installation, using the palm of the hand secure each retainer location until fully seated to the body side outer panel and front fender.
