Liftgate Weatherstrip Replacement

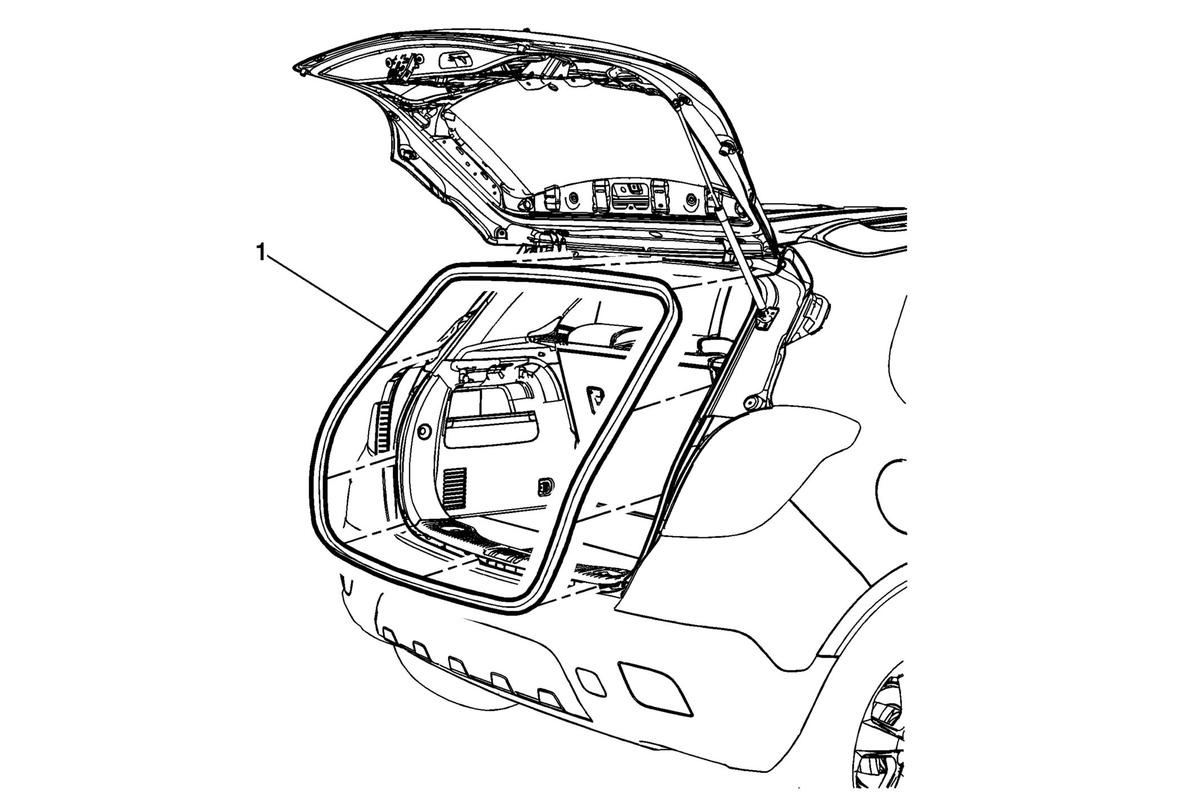

GM2760815Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Liftgate Weatherstrip

Procedure

  1. Start at the upper corner of the rear compartment opening and pull the weatherstrip away from the rear compartment opening flange.
  2. Position the weatherstrip to the upper corner of the rear compartment opening flange.
  3. Working downward along the flange, install the weatherstrip to the rear compartment opening flange ensuring that the weatherstrip is fully seated in the corners, using a rubber mallet.
