Removal Procedure

  1. GM2910027Courtesy of GENERAL MOTORS COMPANY

    Power Brake Booster - Remove - Power Vacuum Brake Booster Replacement

  2. GM2791536Courtesy of GENERAL MOTORS COMPANY

    Heater Outlet Hose (2) - Disconnect - Heater Outlet Hose Replacement

  3. GM2887529Courtesy of GENERAL MOTORS COMPANY

    Heater Inlet Hose (2) - Disconnect - Heater Inlet Hose Replacement

  4. GM2887645Courtesy of GENERAL MOTORS COMPANY

    Air Conditioning Evaporator Hose Assembly (3) - Remove - Air Conditioning Evaporator Hose Replacement

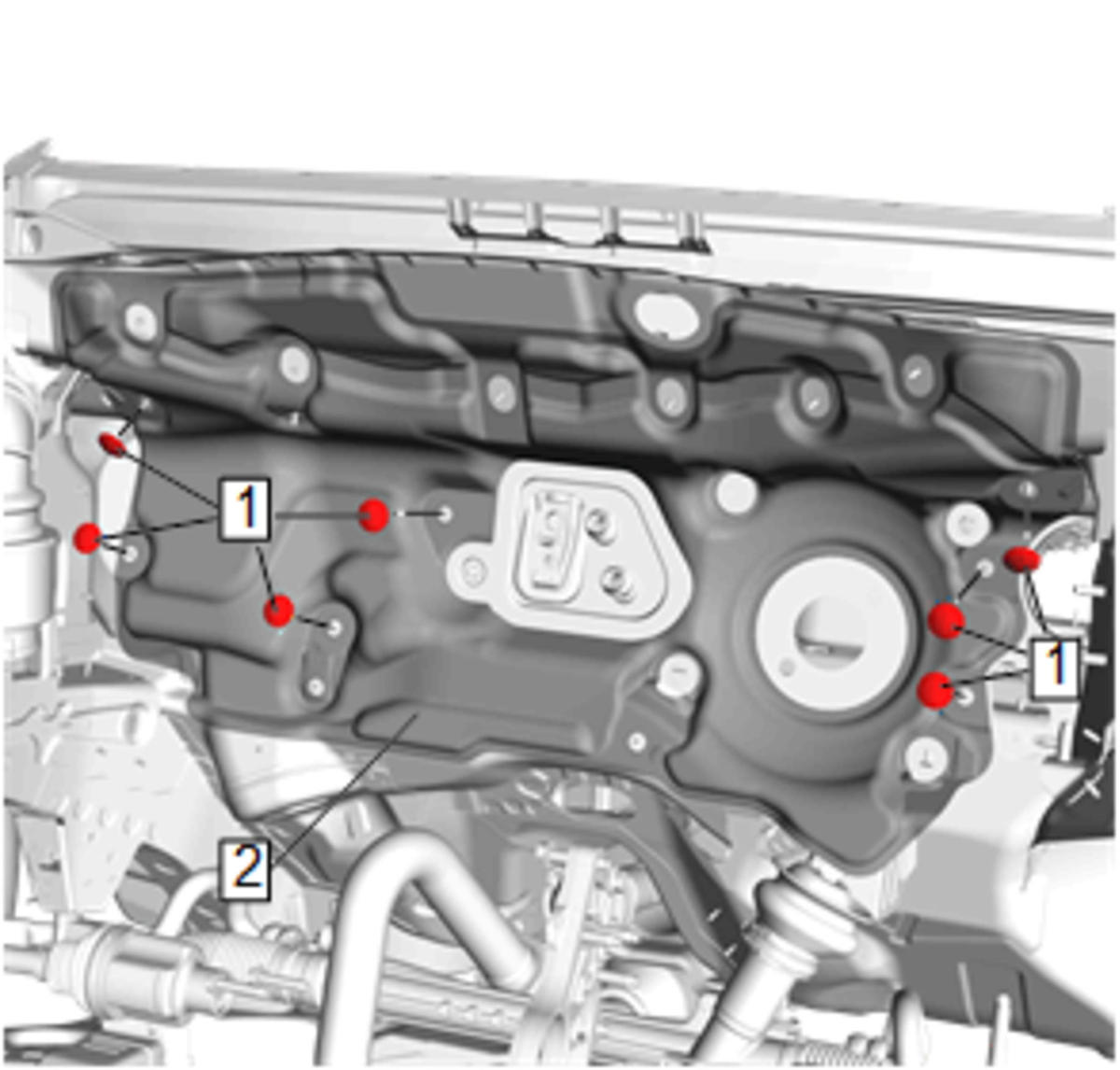

  5. GM5001251Courtesy of GENERAL MOTORS COMPANY

    Dash Panel Outer Insulator Retainer (1) - Remove [7x]

  6. Remove the electrical cable from the dash panel outer insulator.
  7. Dash Panel Outer Insulator (2) - Remove
