Air Inlet Grille Panel Extension Replacement
Courtesy of GENERAL MOTORS COMPANY

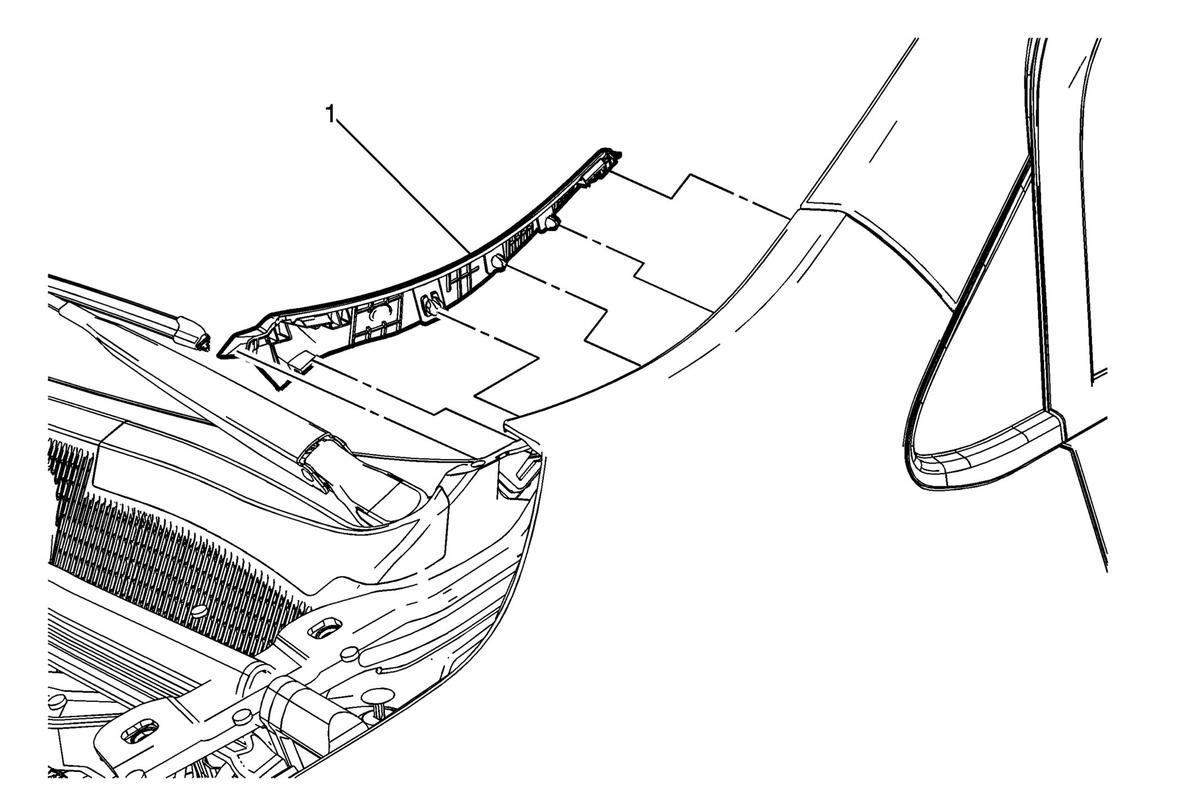

Callout
Component Name
1
Air Inlet Grille Panel Extension
Procedure
Grasp the air inlet grille panel extension and disengage the retainers from the top edge of the fender and end edge of the air inlet grille panel.
