Front Headlamp Replacement (T4L, Buick)

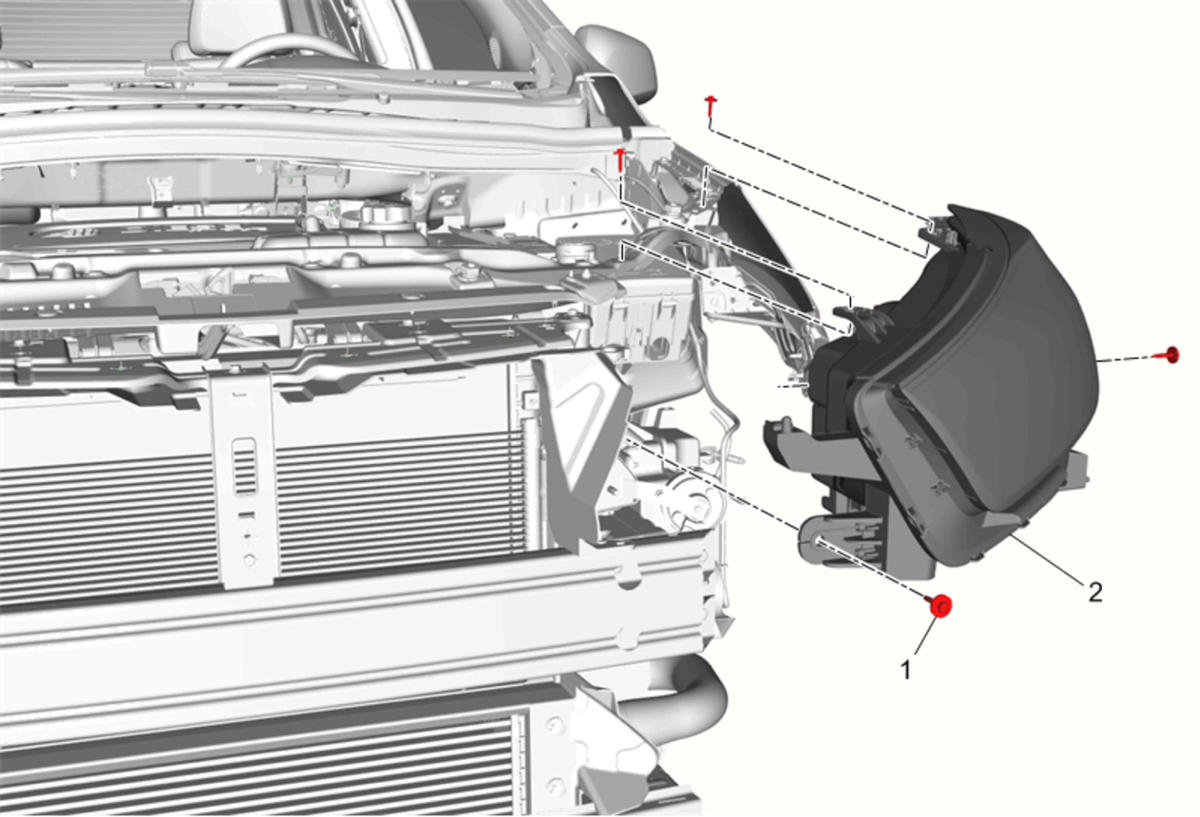

GM4358118Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Front Bumper Fascia Replacement (Buick)
1 Headlamp Screw [4x]
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
2 Headlamp

Procedure

  1. Disconnect the electrical connector.
  2. Aim the headlamps after replacement. Front Headlamp Aiming
