Front Headlamp Replacement (SBM)

Courtesy of GENERAL MOTORS COMPANY

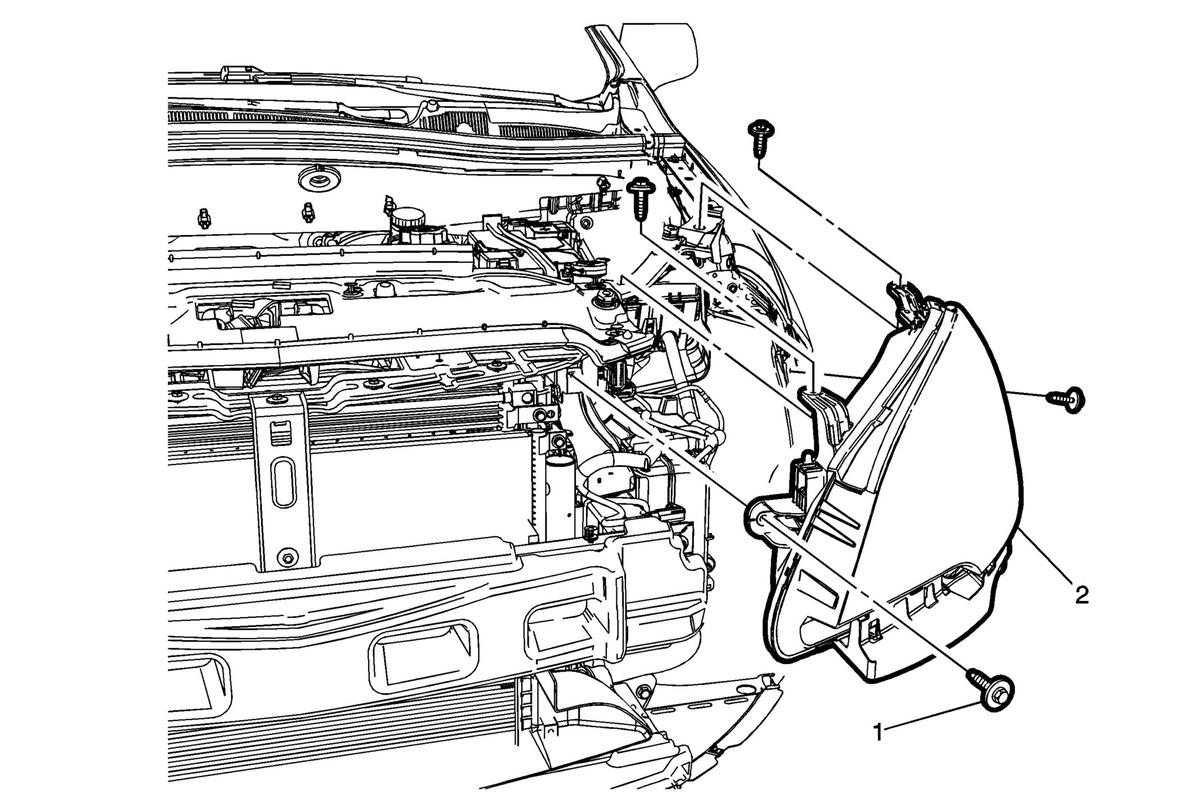

Callout	Component Name
Preliminary Procedure Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement (Chevrolet) , or Front Bumper Fascia Replacement (Buick) .
1	Headlamp Assembly Screw (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Headlamp Assembly Procedure Disconnect the electrical connector and remove the headlamp assembly. Aim the headlamps after replacement. Refer to Front Headlamp Aiming .

Callout

Component Name

Headlamp Assembly Screw (Qty: 4)

CAUTION:

Tighten
2.5 N.m (22 lb in)

Headlamp Assembly

Procedure
