Installation Procedure

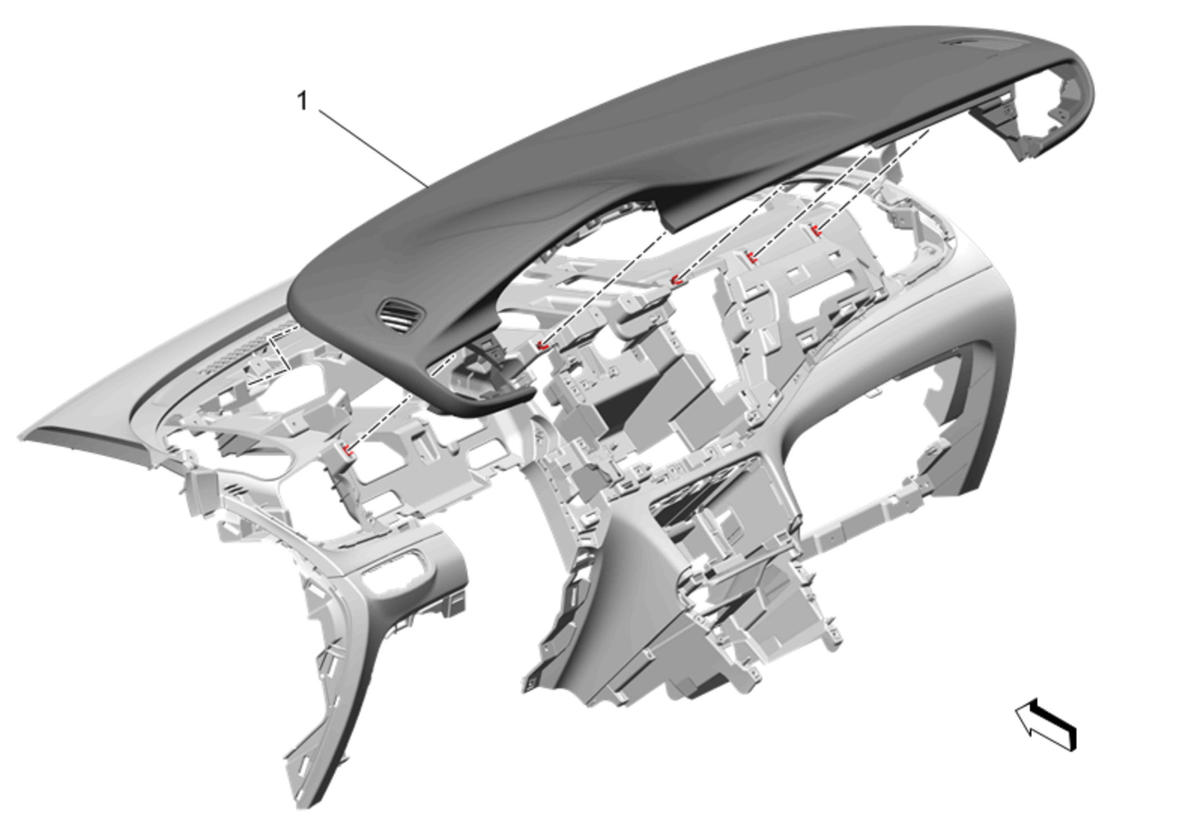

  1. GM4377784Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Upper Trim Panel (1) - Install

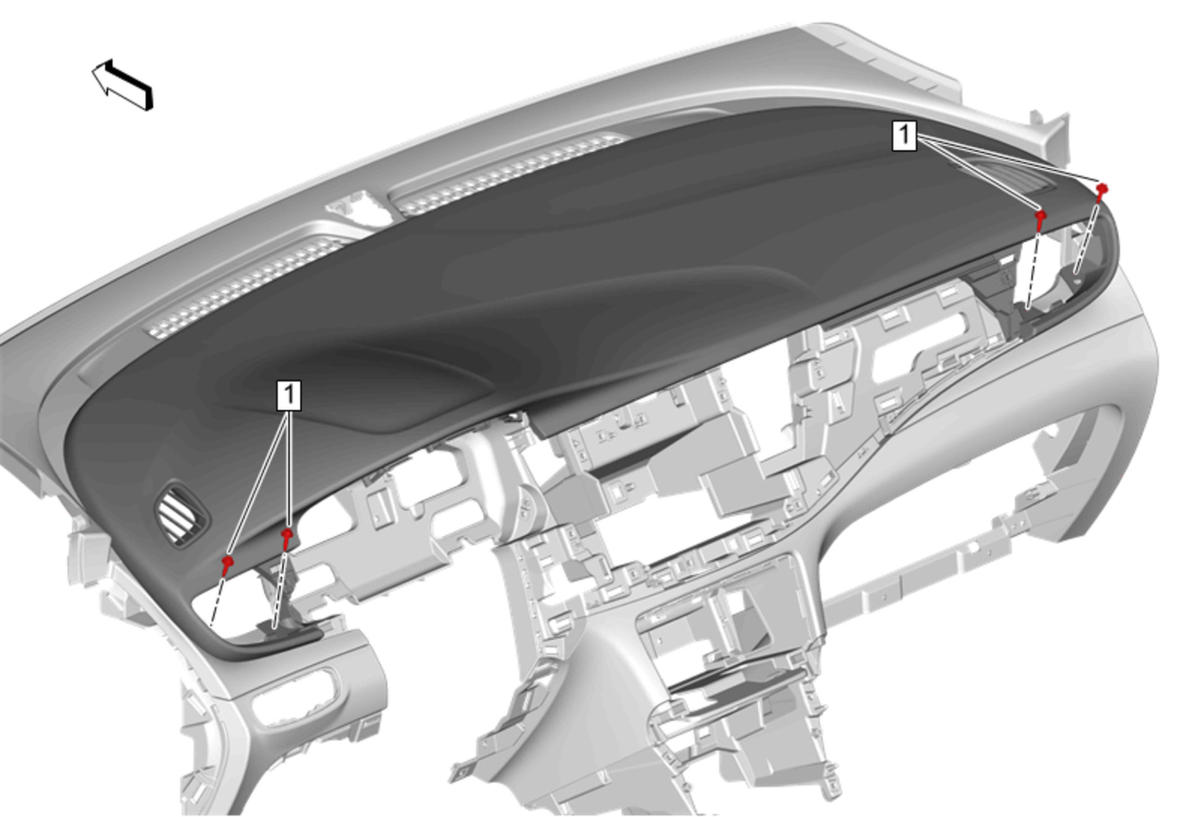

  2. GM4377782Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Instrument Panel Retainer Bolt (1) - Install and tighten [4x] 2.5 N.m (22 lb in)

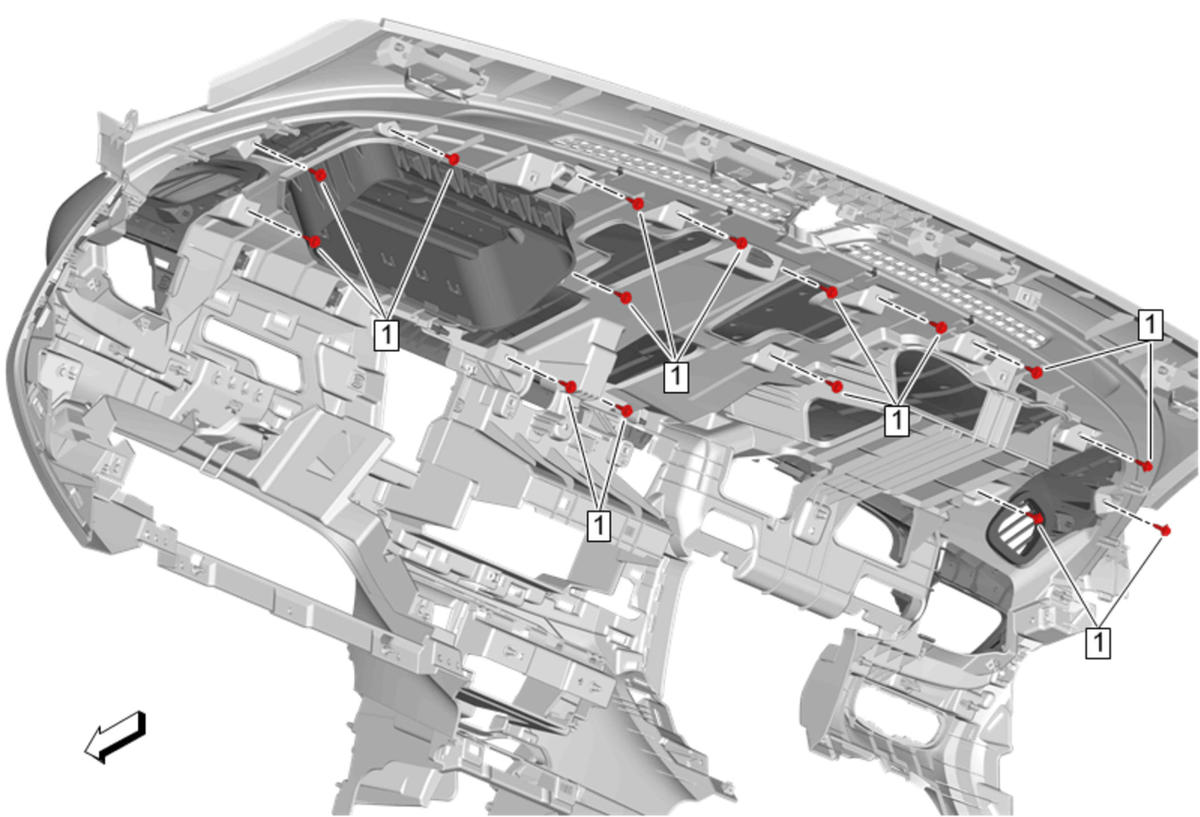

  3. GM4377781Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Retainer Bolt (1) - Install and tighten [15x] 2.5 N.m (22 lb in)

  4. Airbag Instrument Panel Module - Install - Airbag Instrument Panel Module Replacement
  5. Side Window Defogger Outlet Duct - Right Side - Install - Side Window Defogger Outlet Duct Replacement - Right Side (Buick)
  6. Side Window Defogger Outlet Duct - Left Side - Install - Side Window Defogger Outlet Duct Replacement - Left Side (Buick)
  7. Windshield Defroster Outlet Duct - Install - Windshield Defroster Outlet Duct Replacement (Buick)
