Removal Procedure

  1. Steering Column Upper Trim Cover - Remove - Steering Column Upper Trim Cover Replacement (Chevrolet, With BTM) , or Steering Column Upper Trim Cover Replacement (Chevrolet, Without BTM)

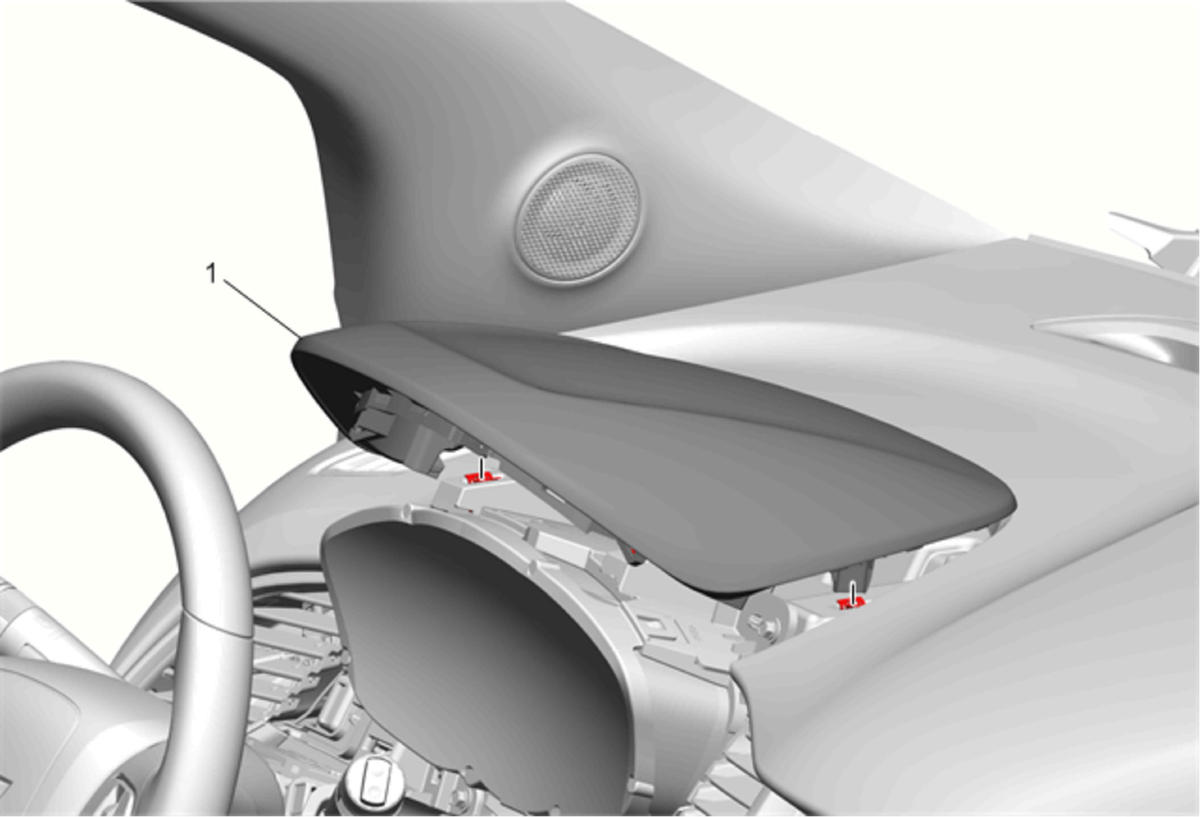

  2. GM4521835Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Instrument Cluster Hood (1) - Release

  3. Lift up from the rear edge of the hood first.

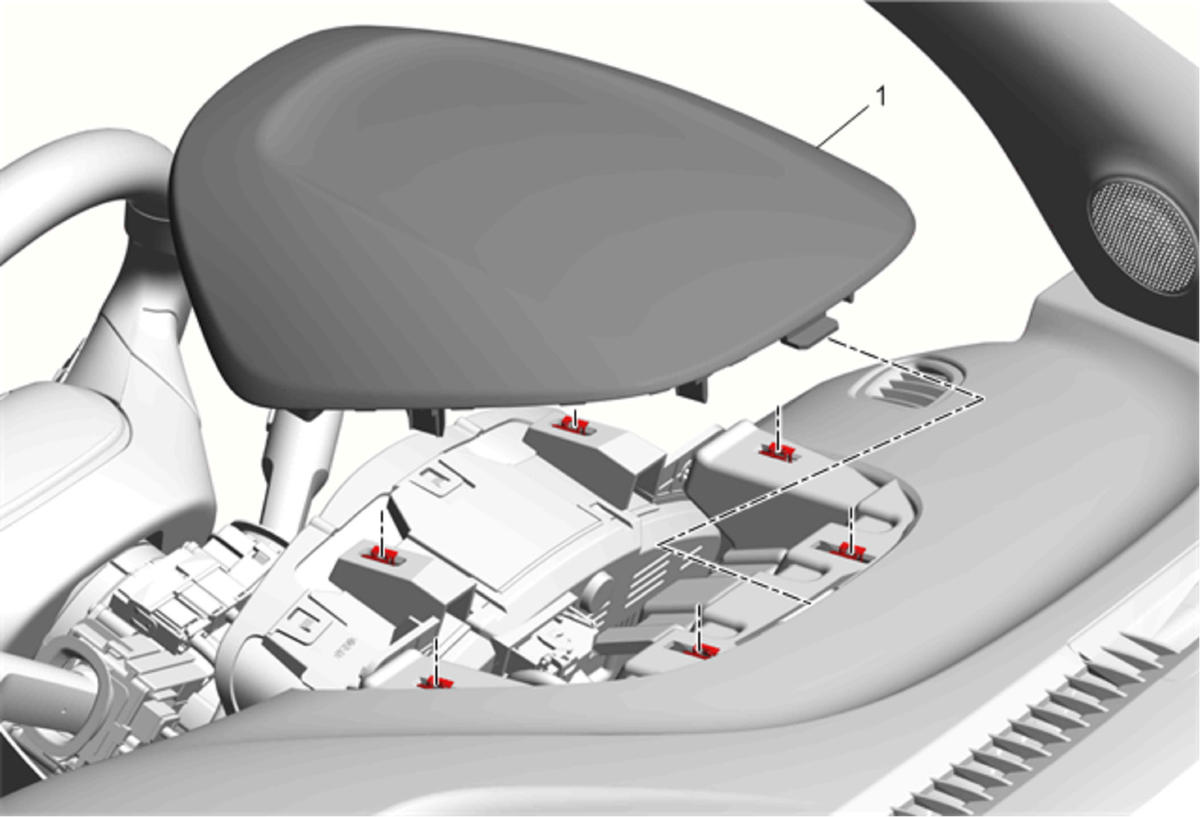

  4. GM4521836Courtesy of GENERAL MOTORS COMPANY

    After the retainer clips have been released, carefully pull the hood (1) rearward to disengage the tab.

  5. Instrument Panel Instrument Cluster Hood (1) - Remove
