Installation Procedure

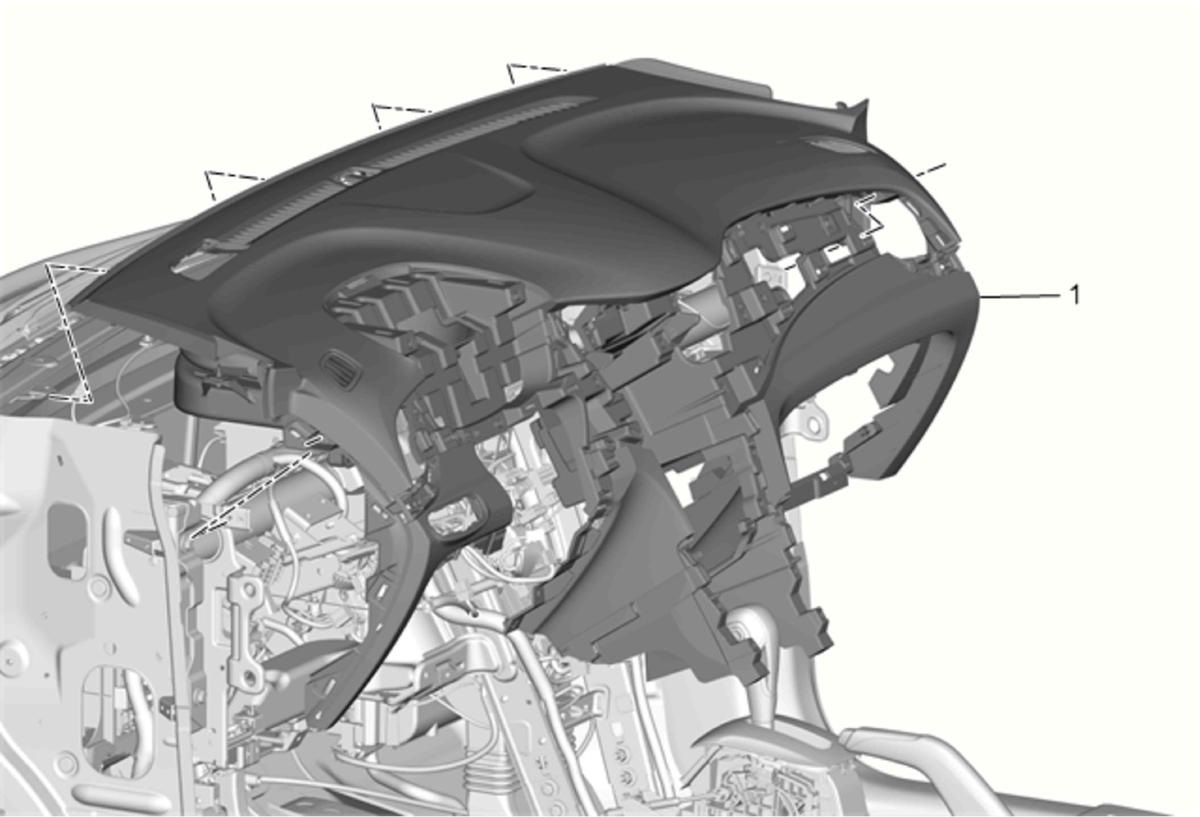

  1. GM4508324Courtesy of GENERAL MOTORS COMPANY

    With the aid of an assistant, load the instrument panel (1) to the instrument panel tie bar to the locator pins.

  2. Reposition the instrument panel wiring harness into the vehicle position as was noted in the removal and connect the fasteners securing the instrument panel wiring harness to the instrument panel (1).

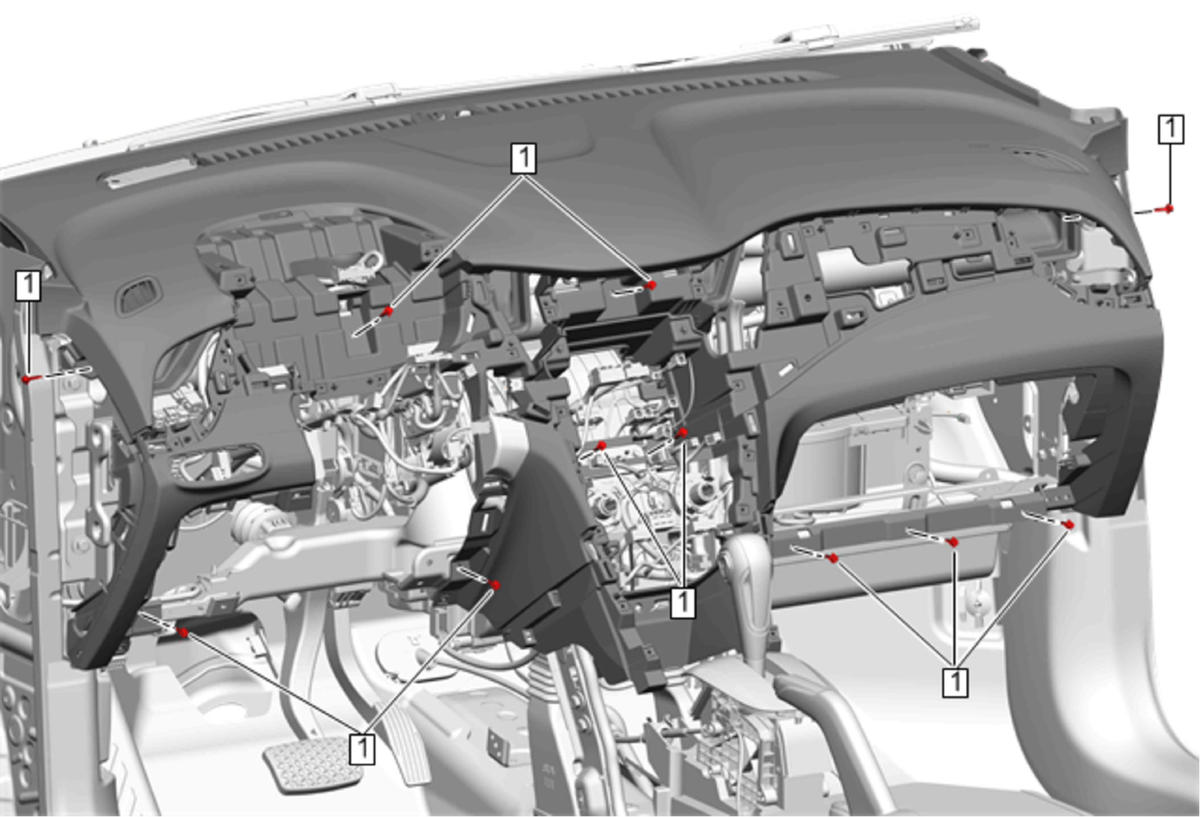

  3. GM4508317Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Instrument Panel Bolt (1) - Install and tighten [11x] 2.5 N.m (22 lb in)

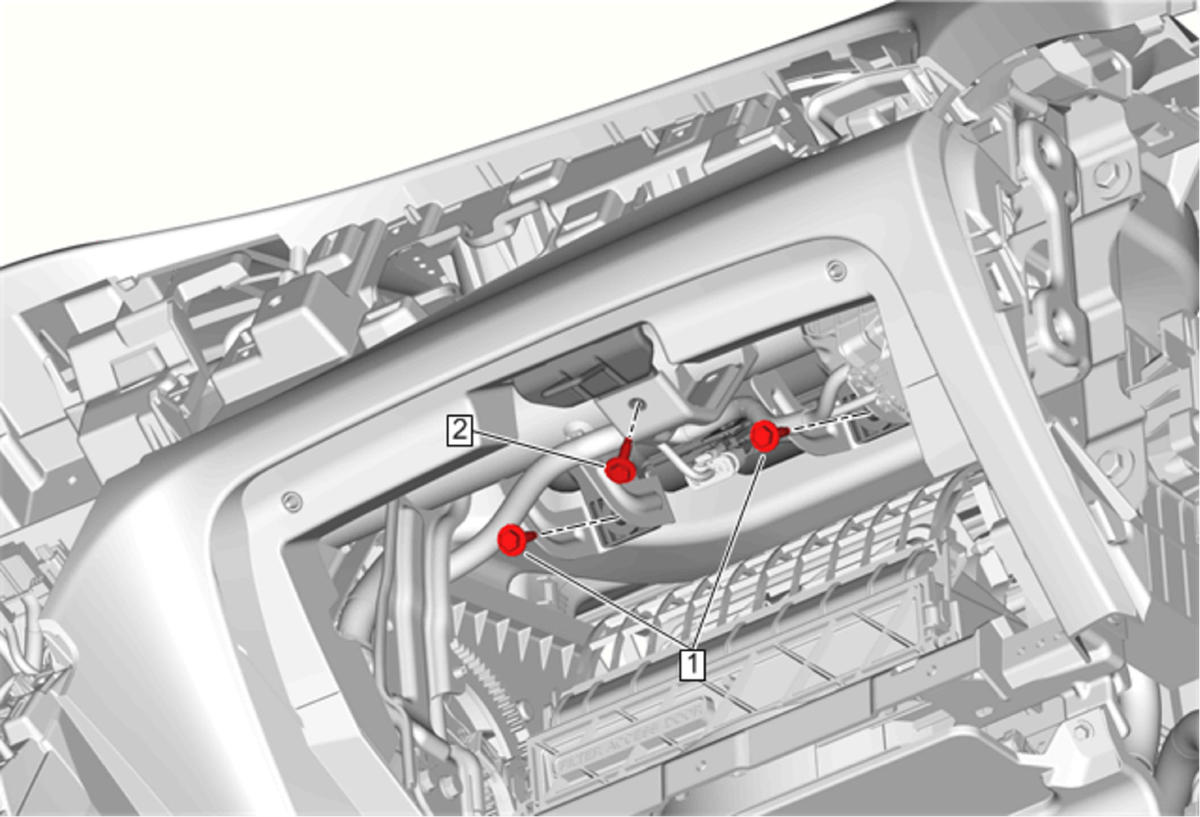

  4. GM4508319Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Airbag Bolt (1) - Install and tighten [2x] 9 N.m (80 lb in)

  5. Instrument Panel Compartment Door Latch Striker Bolt (2) - Install and tighten 9 N.m (80 lb in)
  6. Connect the electrical connector.

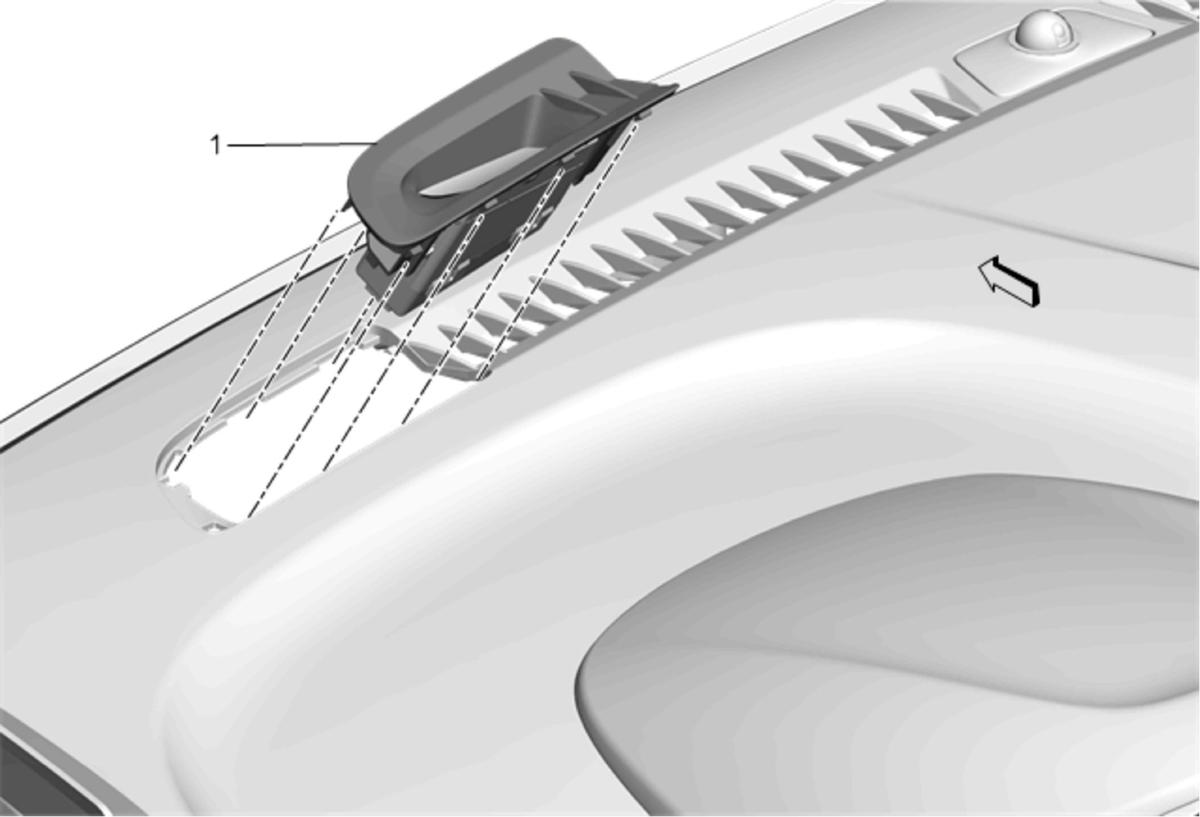

  7. GM4502046Courtesy of GENERAL MOTORS COMPANY

    Forward Collision Alert Display Bezel (1) - Install - Forward Collision Alert Display Bezel Replacement (With UEU, Chevrolet) , or Forward Collision Alert Display Bezel Replacement (Without UEU, Chevrolet)

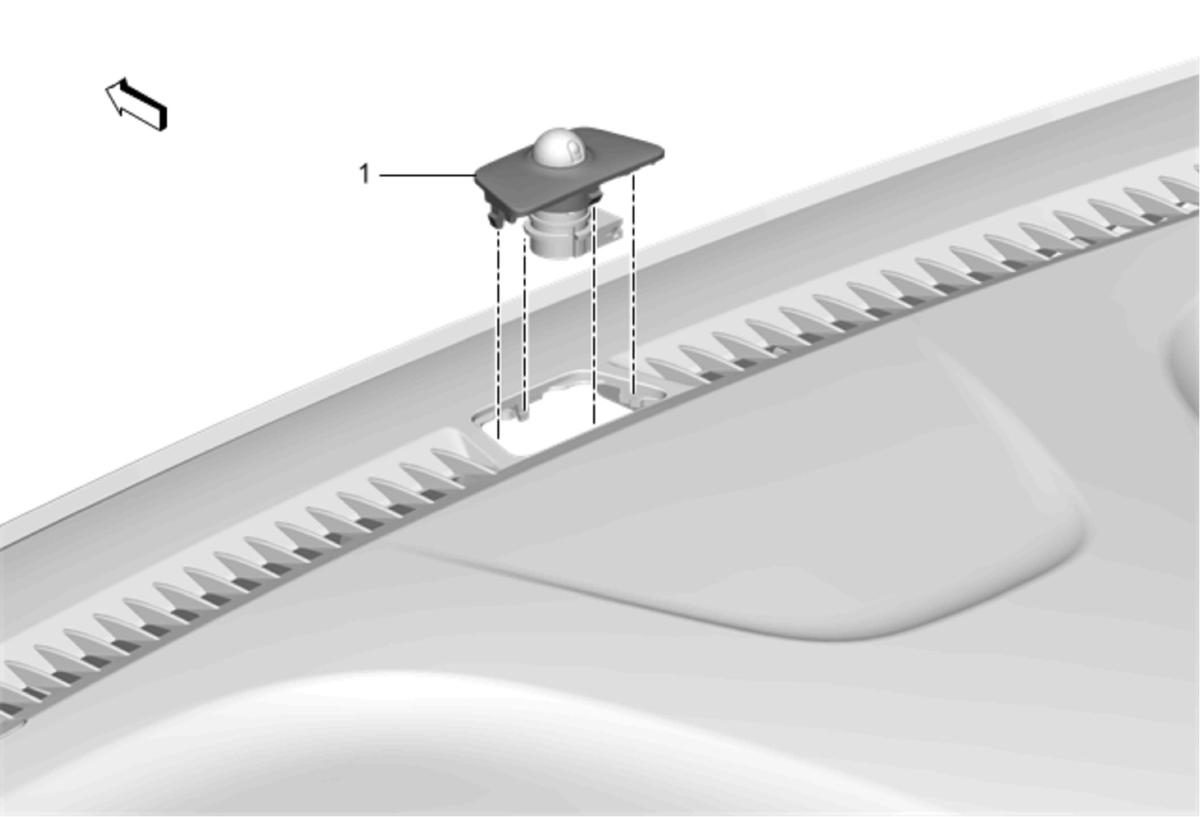

  8. GM4500357Courtesy of GENERAL MOTORS COMPANY

    Daytime Running Lamp Ambient Light Bezel (1) - Install - Daytime Running Lamp Ambient Light Bezel Replacement (Chevrolet)

  9. GM4426967Courtesy of GENERAL MOTORS COMPANY

    Headlamp Switch (1) - Install - Headlamp Switch Replacement

  10. GM4509067Courtesy of GENERAL MOTORS COMPANY

    Instrument Cluster (2) - Install - Instrument Cluster Replacement (Chevrolet)

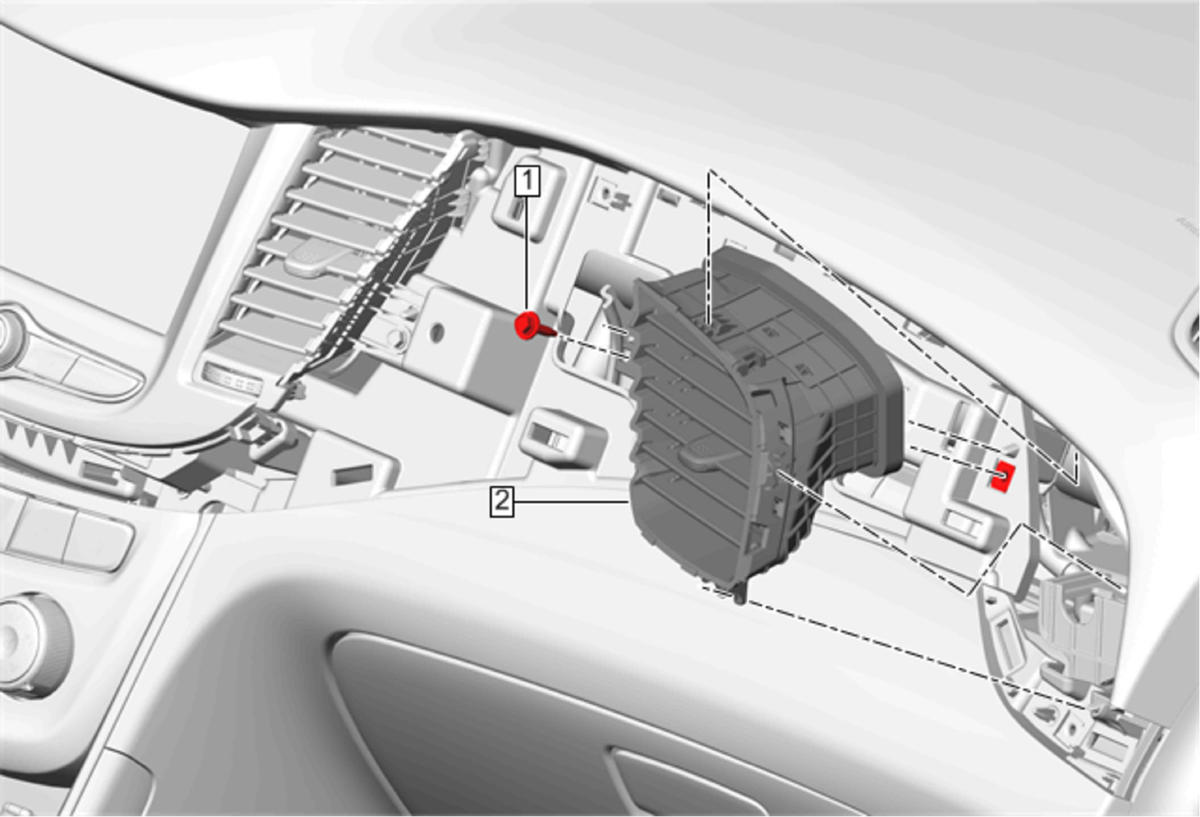

  11. GM4500103Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Outer Air Outlet - Right Side (2) - Install - Instrument Panel Outer Air Outlet Replacement - Right Side (Chevrolet)

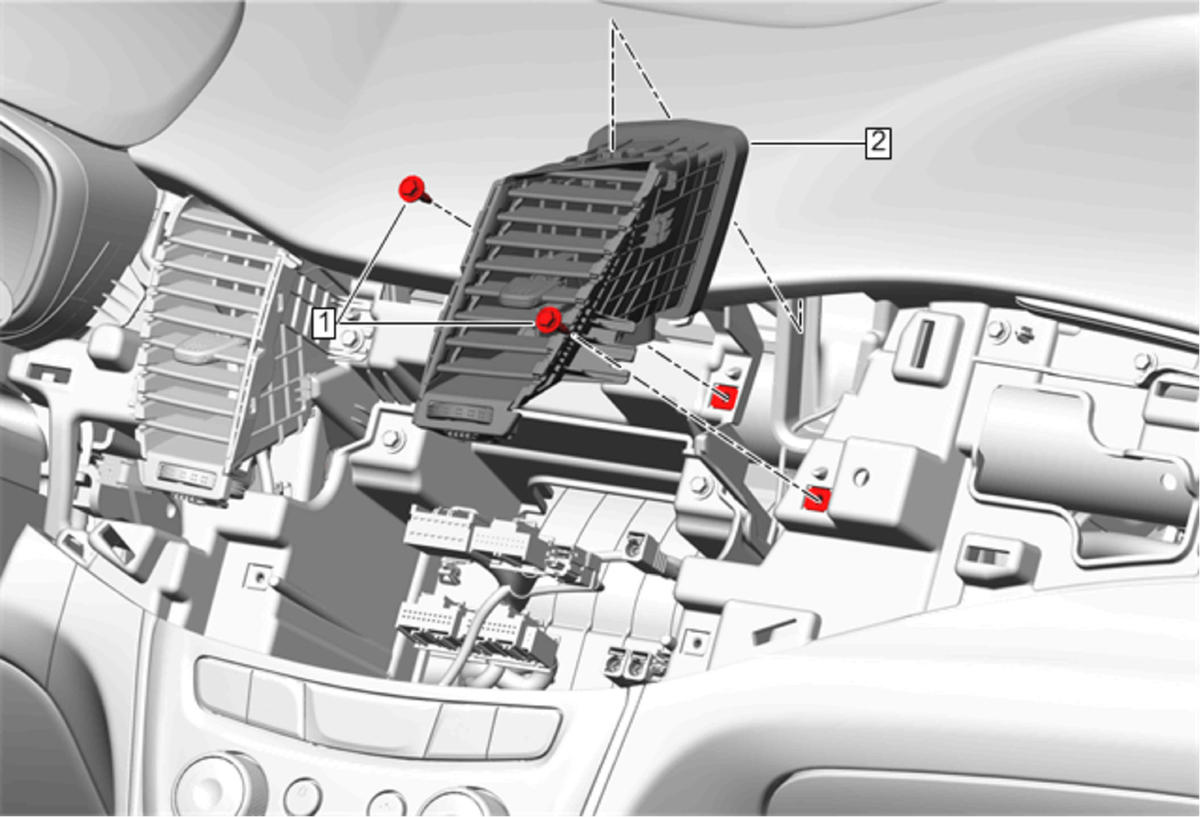

  12. GM4500100Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Center Air Outlet - Right Side (2) - Install - Instrument Panel Center Air Outlet Replacement - Right Side (Chevrolet)

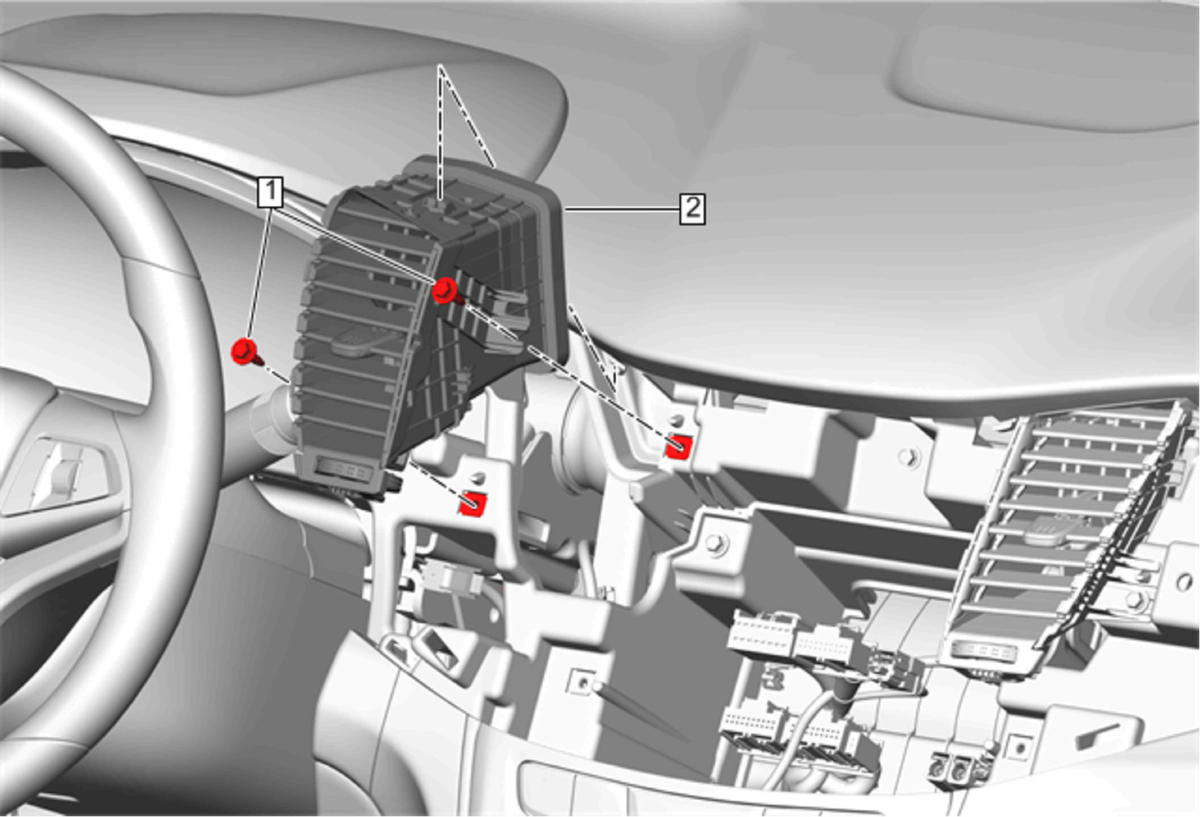

  13. GM4500099Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Center Air Outlet - Left Side (2) - Install - Instrument Panel Center Air Outlet Replacement - Left Side (Chevrolet)

  14. GM4500101Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Outer Air Outlet - Left Side (1) - Install - Instrument Panel Outer Air Outlet Replacement - Left Side (Chevrolet)

  15. GM2788249Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Compartment (2) - Install - Instrument Panel Compartment Replacement

  16. GM4491871Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Outer Trim Cover (1) - Install - Instrument Panel Outer Trim Cover Replacement (Chevrolet)

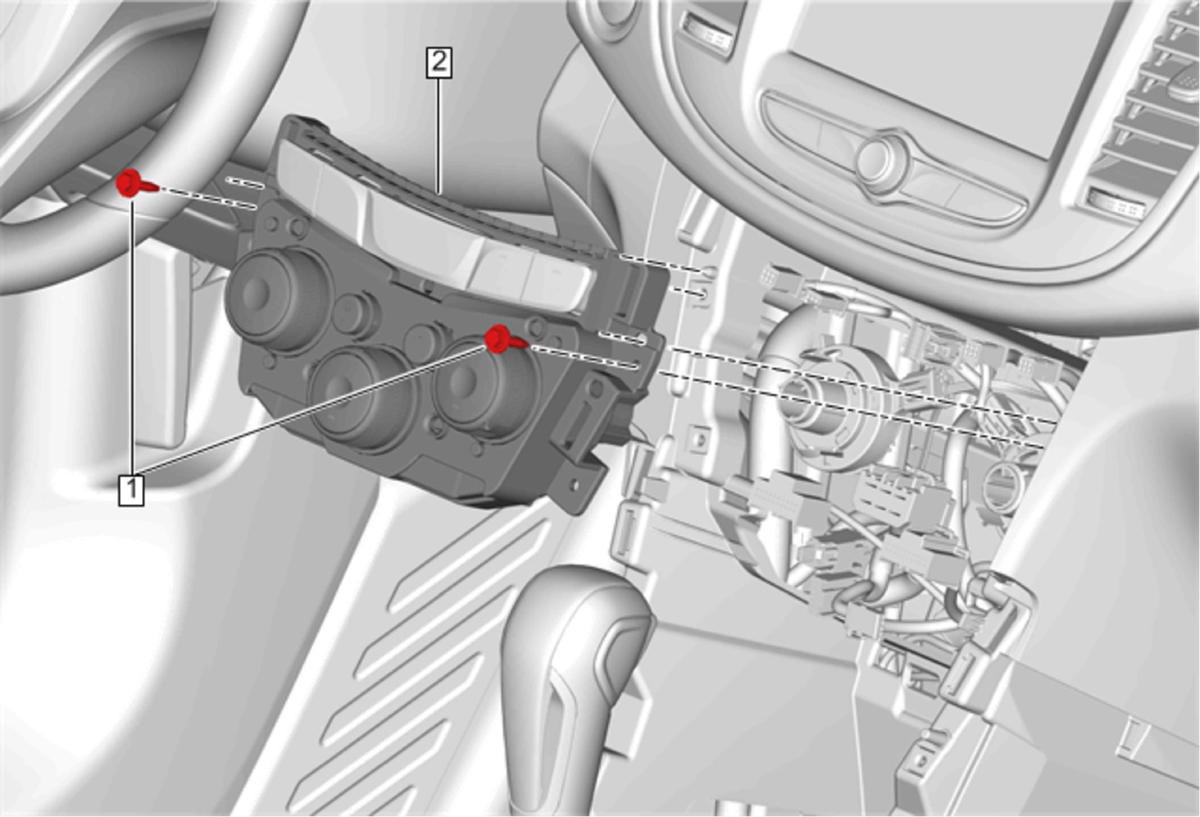

  17. GM4507330Courtesy of GENERAL MOTORS COMPANY

    Heater and Air Conditioning Control with Cable Control (2) - Install - Heater and Air Conditioning Control with Cable Control Replacement (C60)

  18. GM4491207Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console (1) - Install - Front Floor Console Replacement (Chevrolet)

  19. GM2787204Courtesy of GENERAL MOTORS COMPANY

    Windshield Garnish Molding (1) - Install - Windshield Garnish Molding Replacement (Chevrolet)

  20. Enable the SIR System. SIR Disabling and Enabling
