Installation Procedure

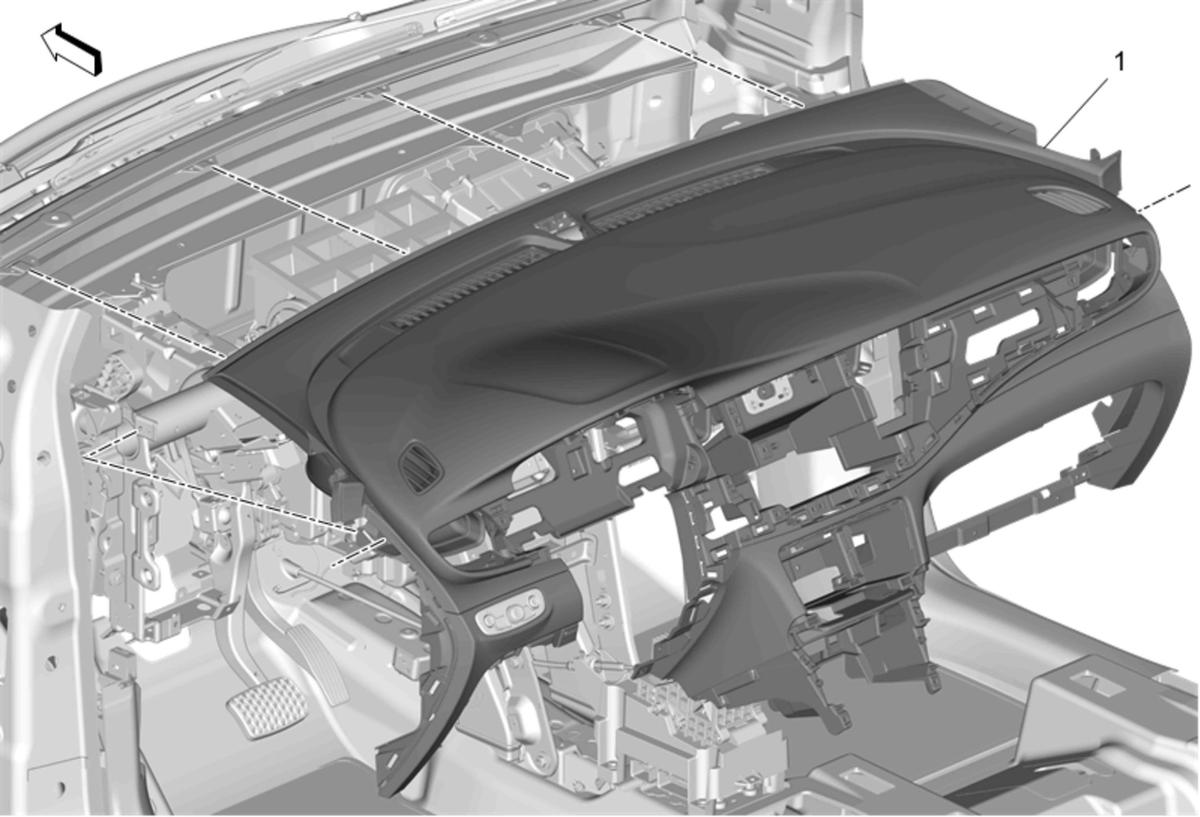

  1. GM4374743Courtesy of GENERAL MOTORS COMPANY

    With the aid of an assistant, install the instrument panel (1) to the instrument panel tie bar and the locator pins.

  2. Reposition the instrument panel wiring harness into the vehicle position as was noted in the removal and connect the fasteners securing the instrument panel wiring harness to the instrument panel (1).

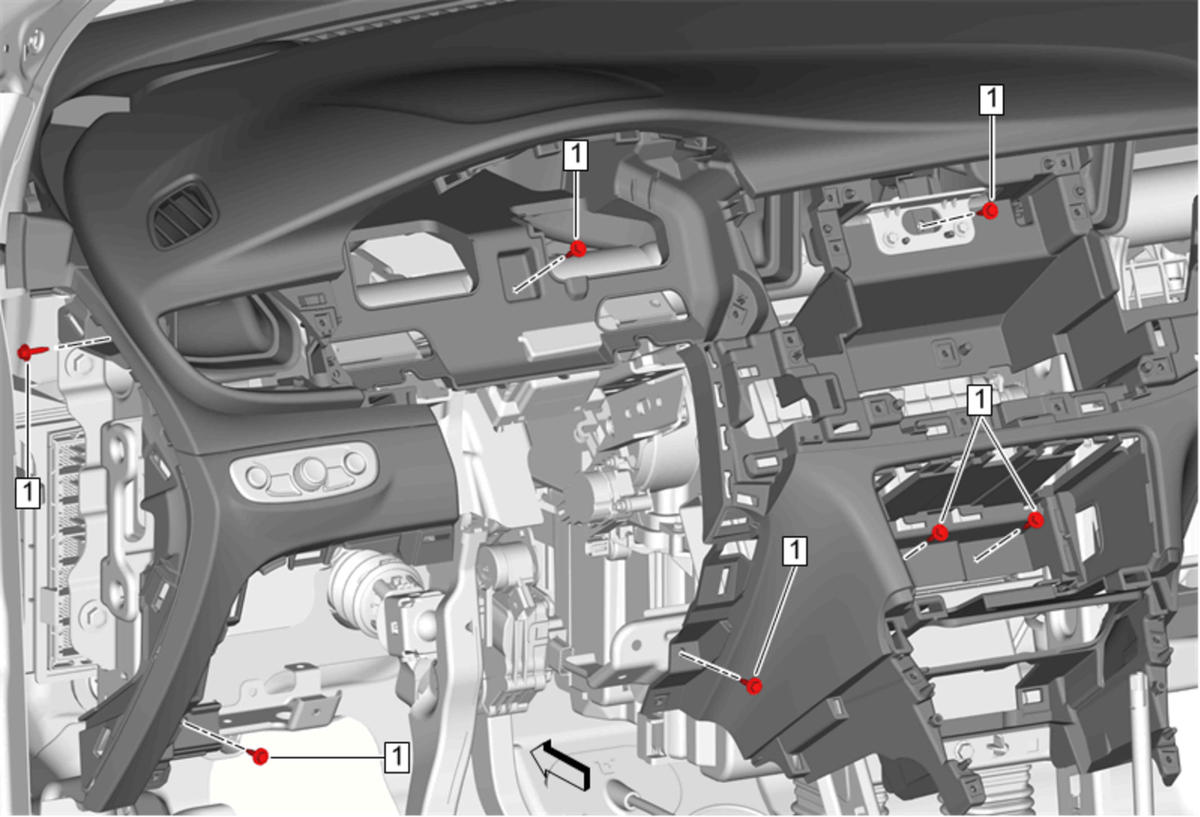

  3. GM4374742Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Instrument Panel Bolt (1) - Install and tighten [7x] 2.5 N.m (22 lb in)

  4. GM4374740Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Bolt (1) - Install and tighten [4x] 2.5 N.m (22 lb in)

  5. Instrument Panel Compartment Door Latch Striker Bolt (2) - Install and tighten 9 N.m (80 lb in)

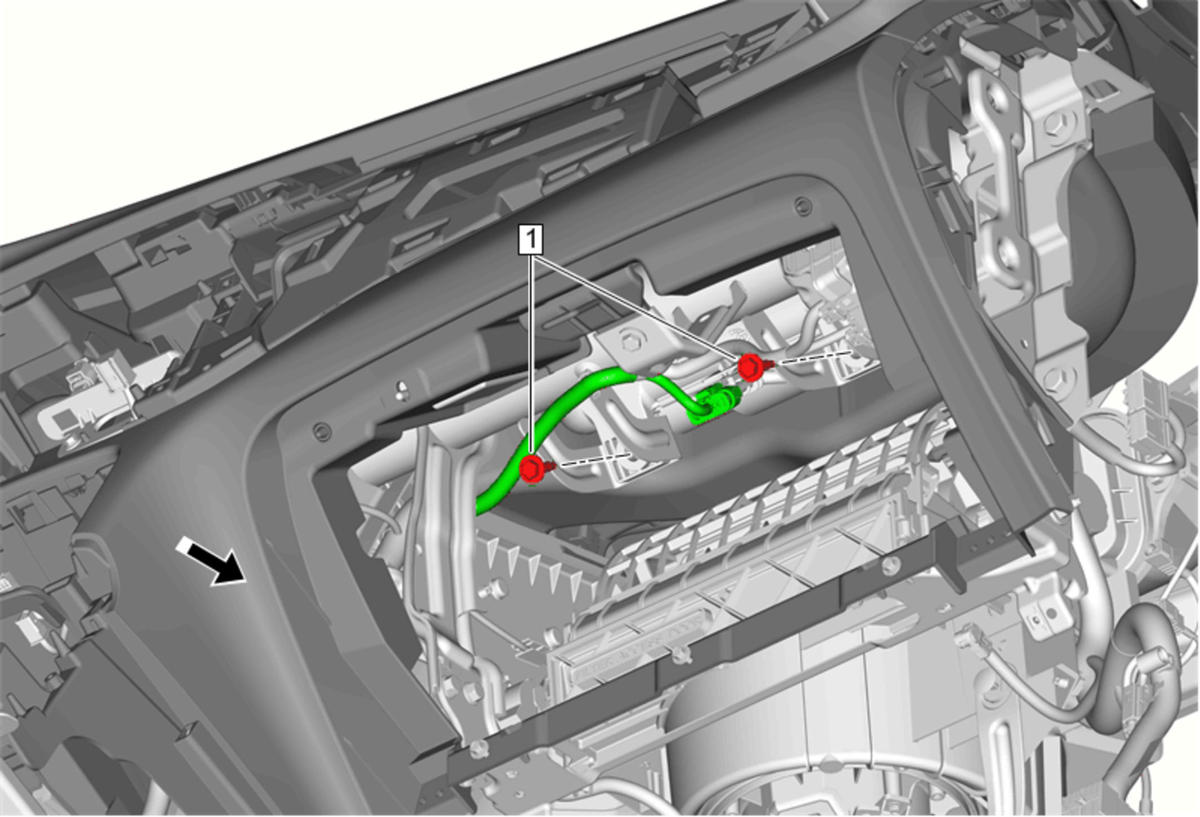

  6. GM4374738Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Airbag Bolt (1) - Install and tighten [2x] 9 N.m (80 lb in)

  7. Connect the electrical connector.

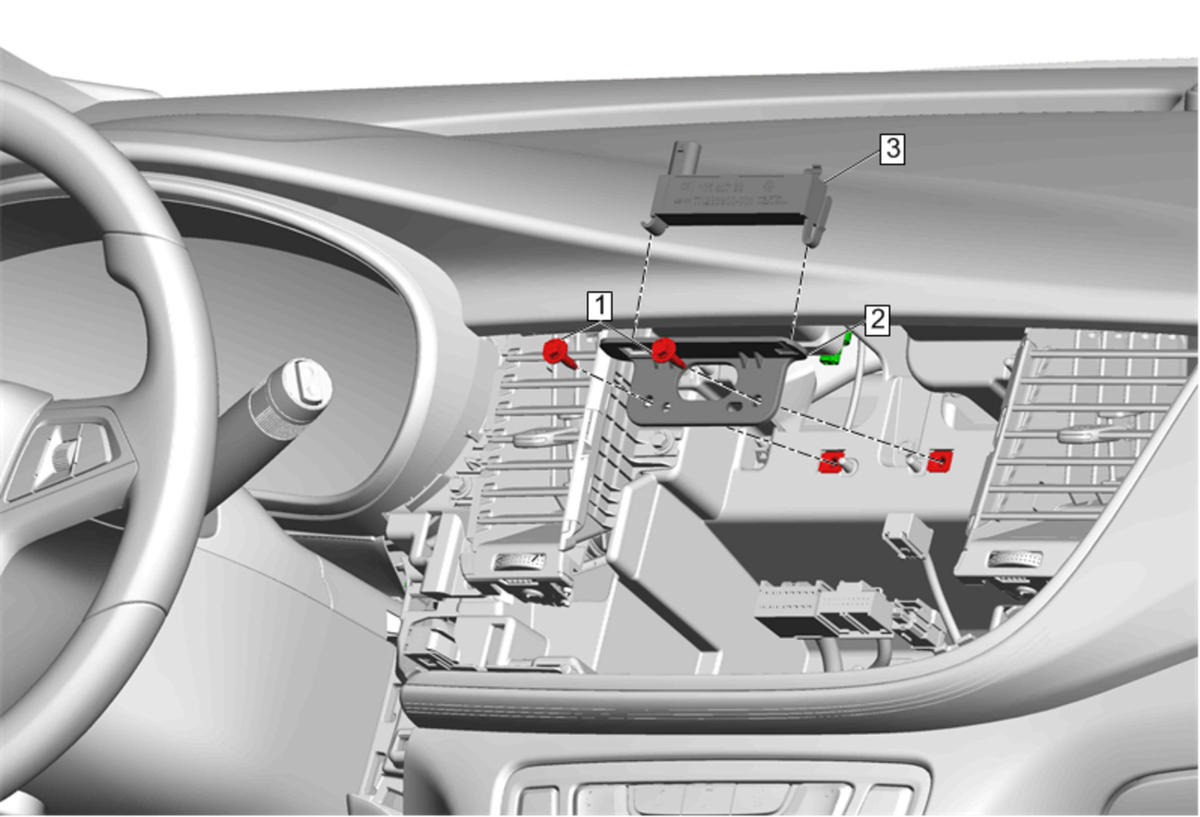

  8. GM4372155Courtesy of GENERAL MOTORS COMPANY

    Low Frequency Instrument Panel Antenna (3) - Install - Low Frequency Instrument Panel Antenna Replacement (Buick)

  9. Heater and Air Conditioning Remote Control - Install - Heater and Air Conditioning Remote Control Replacement (C67)
  10. GM2787204Courtesy of GENERAL MOTORS COMPANY

    Windshield Garnish Molding (1) - Install - Windshield Garnish Molding Replacement (Buick)

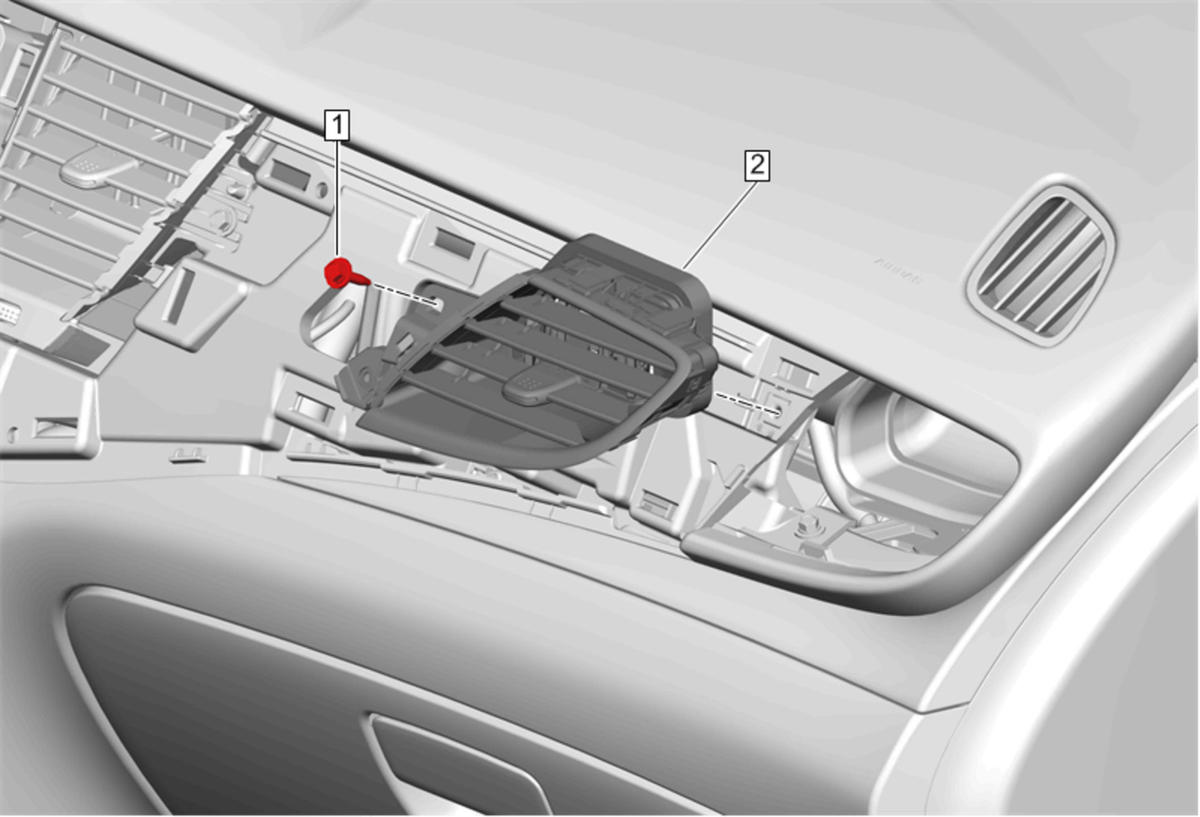

  11. GM4367775Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Outer Air Outlet - Right Side (2) - Install - Instrument Panel Outer Air Outlet Replacement - Right Side (Buick)

  12. GM4452606Courtesy of GENERAL MOTORS COMPANY

    Human Machine Interface Control Module Bracket (2) - Install - Human-Machine Interface Control Module Bracket Replacement

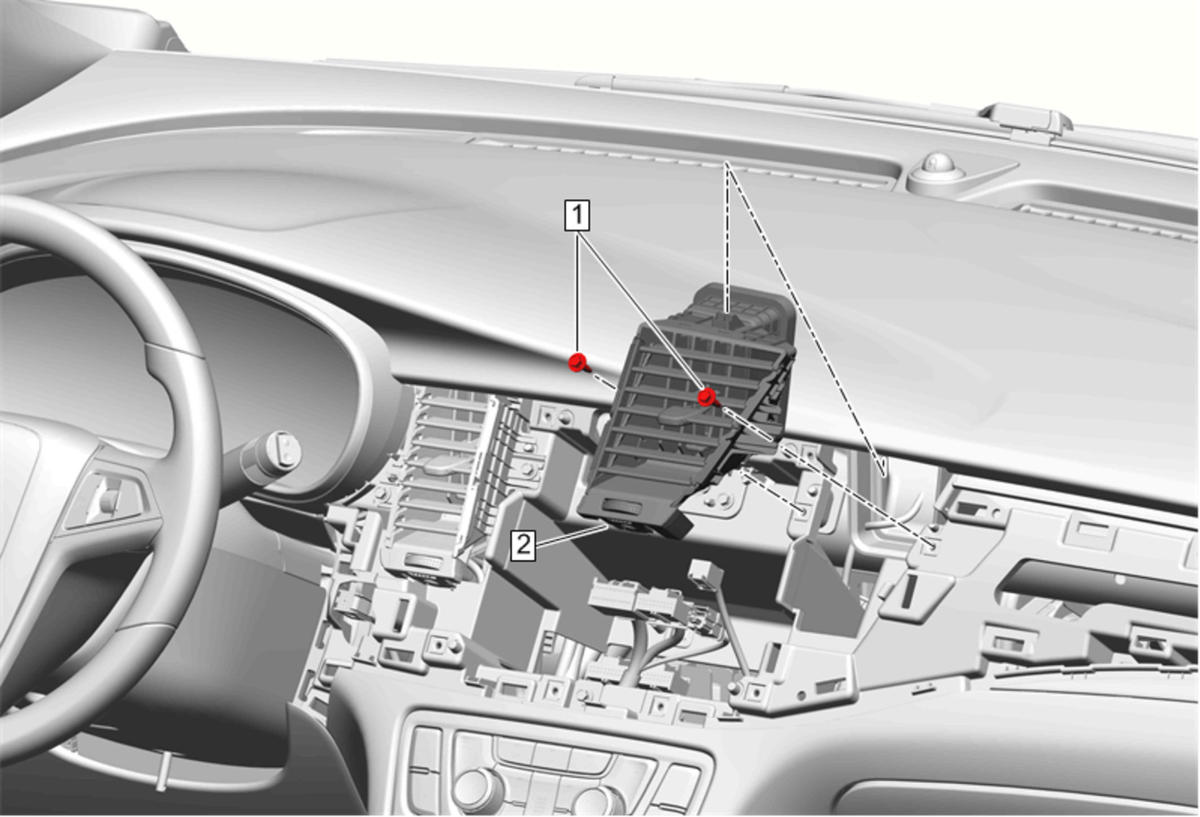

  13. GM4364159Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Center Air Outlet - Right Side (2) - Install - Instrument Panel Center Air Outlet Replacement - Right Side (Buick)

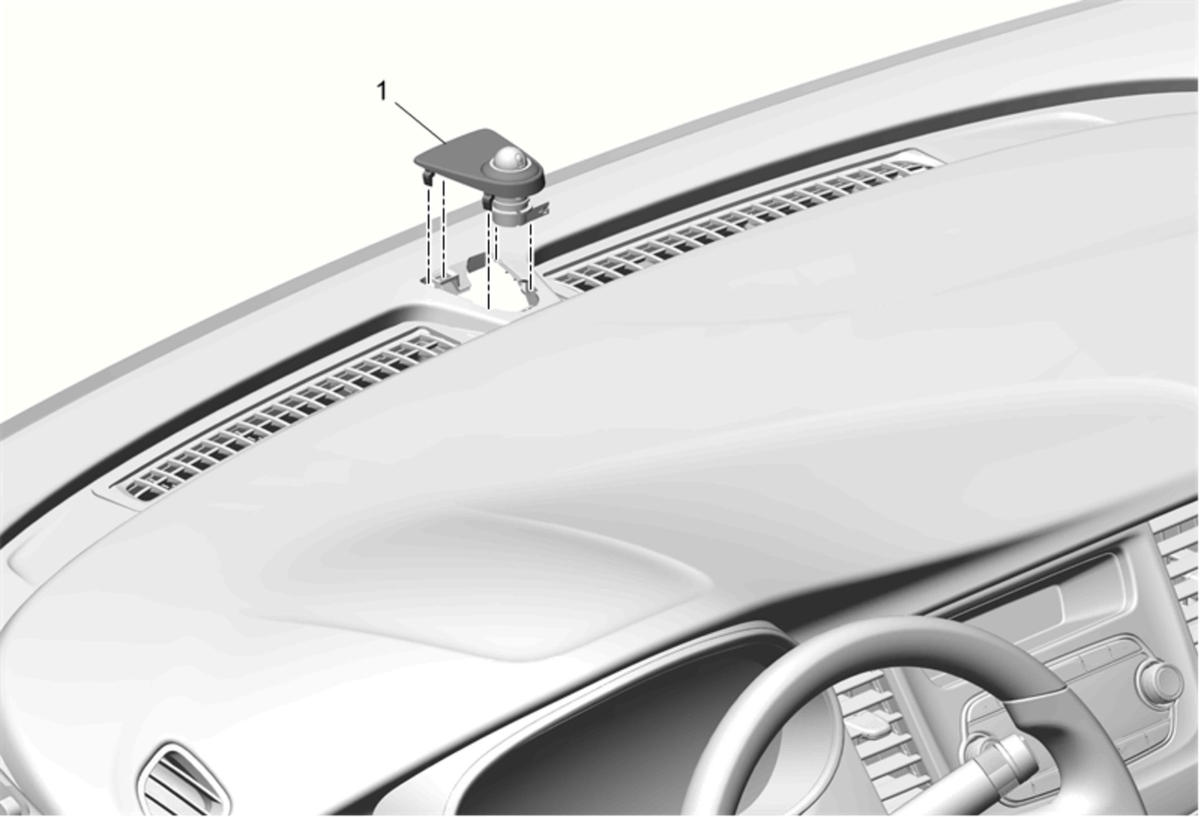

  14. GM4373635Courtesy of GENERAL MOTORS COMPANY

    Sun Load Temperature Sensor Bezel (1) - Install - Sun Load Temperature Sensor Bezel Replacement (Buick)

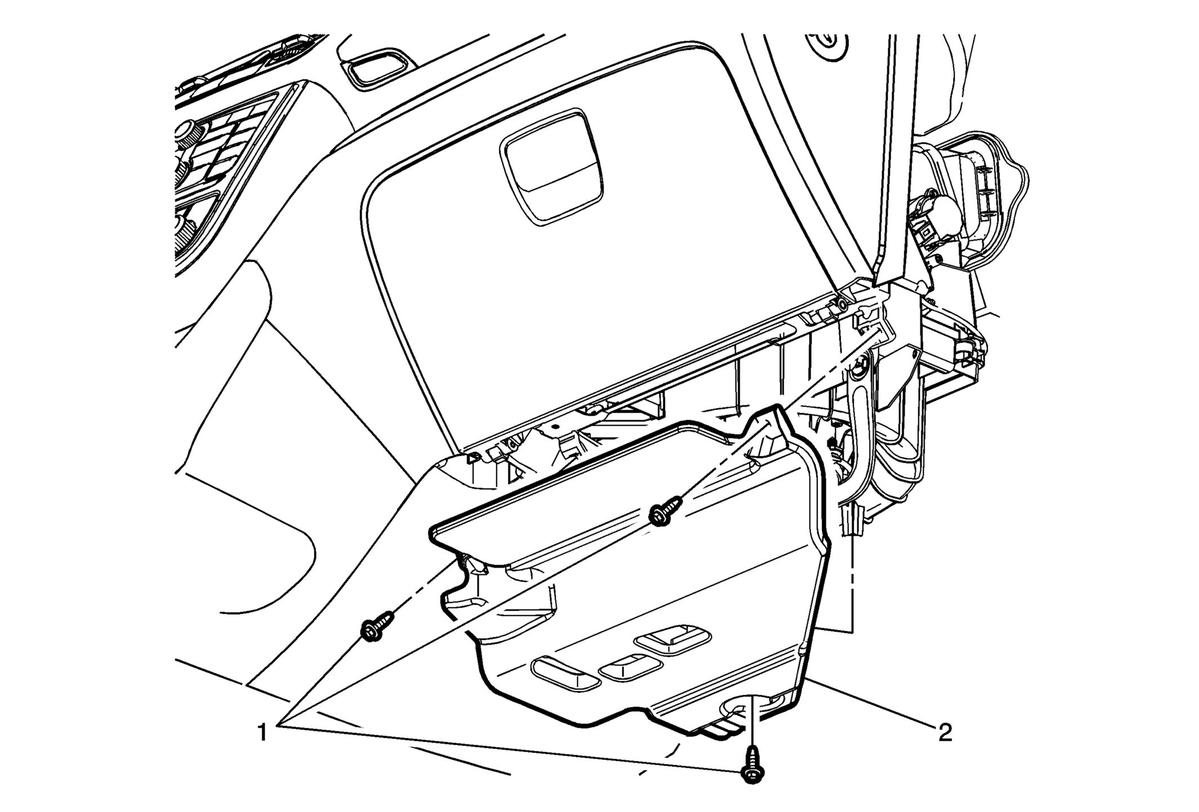

  15. GM2784844Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Trim Panel Insulator (2) - Install - Instrument Panel Lower Trim Panel Insulator Replacement (Buick)

  16. GM2788249Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Compartment (2) - Install - Instrument Panel Compartment Replacement

  17. GM4364381Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Outer Trim Cover (1, 2) - Install - Instrument Panel Outer Trim Cover Replacement (Buick)

  18. GM4446604Courtesy of GENERAL MOTORS COMPANY

    Radio (1) - Install - Radio Replacement (Buick)

  19. GM4373864Courtesy of GENERAL MOTORS COMPANY

    Instrument Cluster (2) - Install - Instrument Cluster Replacement (Buick)

  20. GM4426967Courtesy of GENERAL MOTORS COMPANY

    Headlamp Switch (1) - Install - Headlamp Switch Replacement

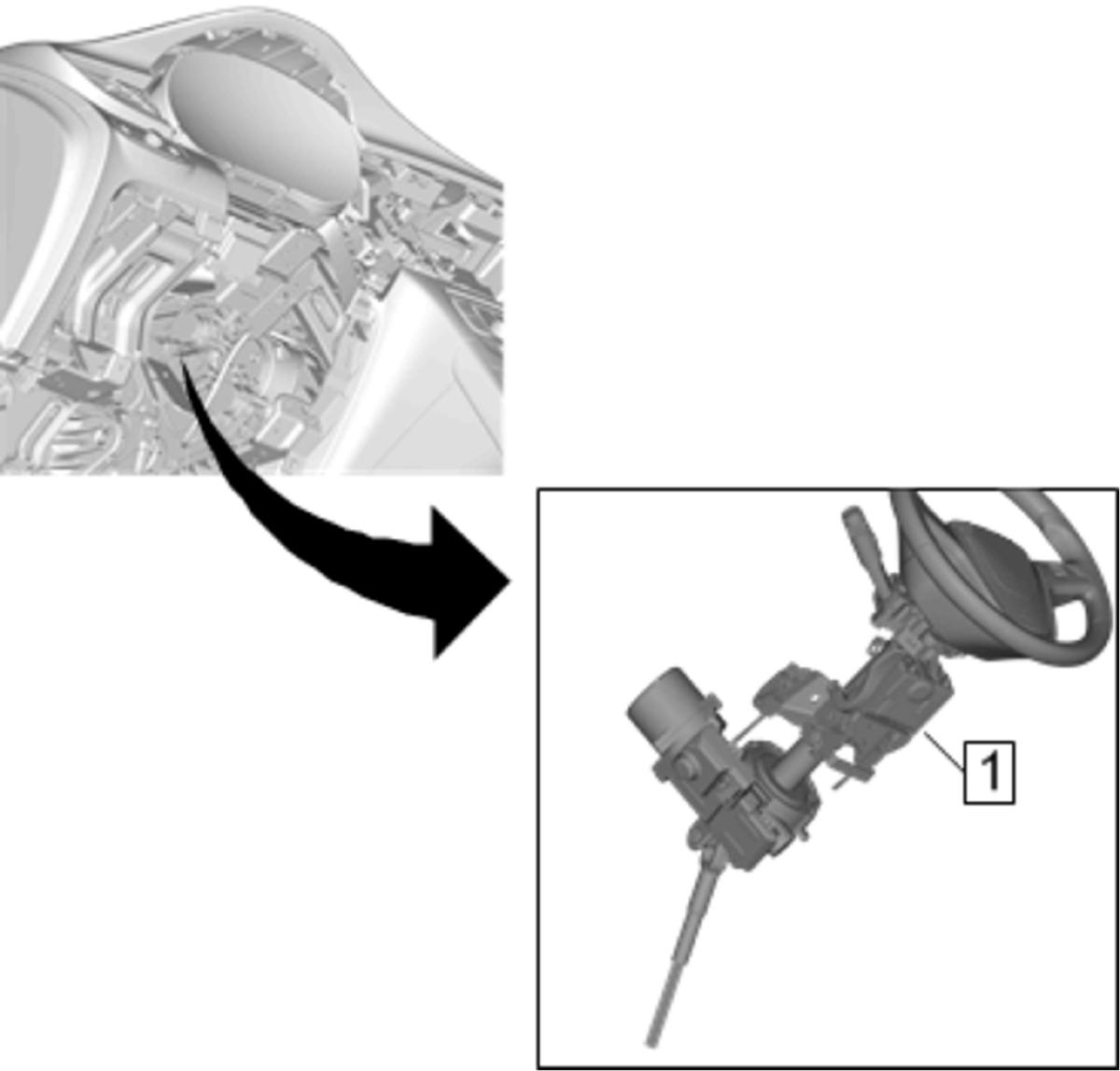

  21. GM4364877Courtesy of GENERAL MOTORS COMPANY

    Steering Column (1) - Install - Steering Column Replacement (Buick, Mexico, NJ1, With BTM, With N06) , or Steering Column Replacement (Buick, Canada/United States, NJ1, With BTM, Without N06) , or Steering Column Replacement (Mexico, N40)

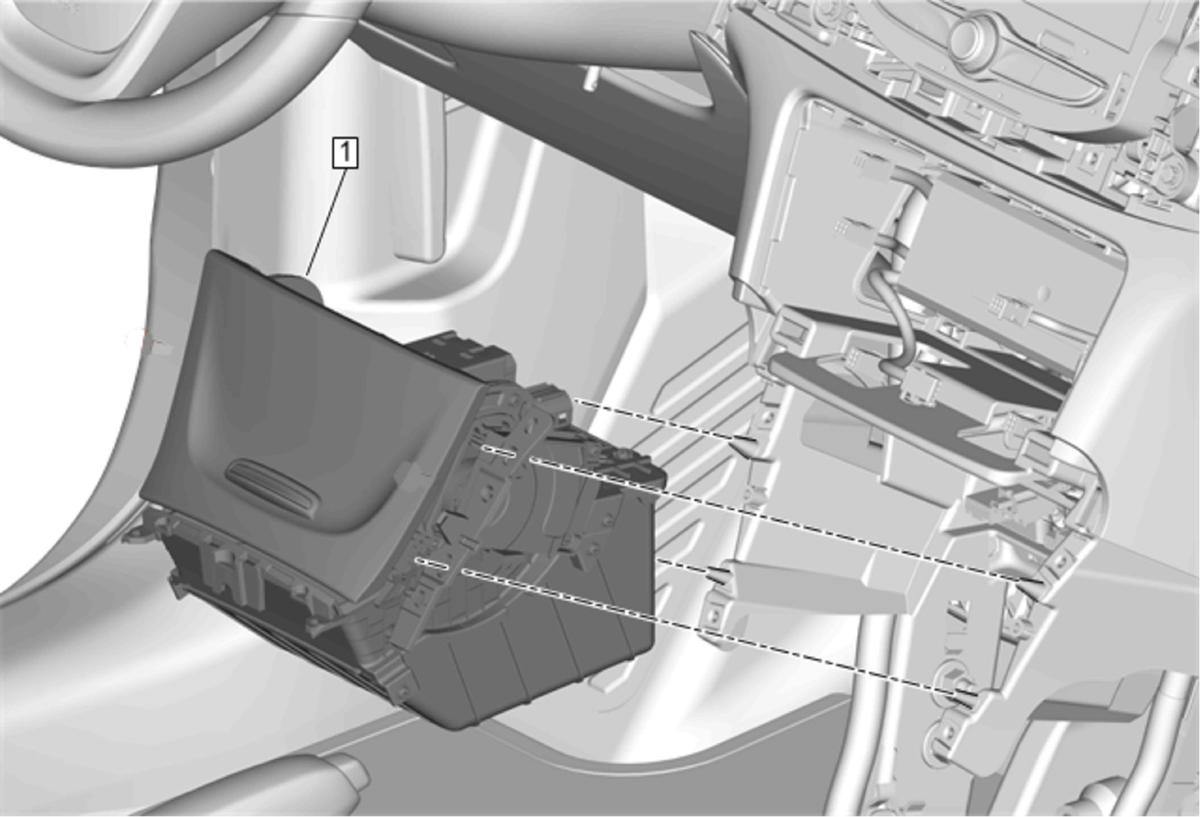

  22. GM4362870Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Stowage Tray (1) - Install - Front Floor Console Stowage Tray Replacement (Buick)
