Installation Procedure

  1. GM4361221Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  2. Instrument Panel Accessory Bezel (1) - Install

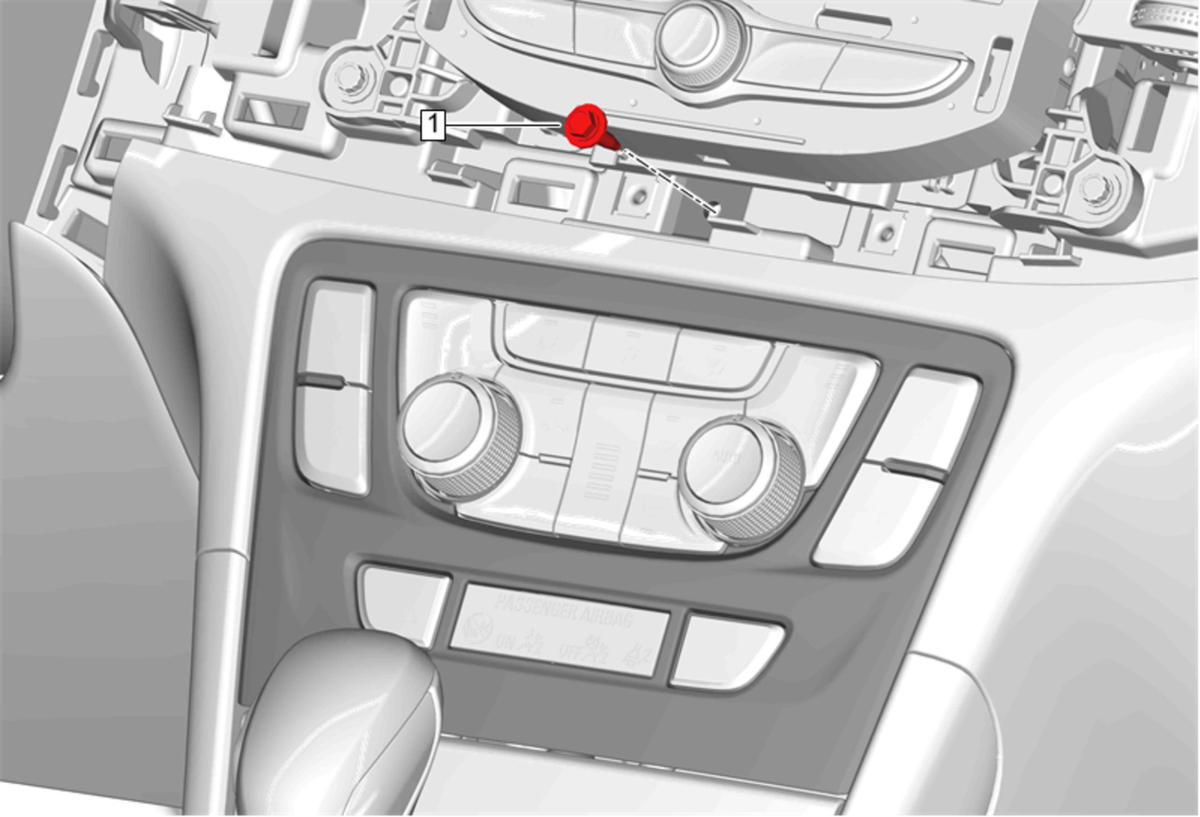

  3. GM4361215Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Instrument Panel Accessory Bezel Bolt (1) - Install and tighten 2.5 N.m (22 lb in)

  4. GM4361008Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Trim Plate Applique - Right Side (1) - Install - Instrument Panel Lower Trim Plate Applique Replacement - Right Side (Buick)
