Installation Procedure

  1. GM4362870Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  2. Front Floor Console Stowage Tray (1) - Install

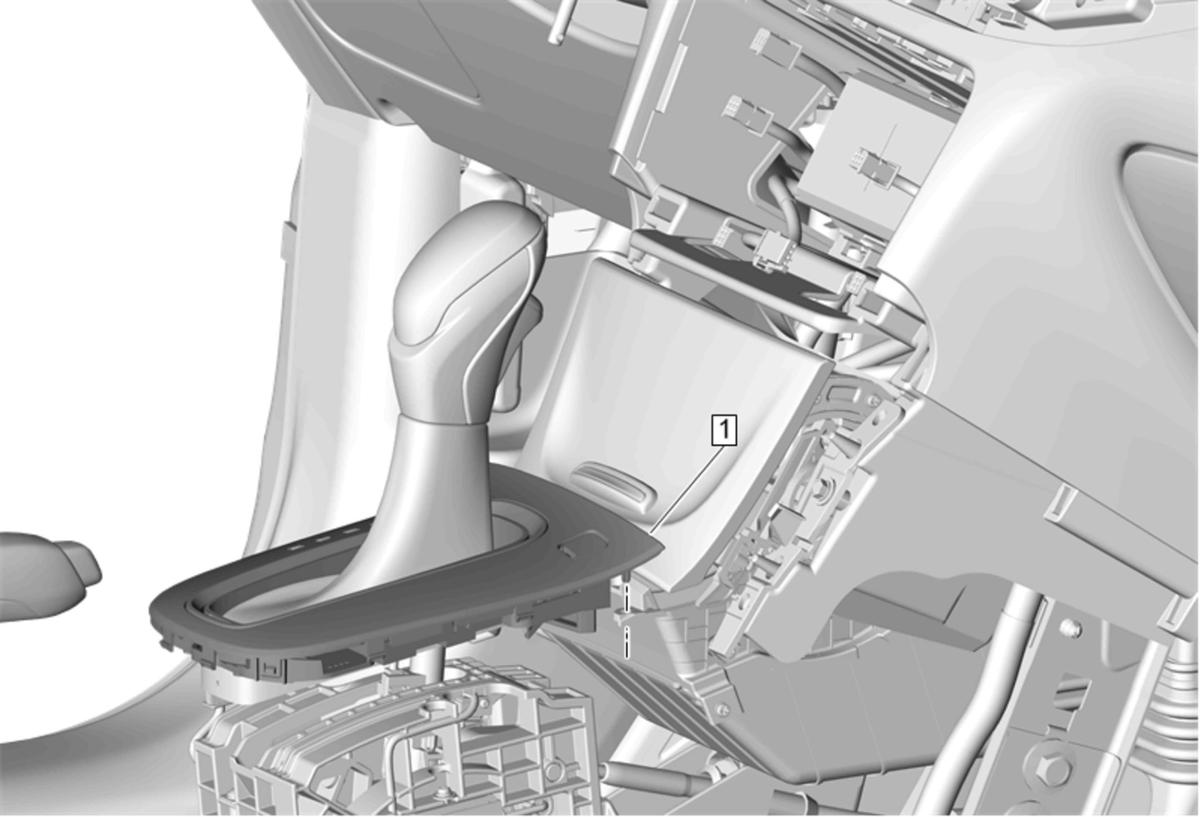

  3. GM4362865Courtesy of GENERAL MOTORS COMPANY

    Automatic Transmission Control Indicator Bezel (1) - Install

  4. GM2774901Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console (3) - Install - Front Floor Console Replacement (Buick)

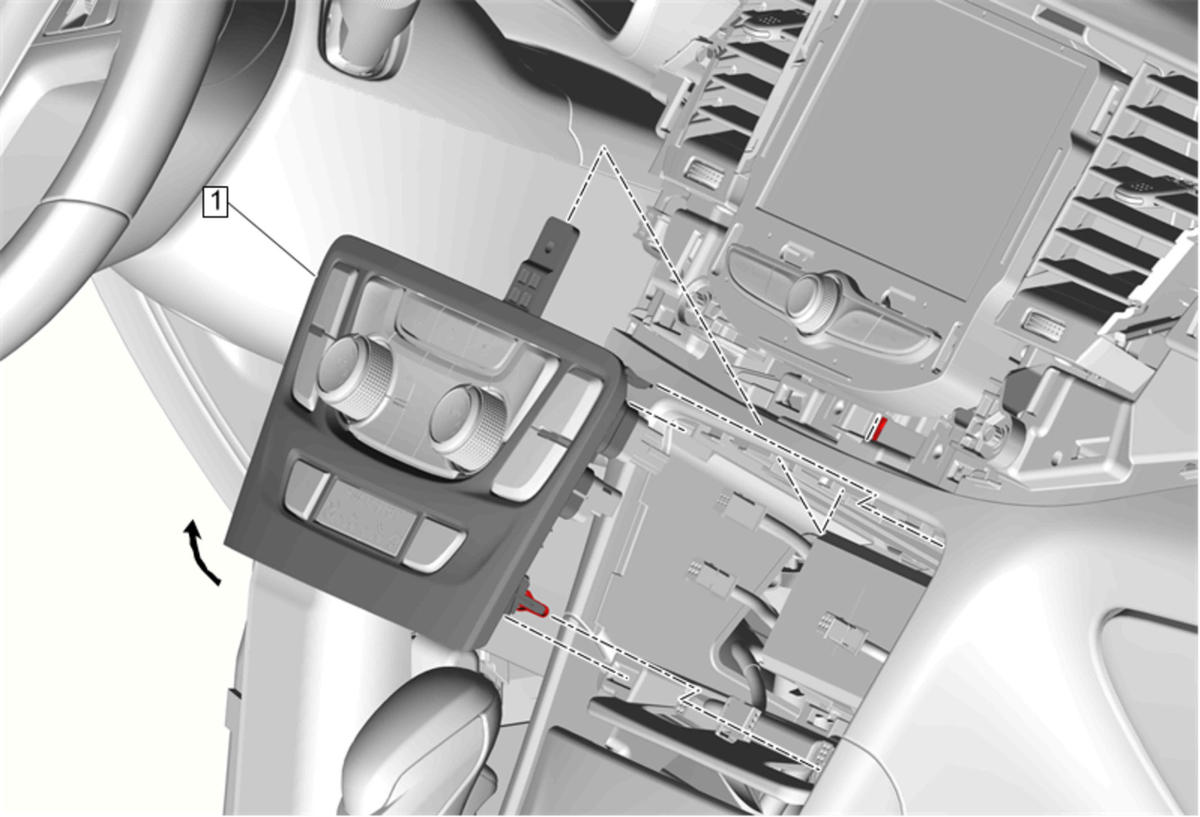

  5. GM4361221Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Accessory Bezel (1) - Install - Instrument Panel Accessory Bezel Replacement (Buick)
