Installation Procedure

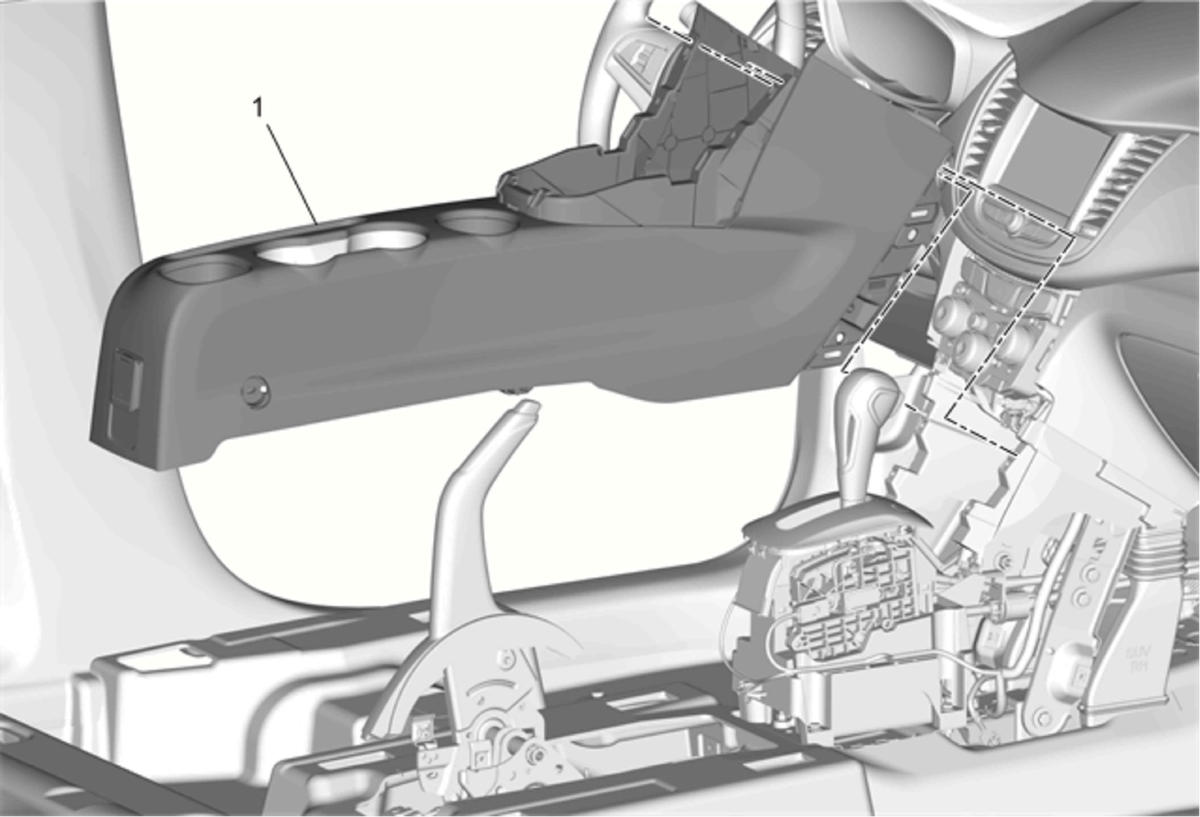

  1. GM4491207Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console (1) - Install

  2. Connect the electrical connectors.

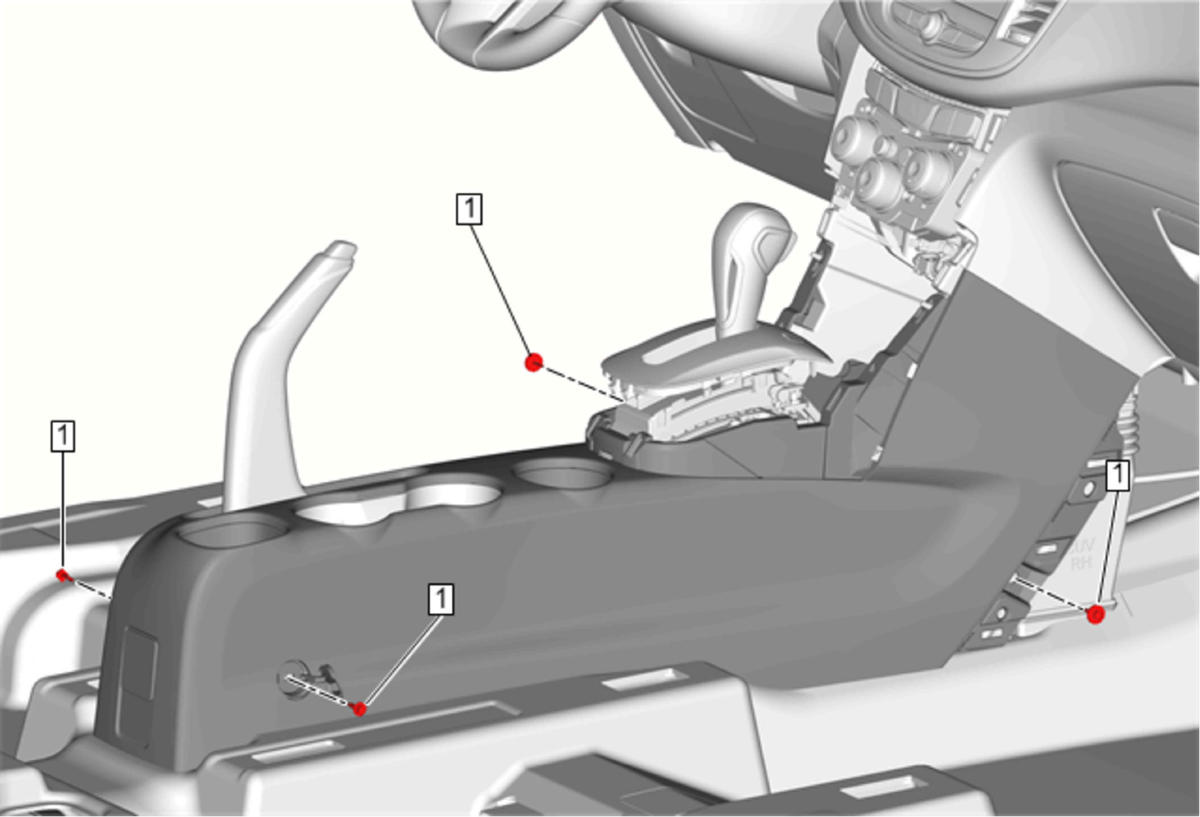

  3. GM4491531Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Front Floor Console Bolt (1) - Install and tighten [4x] 2.5 N.m (22 lb in)

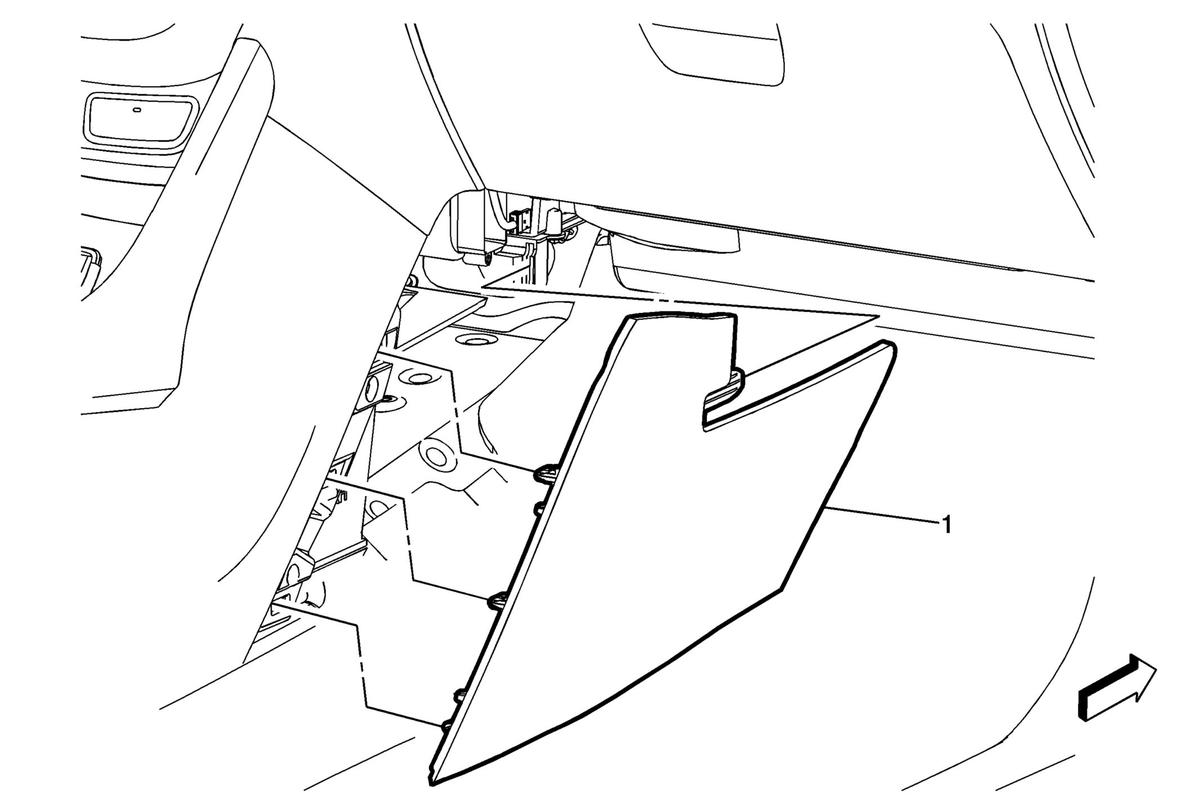

  4. GM2777221Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Extension Panel - Right Side (1) - Install - Front Floor Console Extension Replacement - Right Side

  5. GM2852002Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Extension Panel - Left Side (2) - Install - Front Floor Console Extension Replacement - Left Side

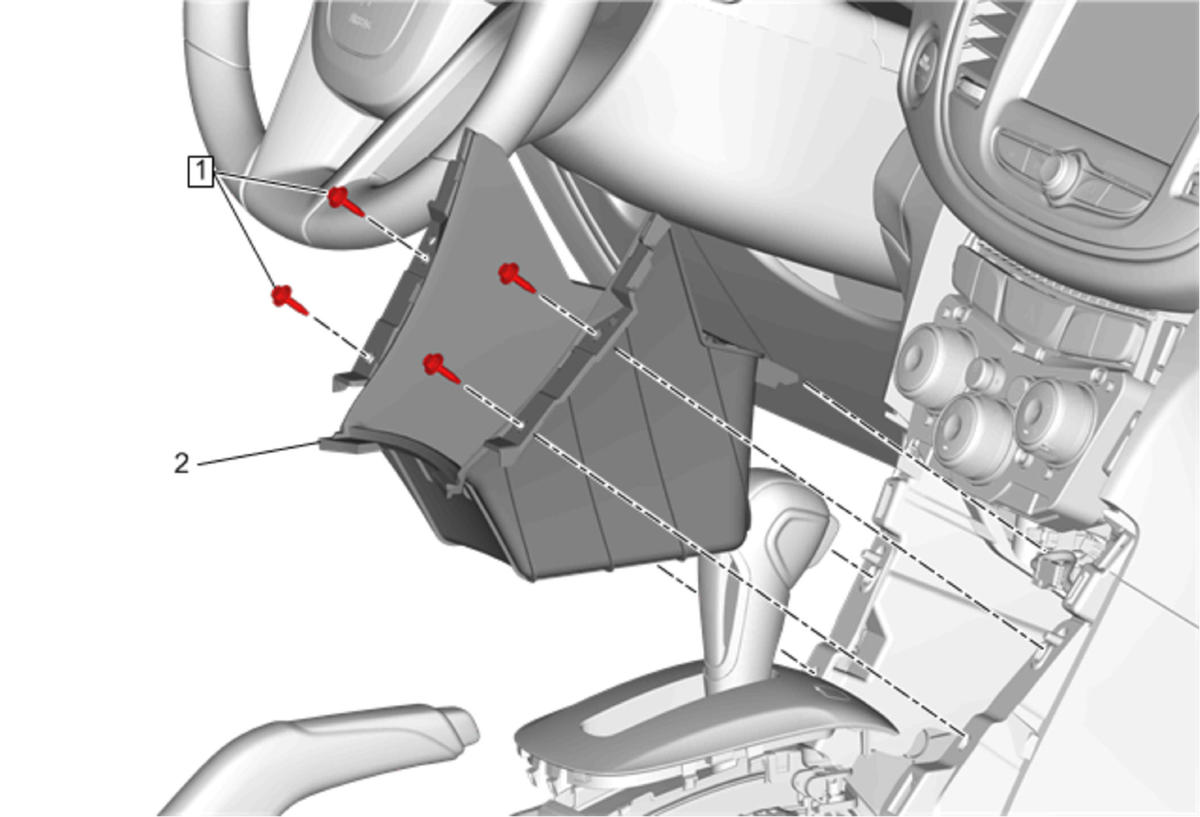

  6. GM4491204Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Stowage Tray (2) - Install - Front Floor Console Stowage Tray Replacement (Chevrolet)

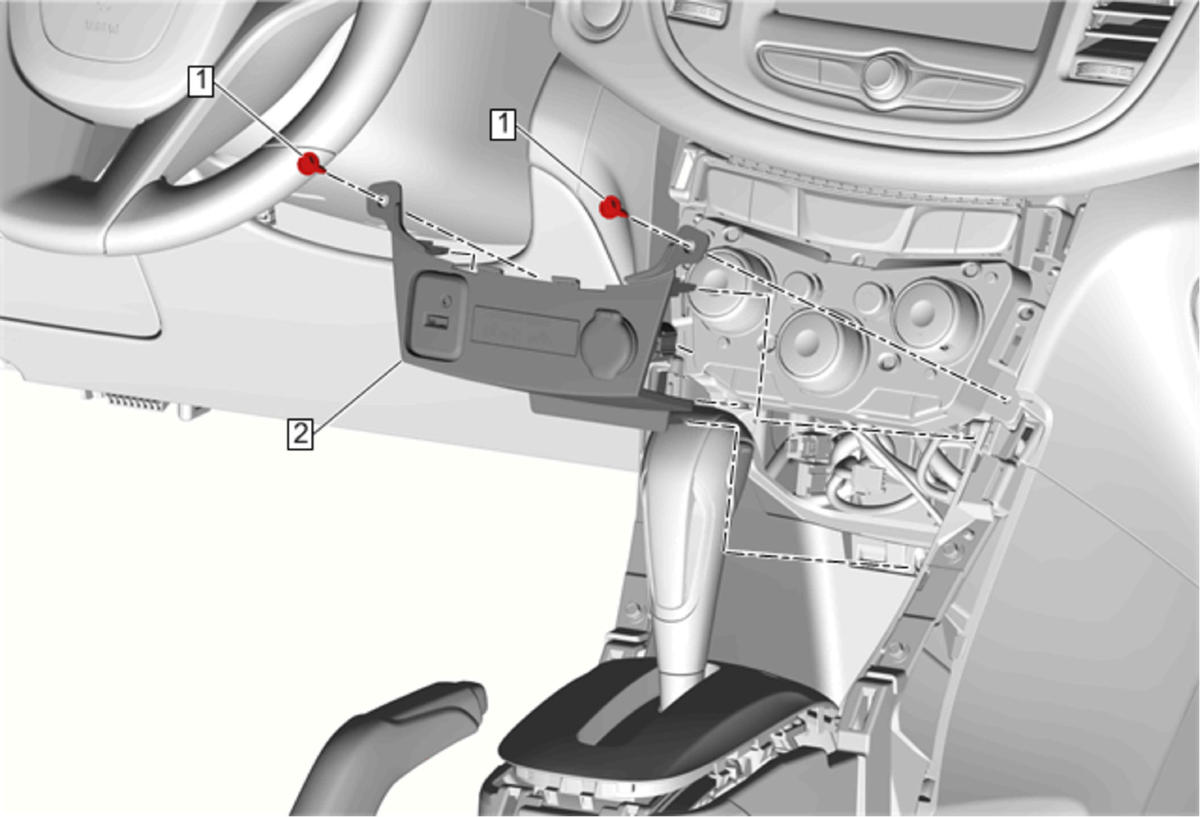

  7. GM4491195Courtesy of GENERAL MOTORS COMPANY

    Front Floor Lower Console (2) - Install - Front Floor Lower Console Replacement (Chevrolet)

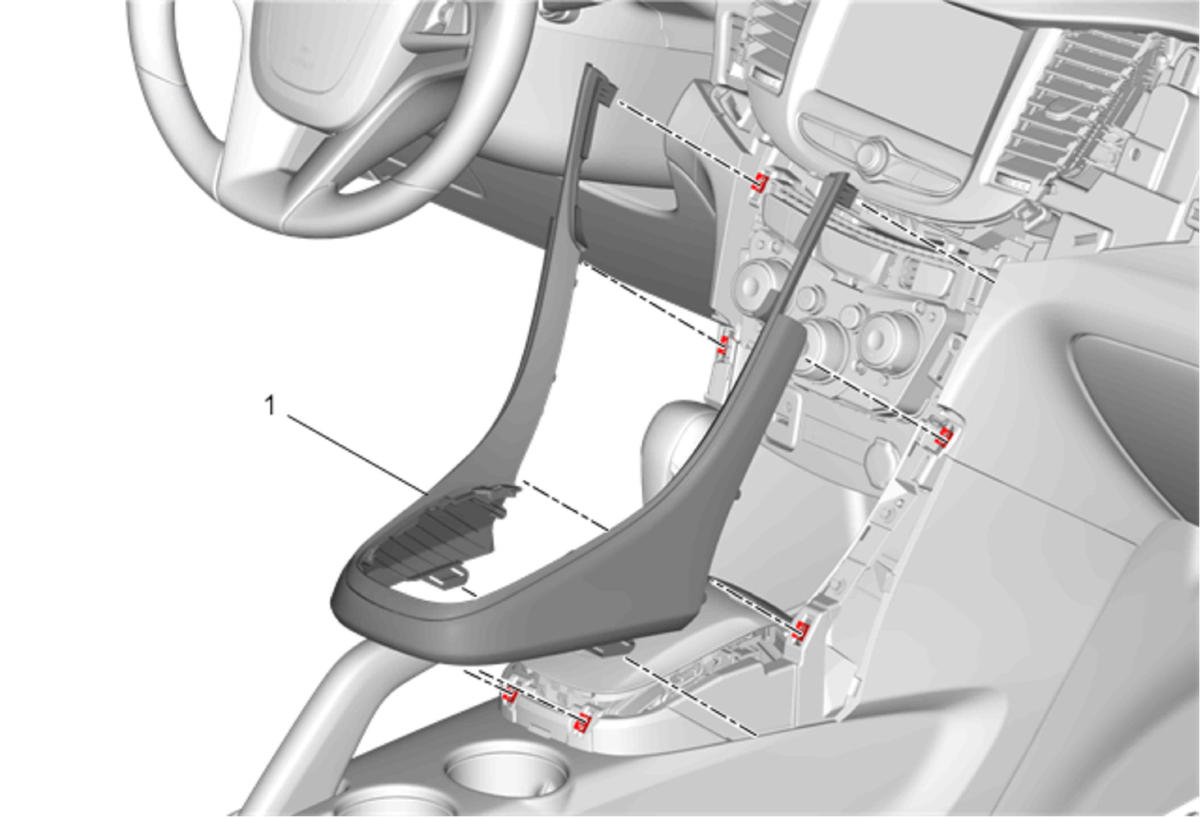

  8. GM4491184Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Applique (1) - Install

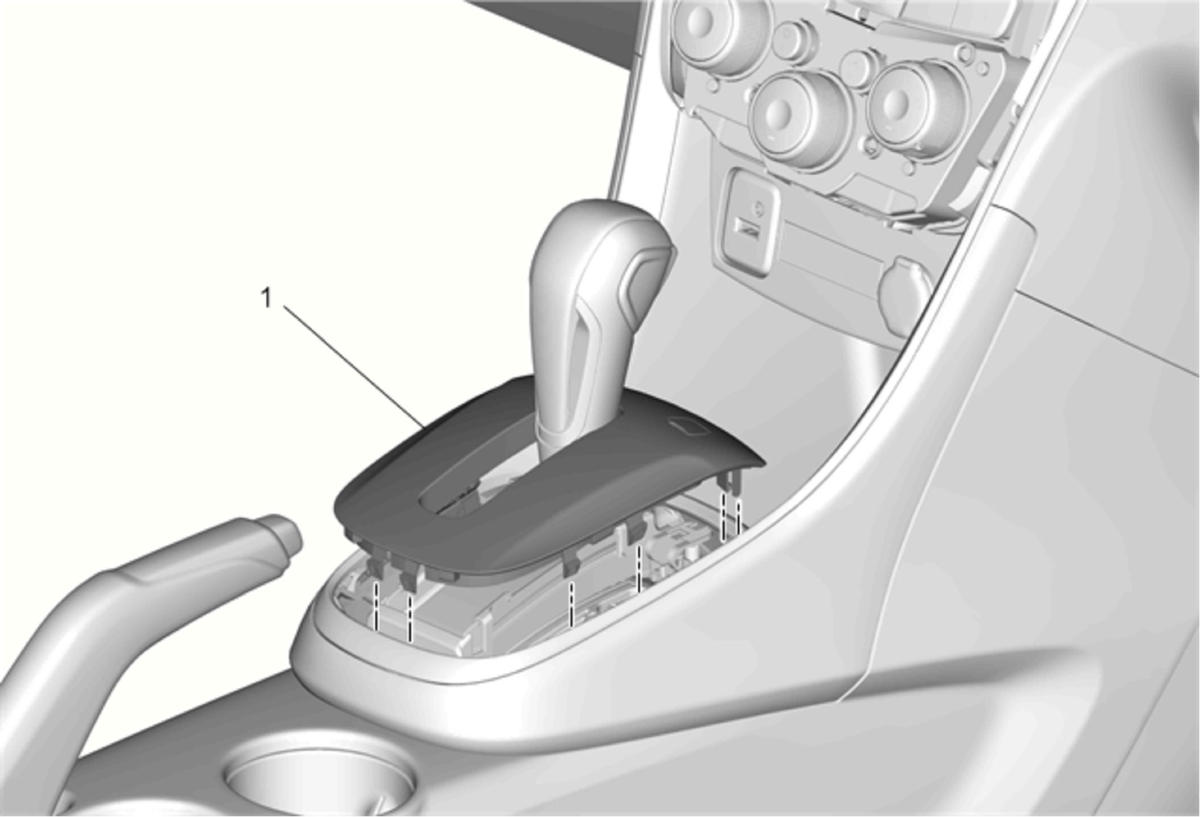

  9. GM4491203Courtesy of GENERAL MOTORS COMPANY

    Automatic Transmission Control Indicator Bezel (1) - Install

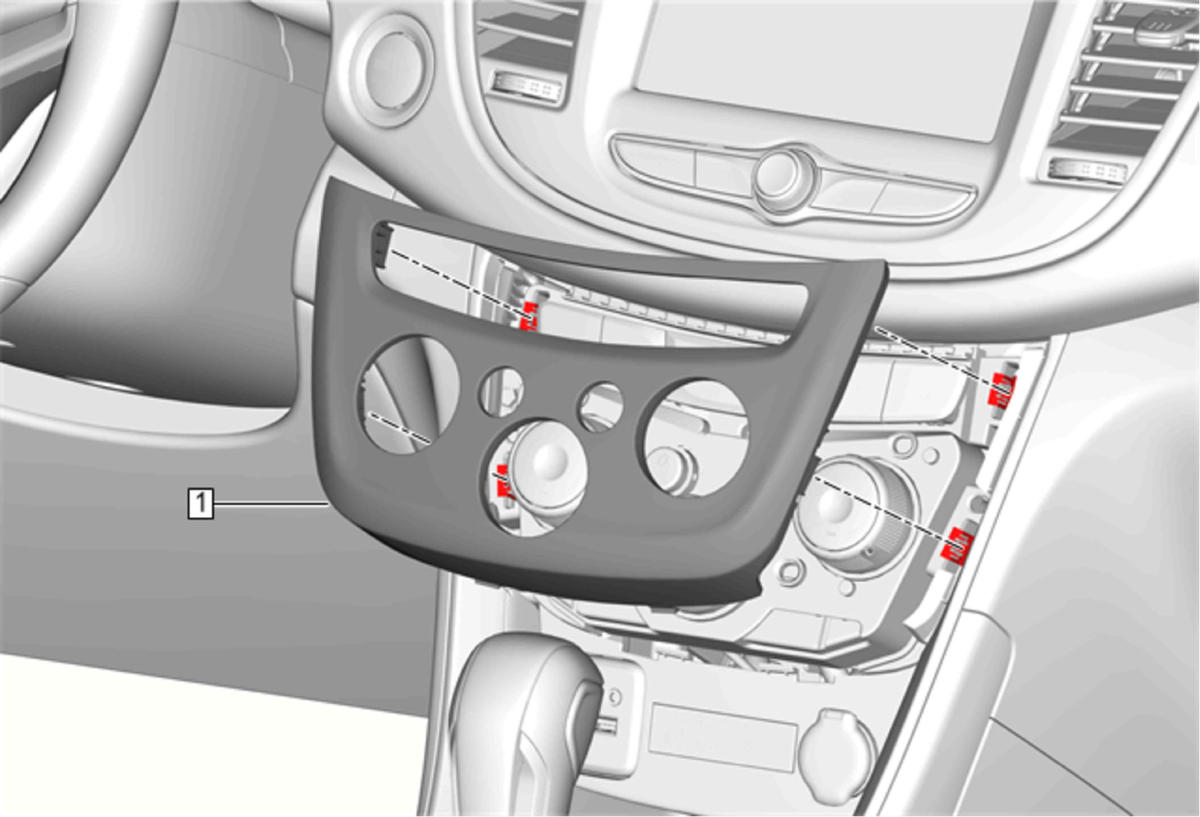

  10. GM4491170Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Switch Trim Plate (1) - Install - Instrument Panel Switch Trim Plate Replacement (Chevrolet)
