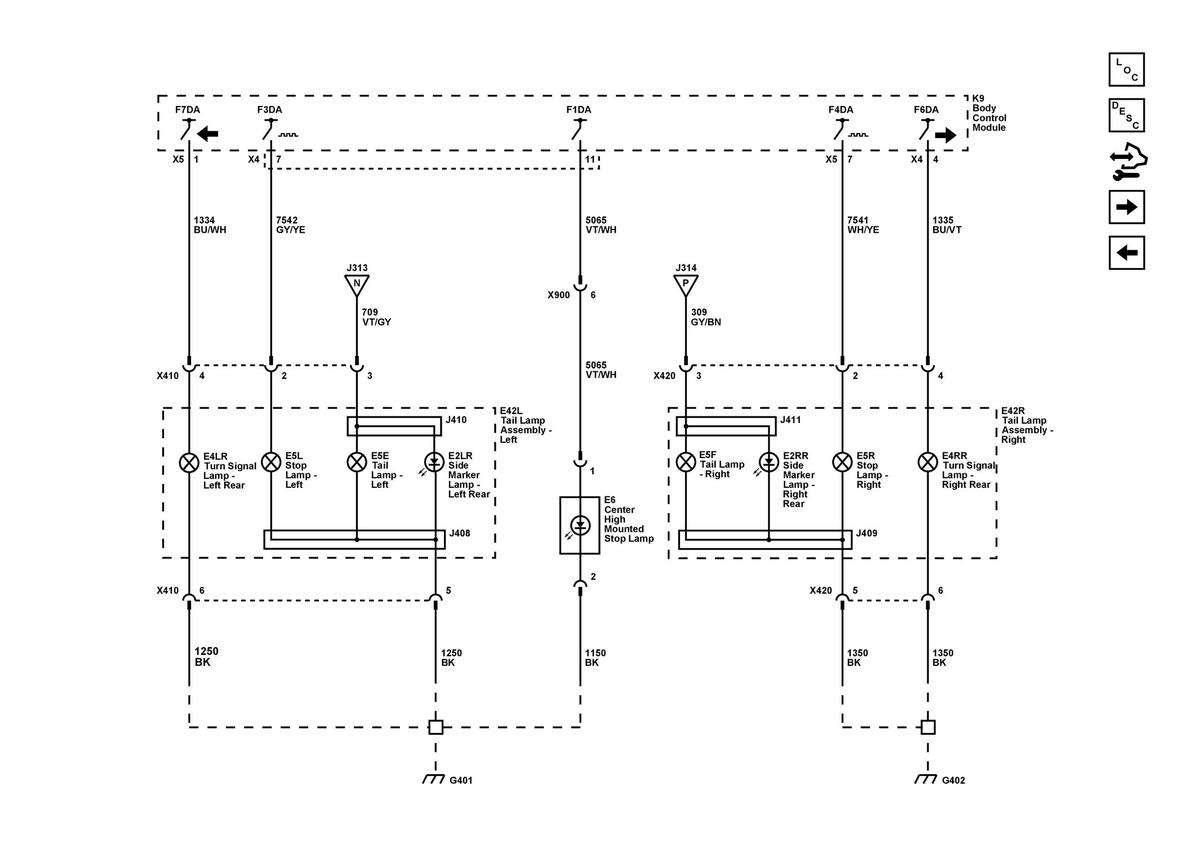

Tail, Stop, and Rear Turn Signal Lamps (Chevrolet without UGE)

GM5679227

Courtesy of GENERAL MOTORS COMPANY
