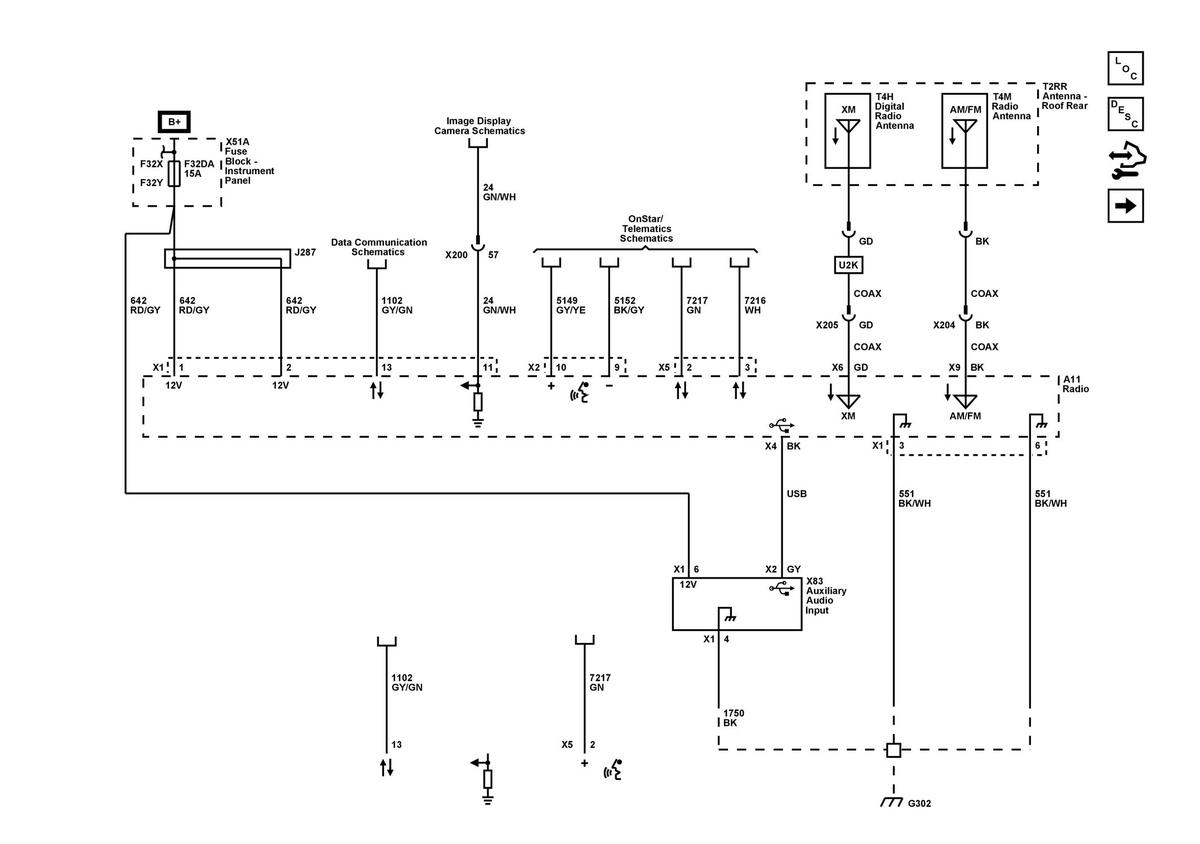

Power, Ground, Serial Data, and Audio/Video Inputs (Chevrolet)

GM5679249

Courtesy of GENERAL MOTORS COMPANY
