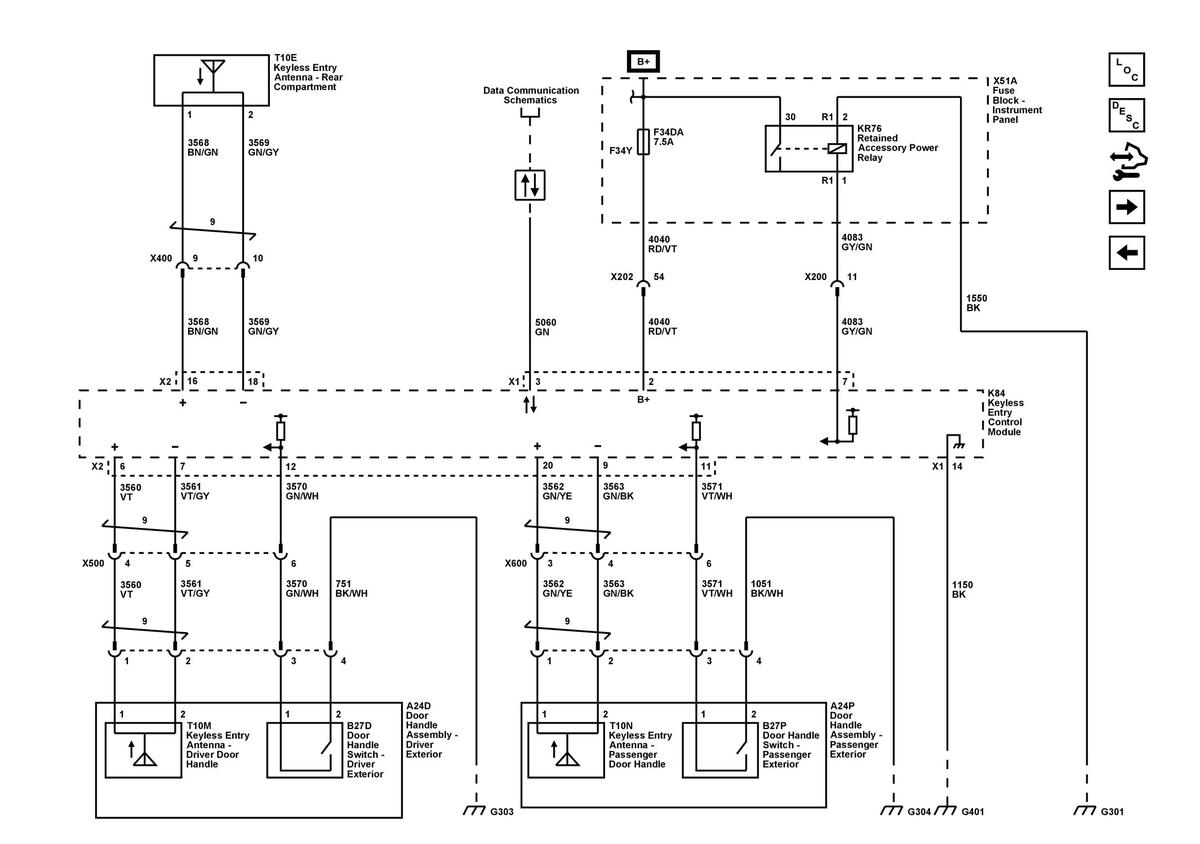

Keyless Entry - Passive Entry and Keyless Start (Chevrolet BTM/ATH) (1 of 2)

GM5679358Courtesy of GENERAL MOTORS COMPANY
