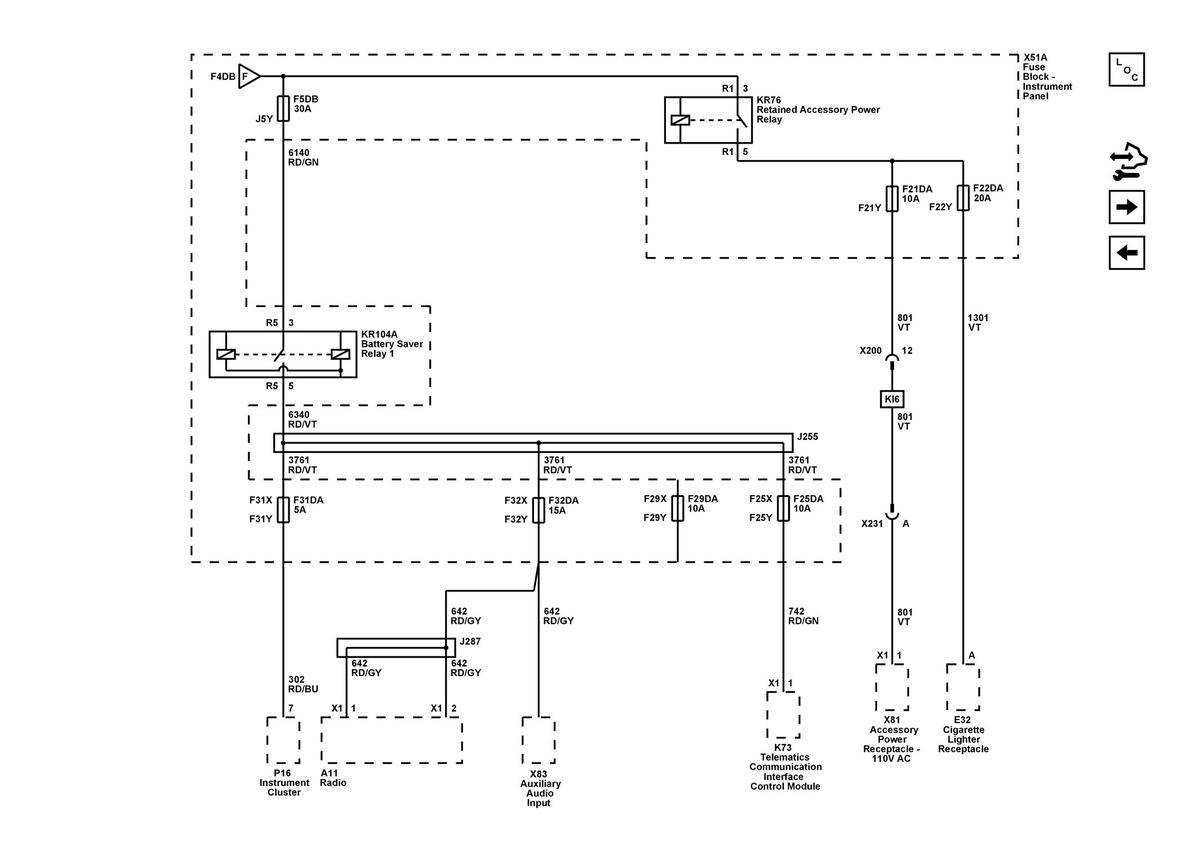

F5DB, F21DA, F22DA, F25DA, F29DA, F31DA, and F32DA Fuses (Chevrolet)

GM5679331

Courtesy of GENERAL MOTORS COMPANY
