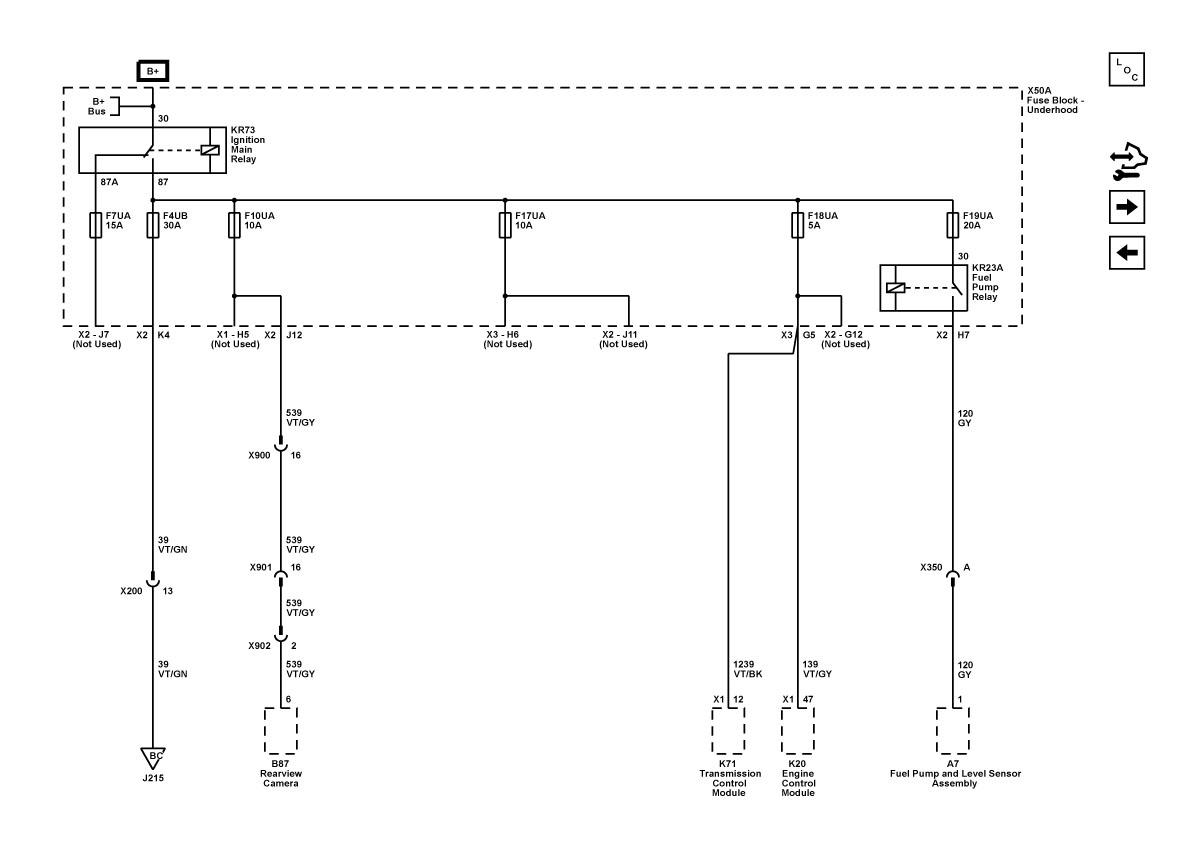

F4UB, F7UA, F10UA, F17UA, F18UA, and F19UA (Chevrolet)

GM5679323

Courtesy of GENERAL MOTORS COMPANY
