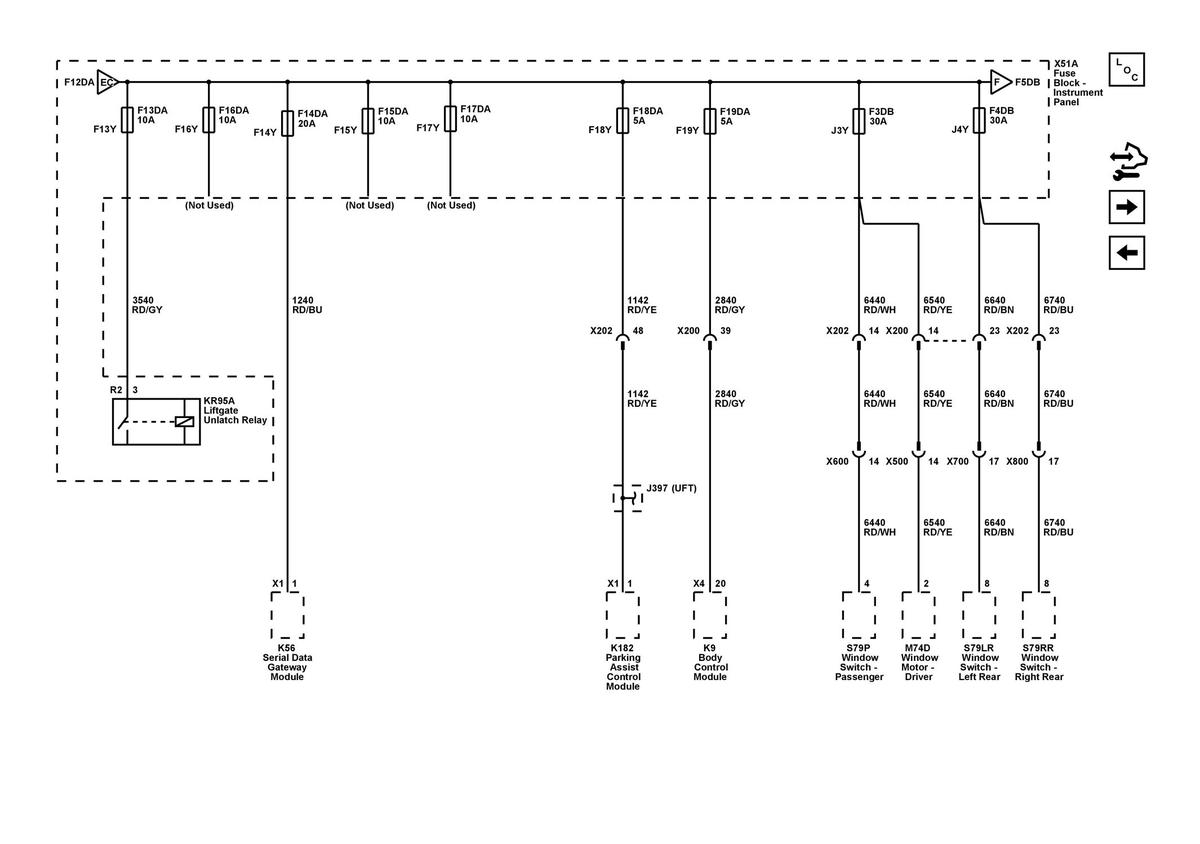

F3DB, F4DB, F13DA, F14DA, F15DA, F16DA, F17DA, F18DA, and F19DA Fuses (Chevrolet)

GM5679330

Courtesy of GENERAL MOTORS COMPANY
