Rear Toe Adjustment

  1. Place vehicle in alignment mode. Alignment Mode Selection

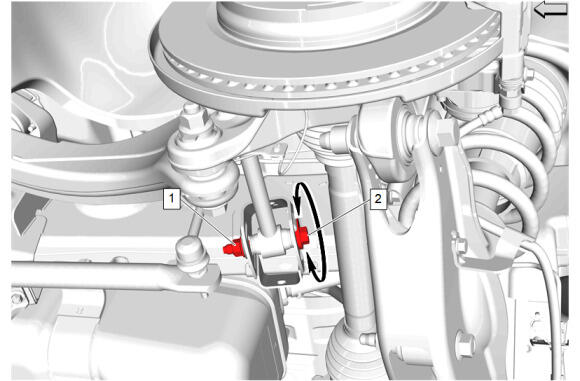

  2. GM5586936Courtesy of GENERAL MOTORS COMPANY

    Rear Suspension Link Inner Nut (1) - Loosen

  3. Rotate the rear suspension adjust link bolt (2) as necessary to achieve the required toe specification setting. Wheel Alignment Specifications
  4. Rear Suspension Link Inner Nut (1) - Tighten - Fastener Specifications
  5. Check the toe setting after tightening.
  6. Re-adjust the toe setting if necessary.
