Installation Procedure

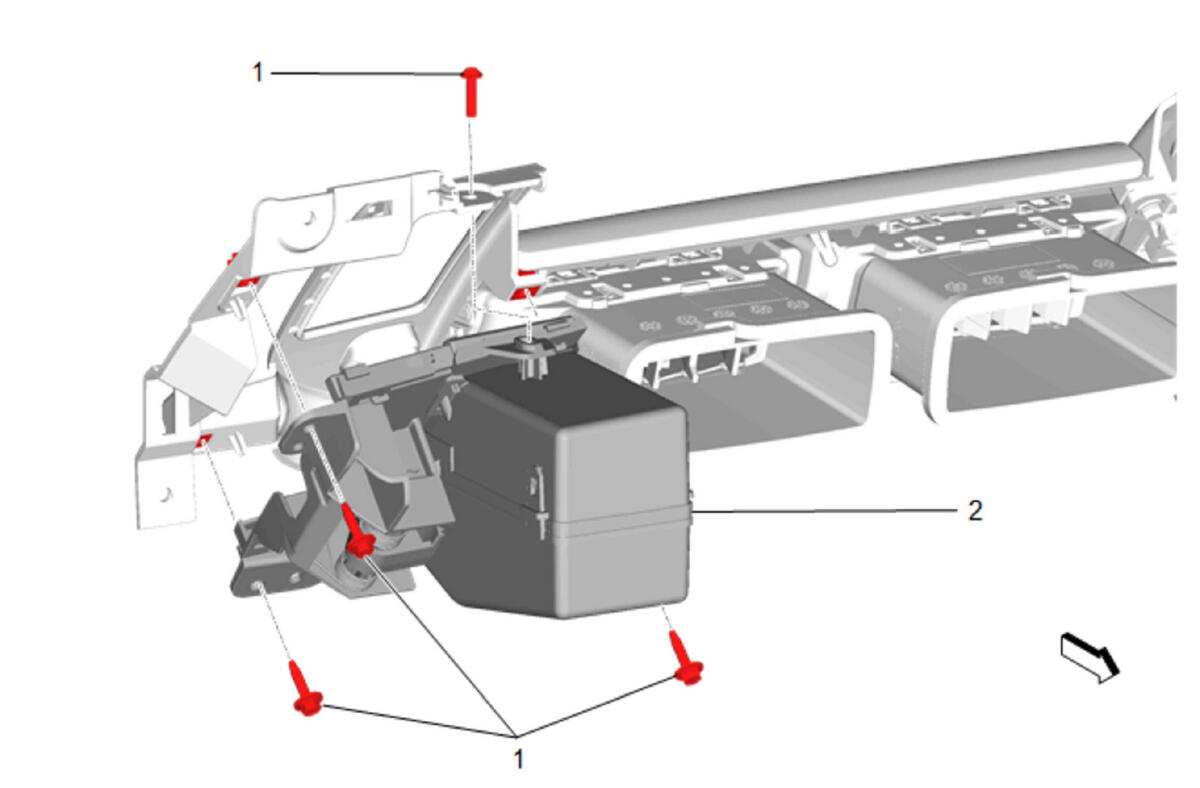

  1. GM5523089Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Upper Center Compartment (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Instrument Panel Upper Compartment Bolt (1) - Install and tighten [4x] - Fastener Specifications
  3. GM5520781Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  4. Instrument Panel Transmission Shift Opening Cover (2) - Install
  5. Instrument Panel Center Trim Panel Bolt (1) - Install and tighten [6x] - Fastener Specifications
  6. GM5520388Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  7. Instrument Panel Trim Pad (2) - Install
  8. Instrument Panel Upper Trim Panel Bolt (1) - Install and tighten [6x] - Fastener Specifications
  9. GM5519541Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Center Trim Plate Applique (1) - Install

  10. GM5519543Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Trim Plate Applique (1) - Install

  11. GM5518395Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Fuse Block Access Hole Cover (1) - Install
