Installation Procedure

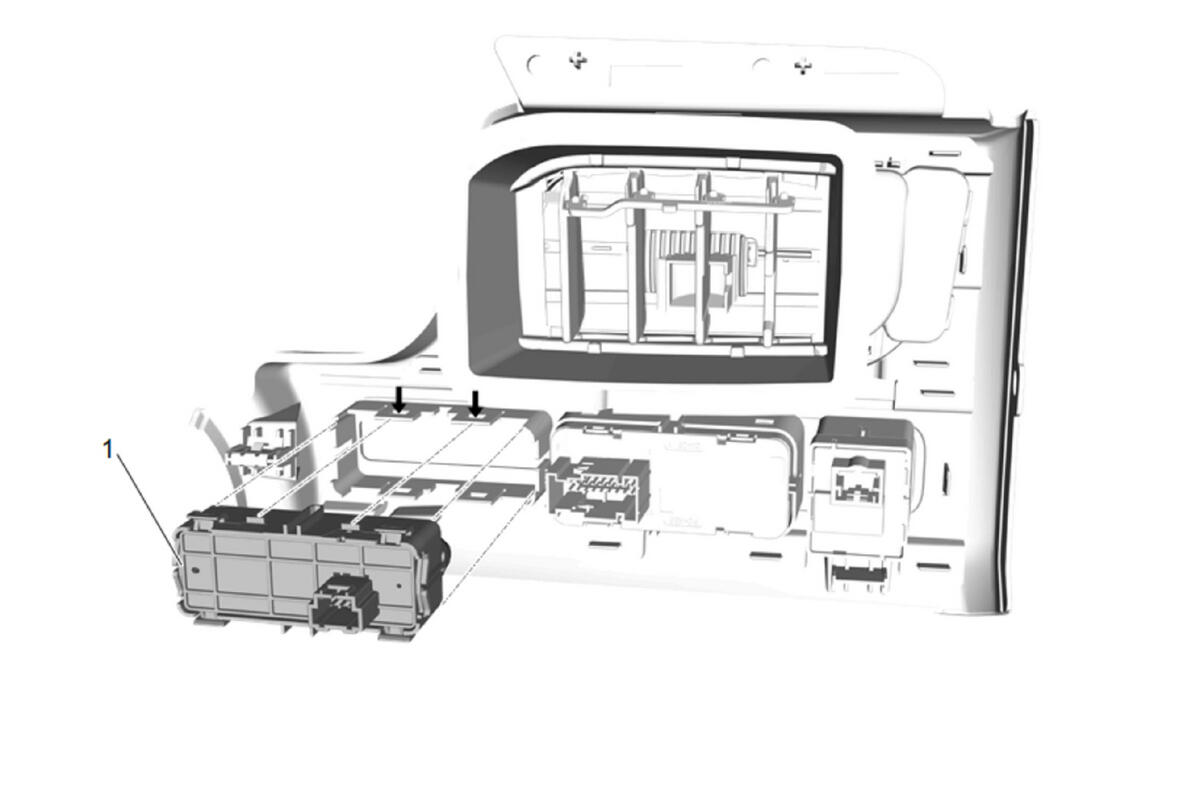

  1. GM5607378Courtesy of GENERAL MOTORS COMPANY

    {If equipped} Head-Up Display Switch (1) - Install

  2. Secure the retaining tabs.

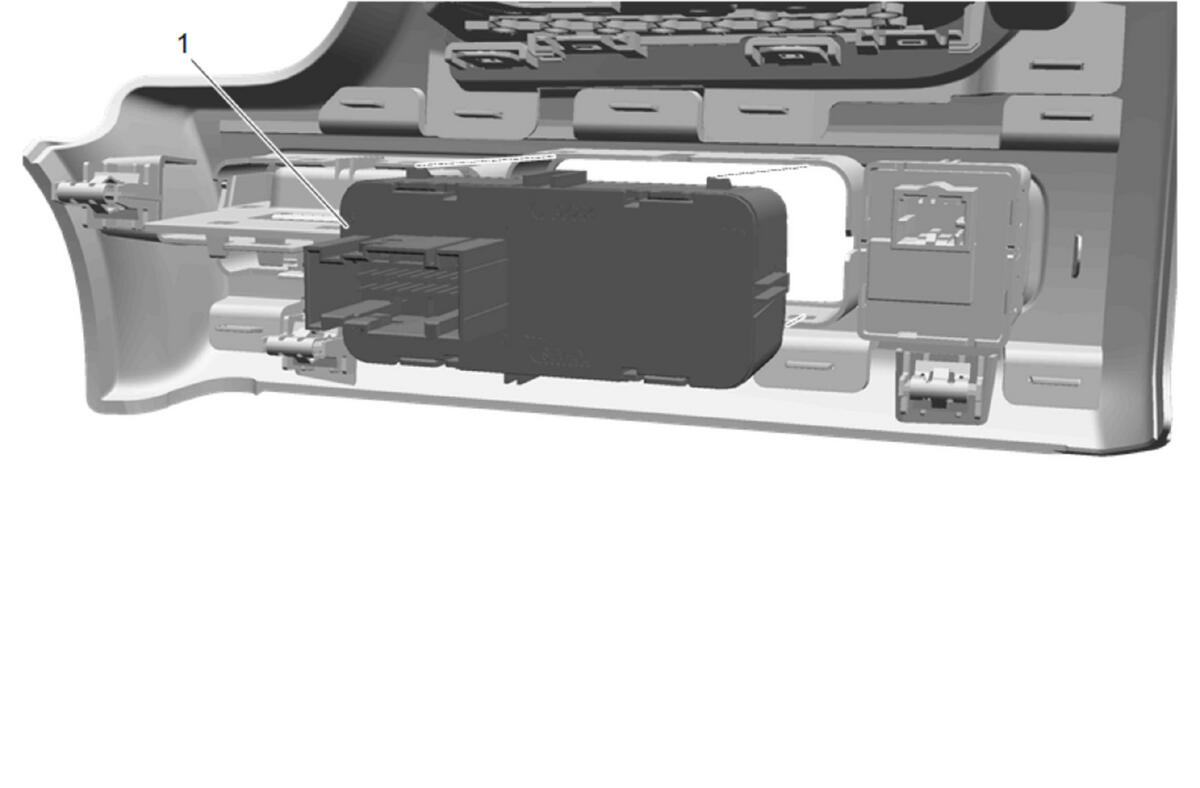

  3. GM5591976Courtesy of GENERAL MOTORS COMPANY

    Vehicle Stability Control System Switch (1) @ Instrument Panel Trim Pad - Install

  4. Secure the retaining tabs.

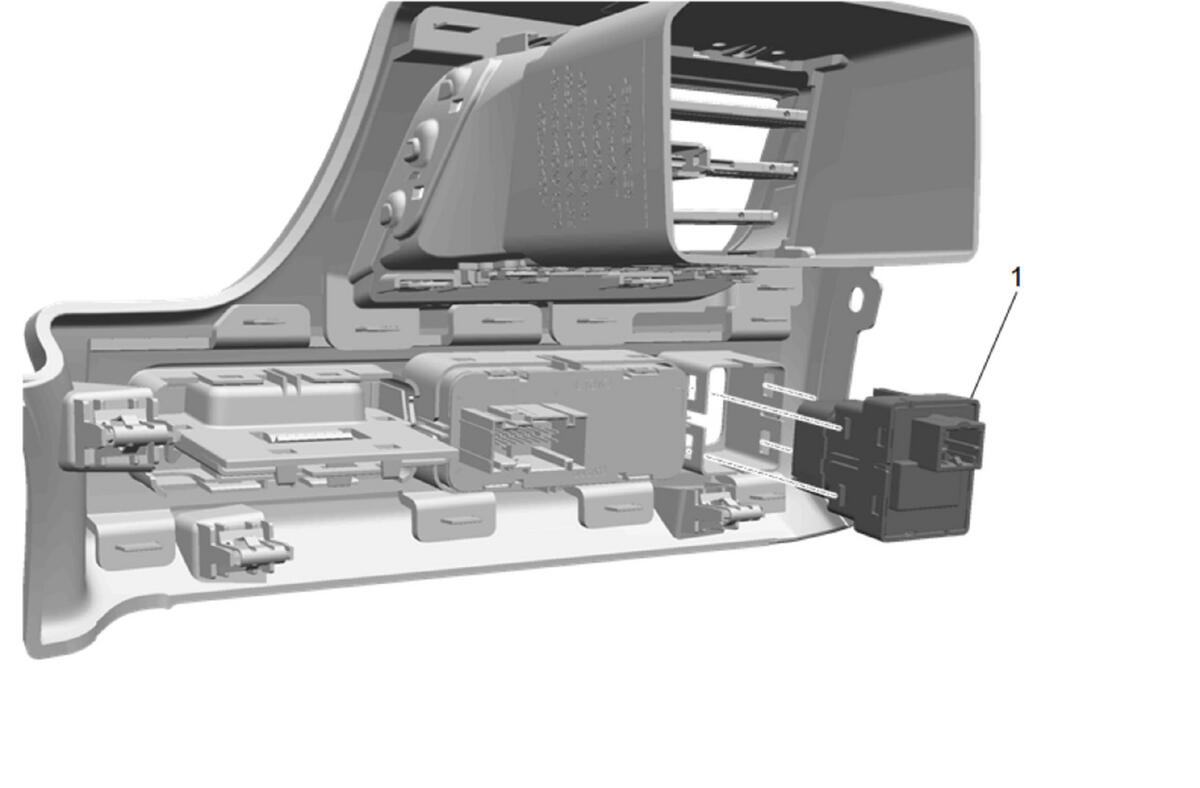

  5. GM5577669Courtesy of GENERAL MOTORS COMPANY

    Parking Brake Control Switch (1) - Install

  6. Secure the retaining tabs.

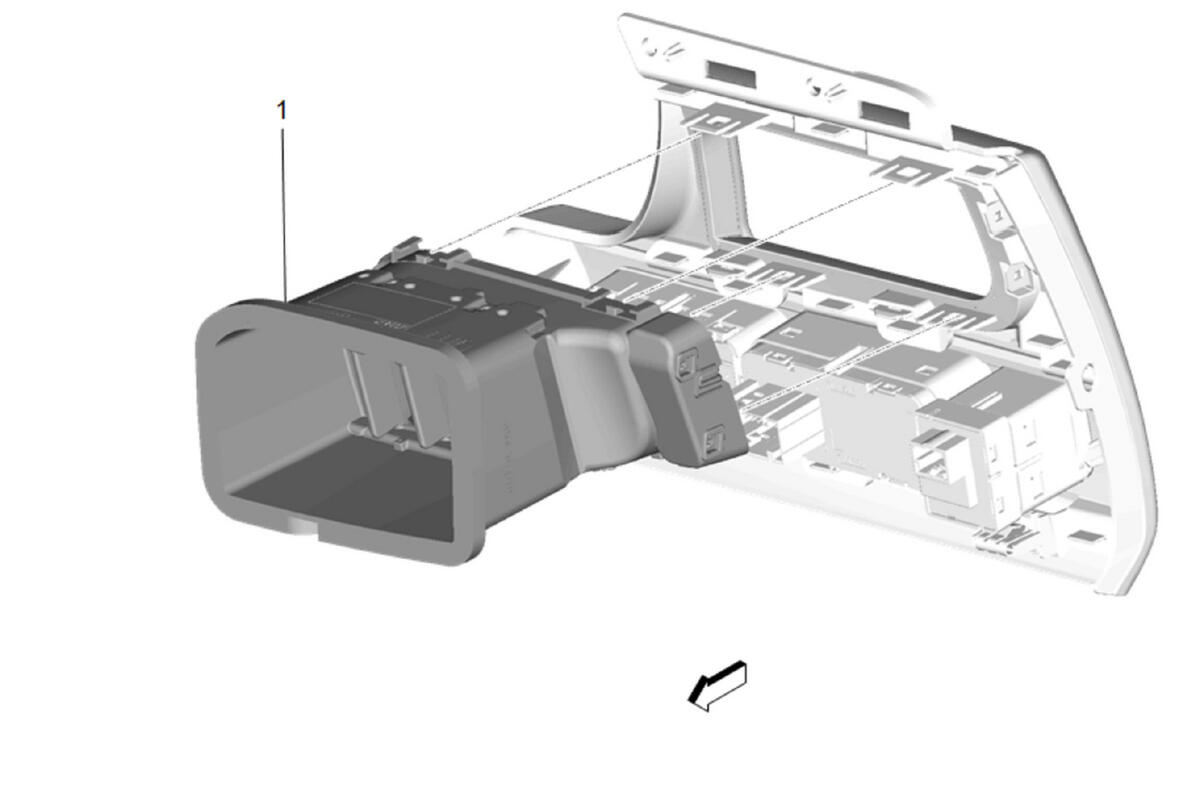

  7. GM5522070Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Outer Air Outlet (1) - Install

  8. Secure the retaining tabs.
  9. GM5517141Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  10. Instrument Panel Trim Pad (2) - Install
    11. CAUTION:

    Refer to Fastener Caution .

  11. Instrument Panel Trim Pad Bolt (1) - Install and tighten [2x] - Fastener Specifications
  12. GM5517142Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Trim Plate Applique (1) - Install

  13. GM5517144Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Fuse Block Access Hole Cover (1) - Install

  14. GM5515686Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Trim Panel Outer Filler (1) - Install
