Home >> Chevrolet >> 2022 >> Tahoe SSV >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Instrument Panel And Console Trim >> Repair Instructions >> Instrument Panel Lower Trim Panel Replacement - Left Side >> Installation Procedure

Installation Procedure

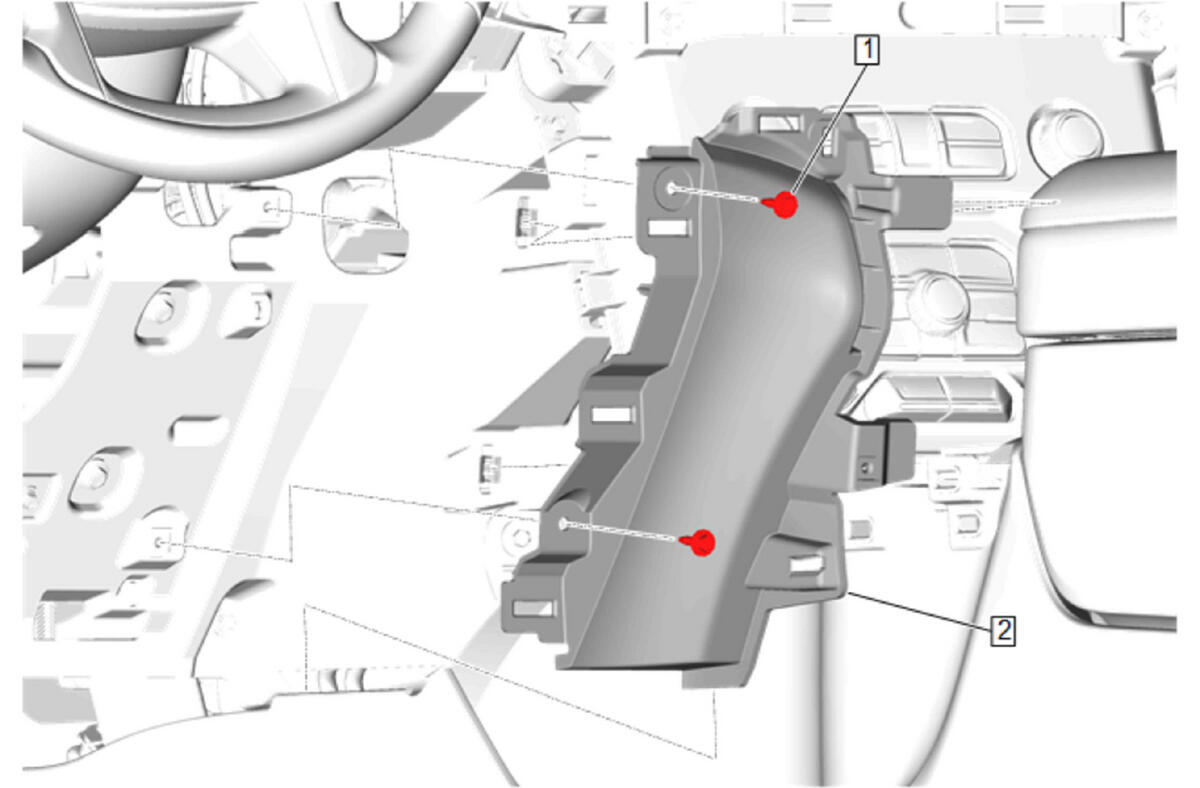

  1. GM5542561Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Trim Panel (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Instrument Panel Lower Trim Panel Bolt (1) - Install and tighten [2x] - Fastener Specifications
  3. GM5517090Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Knee Bolster (1) - Install

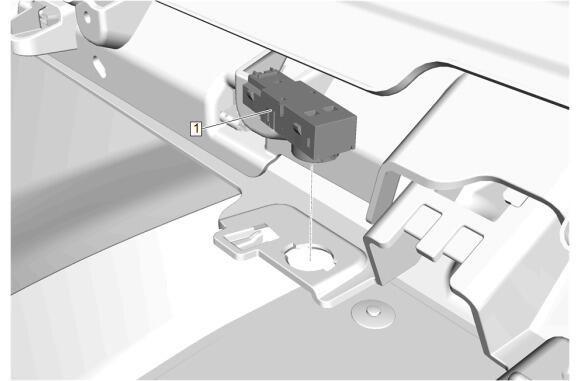

  4. GM5562886Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  5. Front Floor Courtesy Lamp (1) - Install

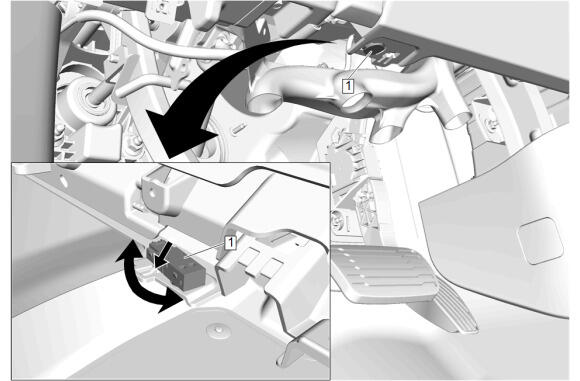

  6. GM5562885Courtesy of GENERAL MOTORS COMPANY

    Rotate the front floor courtesy lamp (1) a quarter turn clockwise to secure.

  7. Secure the retaining tab.
  8. GM5515685Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Trim Panel Insulator (1) - Install

  9. GM5515684Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Insulator Retainer (1) - Install [2x]

  10. GM5517088Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Knee Bolster Bolt (2) - Install and tighten [2x] - Fastener Specifications

  11. Hood Primary Latch Release Cable Handle (1) - Install
  12. GM5517140Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  13. Instrument Panel Switch Trim Plate (2) - Install
  14. Instrument Panel Switch Trim Plate Bolt (1) - Install and tighten - Fastener Specifications
  15. GM5517141Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  16. Instrument Panel Trim Pad (2) - Install
  17. Instrument Panel Trim Pad Bolt (1) - Install and tighten [2x] - Fastener Specifications
  18. GM5517142Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Trim Plate Applique (1) - Install

  19. GM5517144Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Fuse Block Access Hole Cover (1) - Install

  20. GM5515686Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Trim Panel Outer Filler (1) - Install

  21. GM5527231Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Center Trim Plate Applique (2) - Install

  22. Instrument Panel Lower Trim Panel Bolt (1) - Install and tighten - Fastener Specifications
  23. GM5520388Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  24. Instrument Panel Trim Pad (2) - Install
  25. Instrument Panel Upper Trim Panel Bolt (1) - Install and tighten [6x] - Fastener Specifications
  26. GM5519541Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Center Trim Plate Applique (1) - Install

  27. GM5519543Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Trim Plate Applique (1) - Install

  28. GM5518395Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Fuse Block Access Hole Cover (1) - Install

  29. GM5525886Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Applique (1) - Install

  30. GM5525884Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Lower Applique (1) - Install
