Installation Procedure

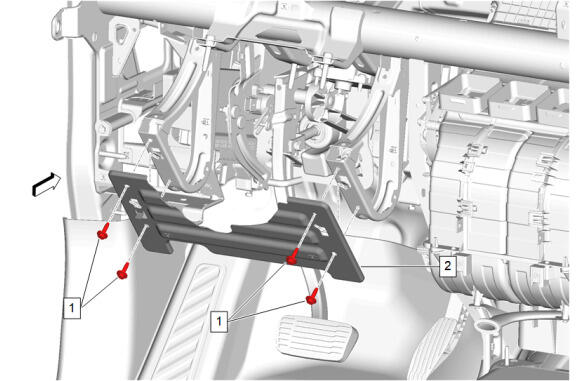

  1. GM5582622Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    Instrument Panel Knee Bolster Deflector (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Instrument Panel Driver Knee Bolster Brace Bolt (1) - Install and tighten [4x] - Fastener Specifications

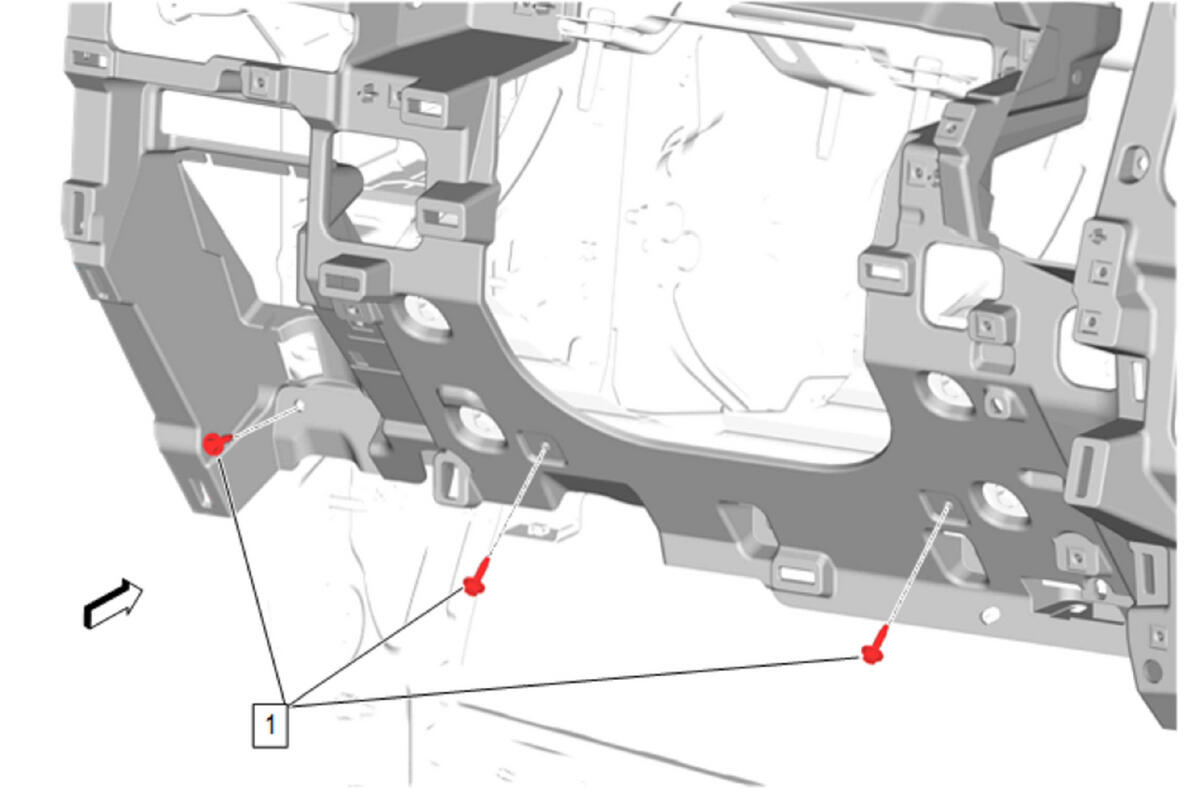

  3. GM5671140Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Carrier Bolt (1) - Install and tighten [3x] - Fastener Specifications

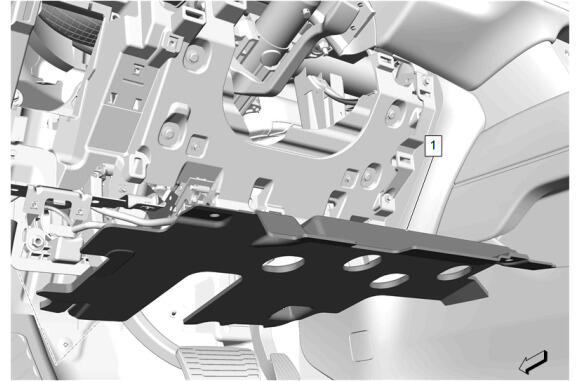

  4. GM5520387Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Route the hood release cable to its proper position

    Instrument Panel Lower Trim Panel Insulator (1) - Install

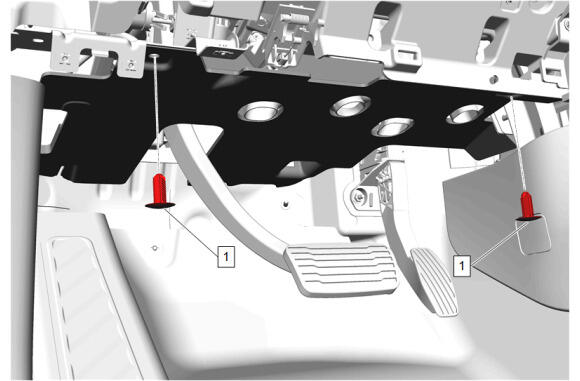

  5. GM5520386Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Insulator Retainer (1) - Install [2x]

  6. GM5517090Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector for the front floor courtesy lamp.

  7. Instrument Panel Knee Bolster (1) - Install
  8. GM5517088Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Knee Bolster Bolt (2) - Install and tighten [2x] - Fastener Specifications

  9. Hood Primary Latch Release Cable Handle (1) - Install
  10. GM5517140Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  11. Instrument Panel Switch Trim Plate (2) - Install
  12. Instrument Panel Switch Trim Plate Bolt (1) - Install and tighten - Fastener Specifications
  13. GM5517141Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  14. Instrument Panel Trim Pad (2) - Install
  15. Instrument Panel Trim Pad Bolt (1) - Install and tighten [2x] - Fastener Specifications
  16. GM5517142Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Trim Plate Applique (1) - Install

  17. GM5517144Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Fuse Block Access Hole Cover (1) - Install

  18. GM5515686Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Trim Panel Outer Filler (1) - Install
