Installation Procedure

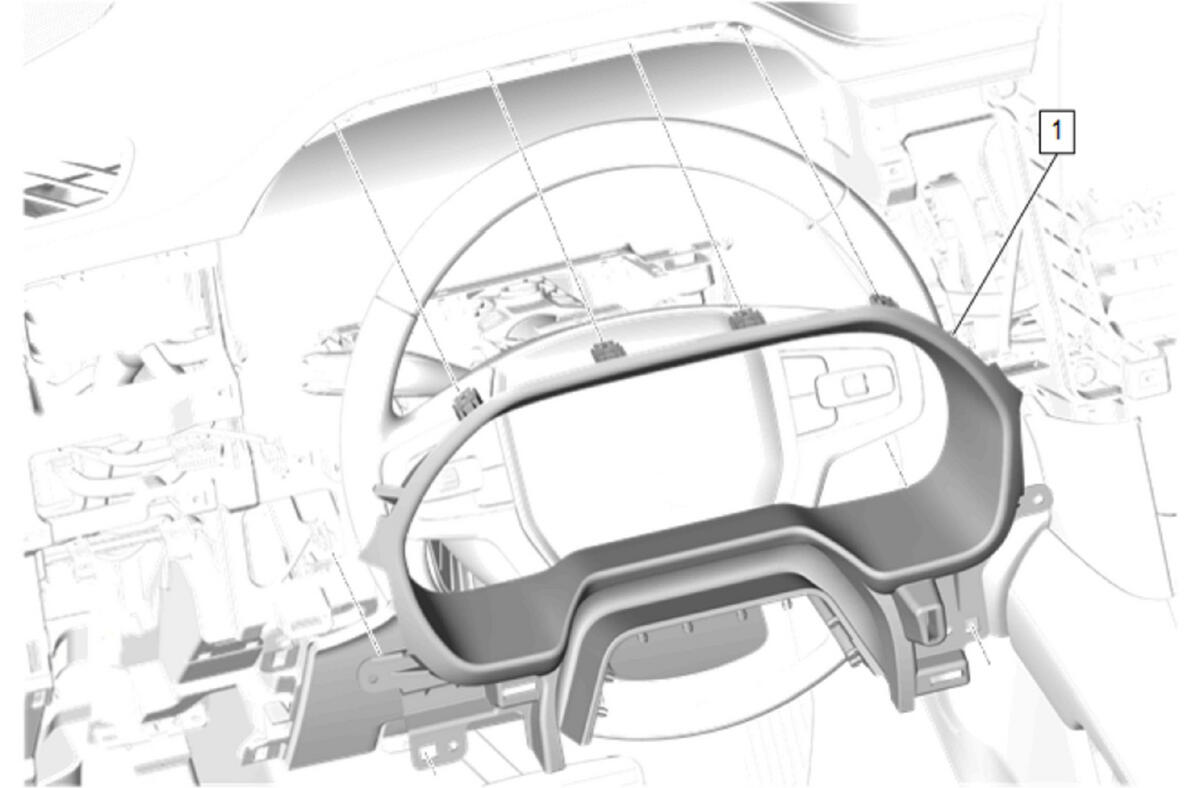

  1. GM5525661Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Cluster Trim Plate (1) - Install

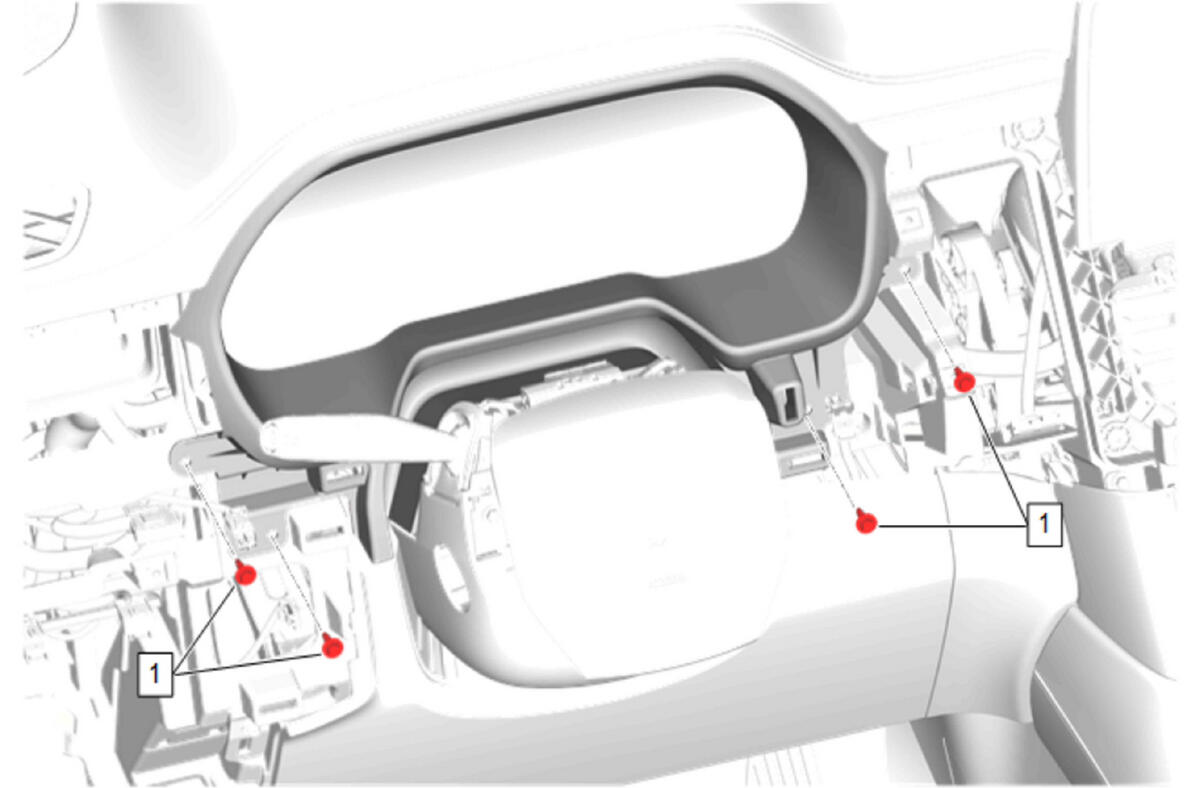

  2. GM5525657Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Instrument Panel Cluster Trim Plate Bolt (1) - Install and tighten [4x] - Fastener Specifications

  3. GM5520781Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  4. Instrument Panel Transmission Shift Opening Cover (2) - Install
  5. Instrument Panel Center Trim Panel Bolt (1) - Install and tighten [6x] - Fastener Specifications
  6. GM5527242Courtesy of GENERAL MOTORS COMPANY

    Clip the instrument panel steering column opening closeout (2) to the instrument panel steering column upper trim cover (1).

  7. GM5527241Courtesy of GENERAL MOTORS COMPANY

    Secure the instrument panel steering column upper trim cover (1) to the instrument panel steering column lower trim cover.

  8. GM5517140Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  9. Instrument Panel Switch Trim Plate (2) - Install
  10. Instrument Panel Switch Trim Plate Bolt (1) - Install and tighten - Fastener Specifications
  11. GM5517141Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  12. Instrument Panel Trim Pad (2) - Install
  13. Instrument Panel Trim Pad Bolt (1) - Install and tighten [2x] - Fastener Specifications
  14. GM5517142Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Trim Plate Applique (1) - Install

  15. GM5517144Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Fuse Block Access Hole Cover (1) - Install

  16. GM5515686Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Trim Panel Outer Filler (1) - Install

  17. GM5520388Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  18. Instrument Panel Trim Pad (2) - Install
  19. Instrument Panel Upper Trim Panel Bolt (1) - Install and tighten [6x] - Fastener Specifications
  20. GM5519541Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Center Trim Plate Applique (1) - Install

  21. GM5519543Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Trim Plate Applique (1) - Install

  22. GM5518395Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Fuse Block Access Hole Cover (1) - Install
