Installation Procedure

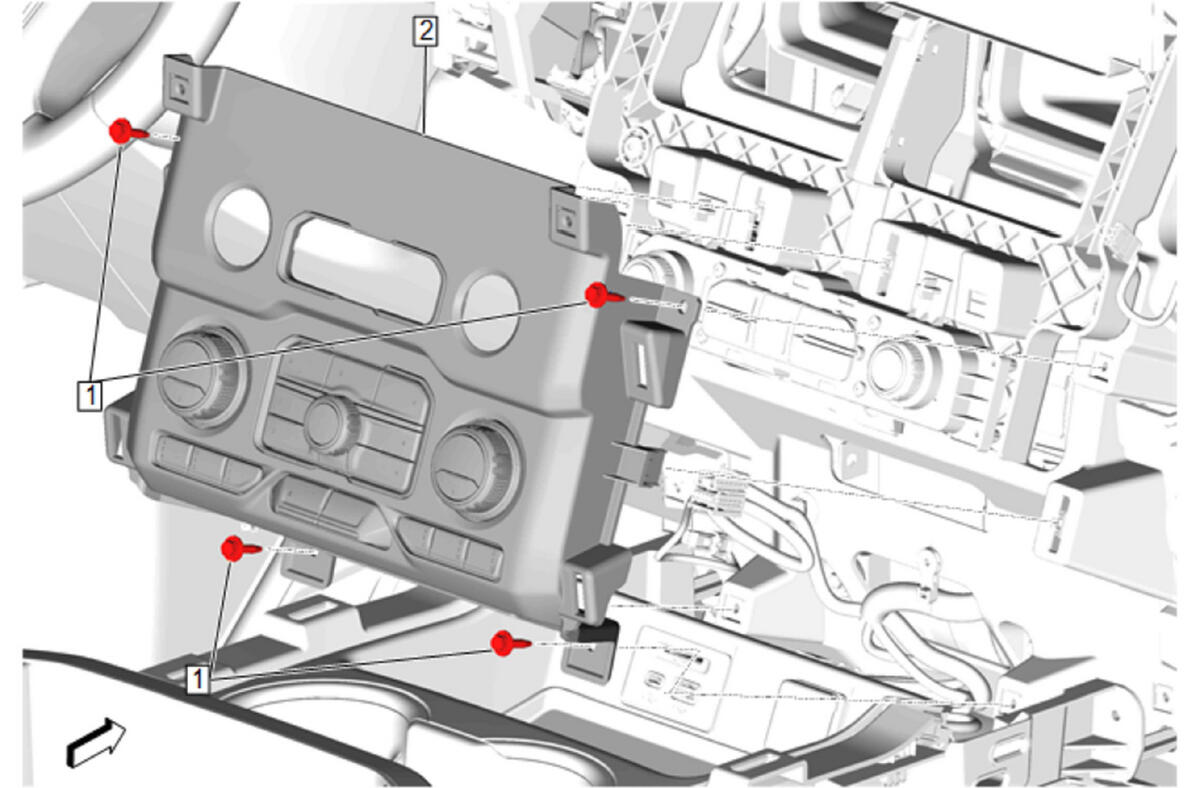

  1. GM5539609Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  2. Instrument Panel Accessory Bezel (2) - Install
    3. CAUTION:

    Refer to Fastener Caution .

  3. Instrument Panel Accessory Bezel Bolt (1) - Install and tighten [4x] - Fastener Specifications

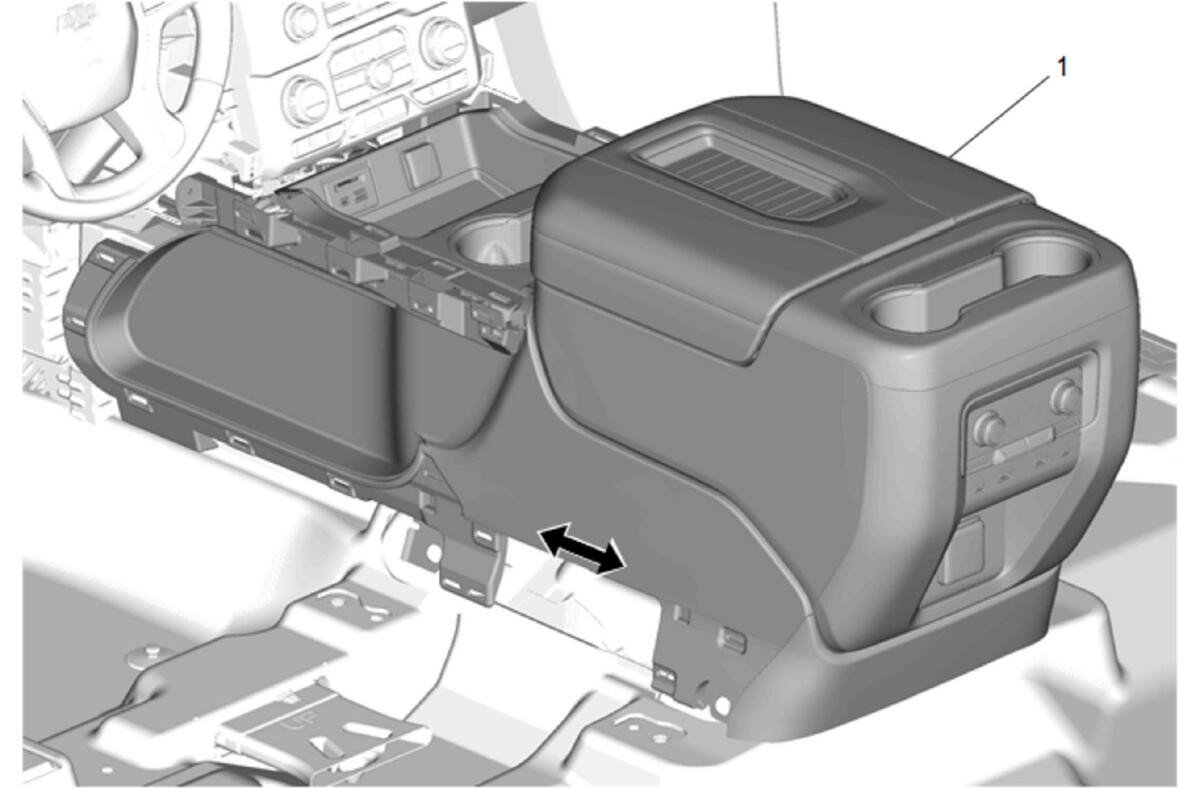

  4. GM5539248Courtesy of GENERAL MOTORS COMPANY

    Slide the front floor console (1) back into the instrument panel.

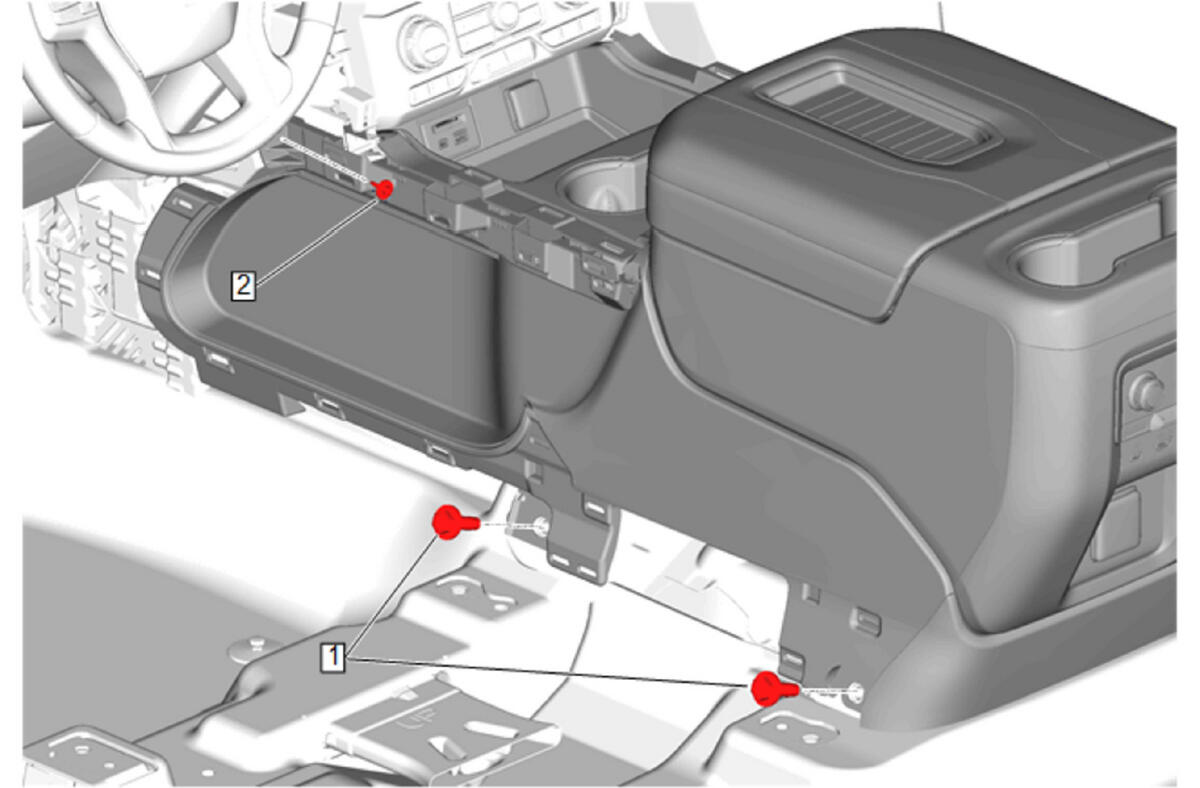

  5. GM5539246Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Bolt (1) - Install and tighten [2x] - Fastener Specifications

  6. Front Floor Console Retainer Bolt (2) - Install and tighten - Fastener Specifications

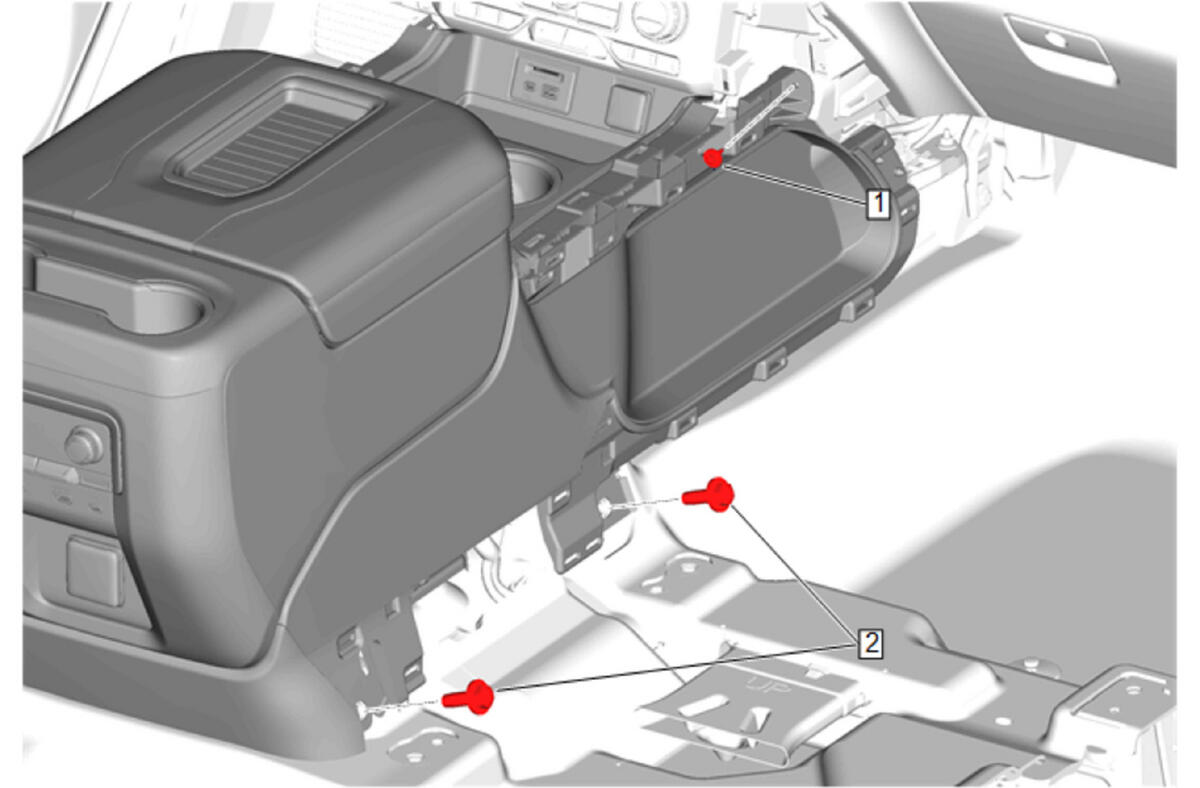

  7. GM5539247Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Retainer Bolt (1) - Install and tighten - Fastener Specifications

  8. Front Floor Console Bolt (2) - Install and tighten [2x] - Fastener Specifications
  9. GM5536231Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Bolt Access Hole Cover (1) - Install

  10. GM5536180Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Extension Panel (1) - Install

  11. GM5525889Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Center Trim Plate Applique (2) - Install

  12. Instrument Panel Lower Trim Panel Bolt (1) - Install and tighten - Fastener Specifications
  13. GM5525888Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Applique (1) - Install

  14. GM5525885Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Lower Applique (1) - Install

  15. GM5520781Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  16. Instrument Panel Transmission Shift Opening Cover (2) - Install
  17. Instrument Panel Center Trim Panel Bolt (1) - Install and tighten [6x] - Fastener Specifications
  18. GM5527231Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Center Trim Plate Applique (2) - Install

  19. Instrument Panel Lower Trim Panel Bolt (1) - Install and tighten - Fastener Specifications
  20. GM5520388Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  21. Instrument Panel Trim Pad (2) - Install
  22. Instrument Panel Upper Trim Panel Bolt (1) - Install and tighten [6x] - Fastener Specifications
  23. GM5519541Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Center Trim Plate Applique (1) - Install

  24. GM5519543Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Trim Plate Applique (1) - Install

  25. GM5518395Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Fuse Block Access Hole Cover (1) - Install

  26. GM5536230Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Bolt Access Hole Cover (1) - Install

  27. GM5536178Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Extension Panel (3) - Install

    28. CAUTION:

    Refer to Fastener Caution .

  28. Front Floor Console Extension Bolt (2) - Install and tighten - Fastener Specifications
  29. Front Floor Console Extension Panel Bolt Access Hole Cover (1) - Install
  30. GM5525886Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Applique (1) - Install

  31. GM5525884Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Lower Applique (1) - Install

  32. GM5573683Courtesy of GENERAL MOTORS COMPANY

    Front Seat (2) - Install [2x] - Front Seat Removal and Installation
