Installation Procedure

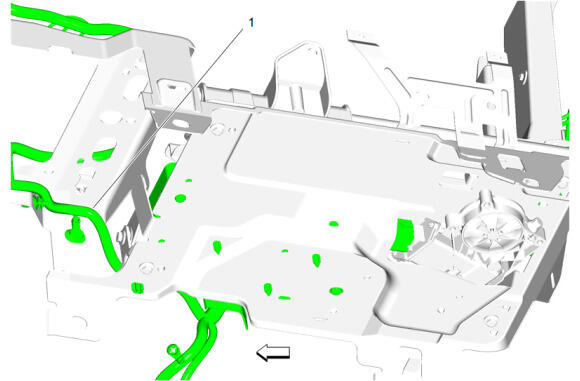

  1. GM5577810Courtesy of GENERAL MOTORS COMPANY
    NOTE:
    • Quantity of clips and routing of the front floor console wiring harness may vary based on option content.
    • Some components not shown for graphic clarity.

    Front Floor Console Wiring Harness (1) - Install

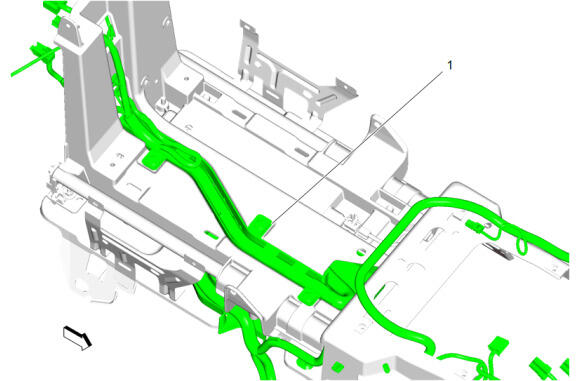

  2. GM5577808Courtesy of GENERAL MOTORS COMPANY
    NOTE:
    • Quantity of clips and routing of the front floor console wiring harness may vary based on option content.
    • Some components not shown for graphic clarity.

    Front Floor Console Wiring Harness (1) - Install

  3. Connect and position the wiring harness.
  4. GM5552326Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Carrier (3) - Install

  5. Connect and position the wiring harness.
    6. CAUTION:

    Refer to Fastener Caution .

  6. Front Floor Console Intermediate Bracket Bolt (2) - Install and tighten [4x] - Fastener Specifications
  7. Front Floor Console Retainer Bolt (1) - Install and tighten [2x] - Fastener Specifications
  8. GM6019106Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  9. Front Floor Console Cup Holder Trim Plate (1) - Install
  10. GM5696694Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Stowage Tray (1) - Install

  11. GM5544156Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Armrest Pivot Pin (1) - Install

  12. Front Floor Console Stowage Tray Bolt (2) - Install and tighten [2x] - Fastener Specifications
  13. GM5544153Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Stowage Tray Bolt (1) - Install and tighten [2x] - Fastener Specifications

  14. Front Floor Console Armrest Hinge Clip (2) - Install
  15. GM5696538Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Compartment (1) - Install

  16. GM5577794Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    Front Floor Console Bracket Bolt (2) - Install and tighten [4x] - Fastener Specifications

  17. Front Floor Console Compartment Liner (1) - Install
  18. GM5549160Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Armrest (3) - Install

  19. Front Floor Console Armrest Pivot Pin (2) - Install
  20. Front Floor Console Armrest Hinge Clip (1) - Install
  21. GM5696477Courtesy of GENERAL MOTORS COMPANY

    Connect the front floor console bin lamp connector (1).

  22. GM5536449Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  23. Front Floor Console Rear Trim Panel (2) - Install
  24. Front Floor Console Rear Cover Bolt (1) - Install and tighten - Fastener Specifications
  25. GM5536447Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Rear Cup Holder (3) - Install

  26. Front Floor Console Cup Holder Bolt (2) - Install and tighten - Fastener Specifications
    27. NOTE:

    Make sure the liner is properly seated under the front floor console compartment bezel.

  27. Front Floor Console Rear Cup Holder Liner (1) - Install
  28. GM5537710Courtesy of GENERAL MOTORS COMPANY

    Connect and position the wiring harness.

  29. Front Floor Rear Console Side Trim Panel (1) - Install
  30. GM5536231Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Bolt Access Hole Cover (1) - Install

  31. GM5536180Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Extension Panel (1) - Install

  32. GM5525888Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Applique (1) - Install

  33. GM5525885Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Lower Applique (1) - Install

  34. GM5537709Courtesy of GENERAL MOTORS COMPANY

    Front Floor Rear Console Side Trim Panel (1) - Install

  35. GM5537637Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Rear Trim Lower Panel (1) - Install

  36. GM5536230Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Bolt Access Hole Cover (1) - Install

  37. GM5536178Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Extension Panel (3) - Install

  38. Front Floor Console Extension Bolt (2) - Install and tighten - Fastener Specifications
  39. Front Floor Console Extension Panel Bolt Access Hole Cover (1) - Install
  40. GM5525886Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Applique (1) - Install

  41. GM5525884Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Lower Applique (1) - Install

  42. Return the armrest compartment to the close position.
  43. Front Seat - Right Side - Install - Front Seat Removal and Installation
