Installation Procedure

  1. With the aid of an assistant, install the console to the vehicle. (1)
  2. GM5569163Courtesy of GENERAL MOTORS COMPANY

    Connect and position the wiring harness.

  3. Front Floor Console (1) - Install

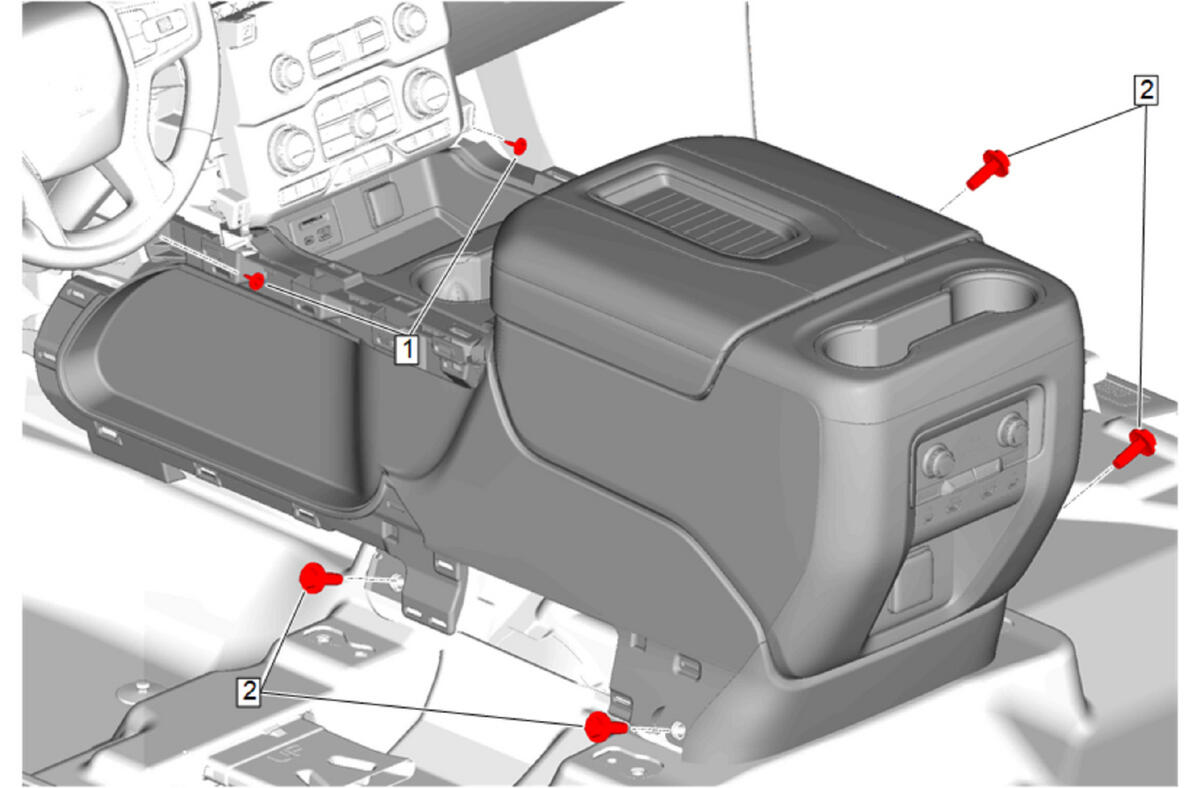

  4. GM5569161Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Front Floor Console Retainer Bolt (1) - Install and tighten [2x] - Fastener Specifications

  5. Front Floor Console Bolt (2) - Install and tighten [4x] - Fastener Specifications
  6. GM5536231Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Bolt Access Hole Cover (1) - Install

  7. GM5536180Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Extension Panel (1) - Install

  8. GM5525888Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Applique (1) - Install

  9. GM5525885Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Lower Applique (1) - Install

  10. GM5536230Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Bolt Access Hole Cover (1) - Install

  11. GM5536178Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Extension Panel (3) - Install

  12. Front Floor Console Extension Bolt (2) - Install and tighten - Fastener Specifications
  13. Front Floor Console Extension Panel Bolt Access Hole Cover (1) - Install
  14. GM5525886Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Applique (1) - Install

  15. GM5525884Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Lower Applique (1) - Install

  16. GM5573683Courtesy of GENERAL MOTORS COMPANY

    Front Seat (2) - Install [2x] - Front Seat Removal and Installation
