Installation Procedure

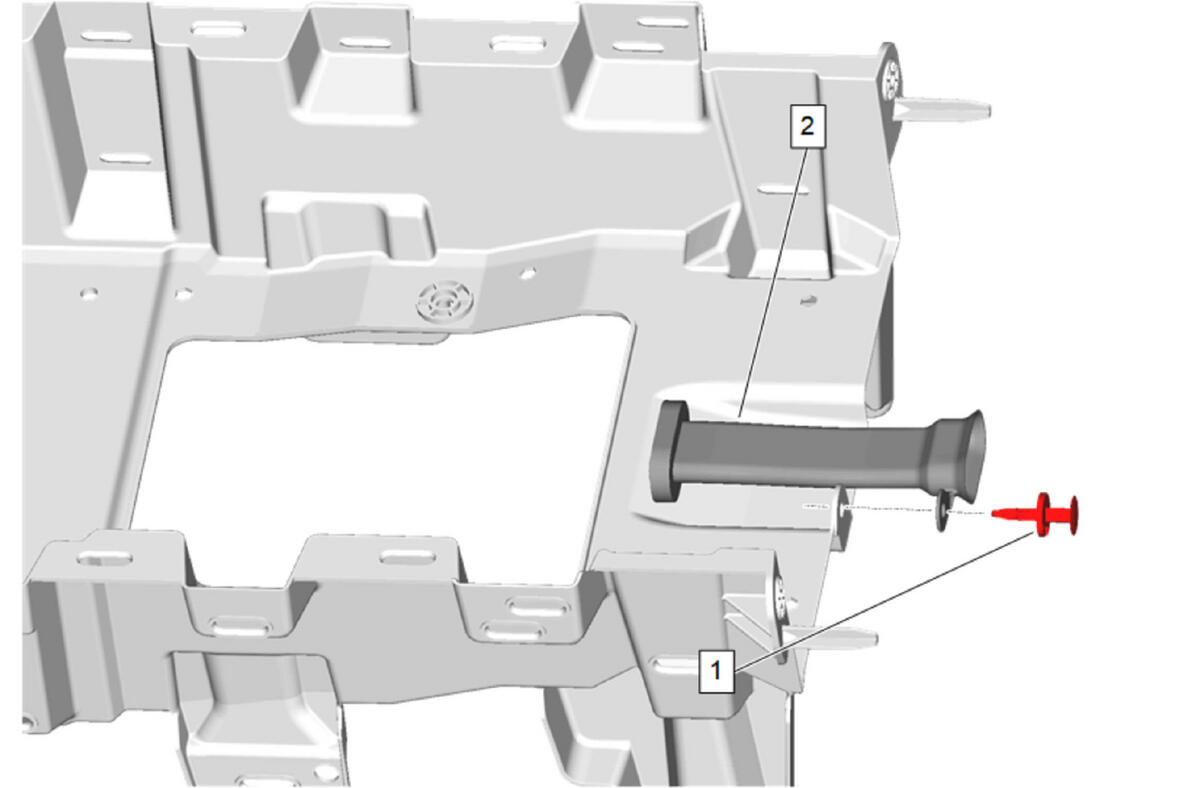

  1. GM5607920Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Auxiliary Cooling Intermediate Duct (2) - Install

  2. Front Floor Console Auxiliary Cooling Duct Retainer (1) - Install

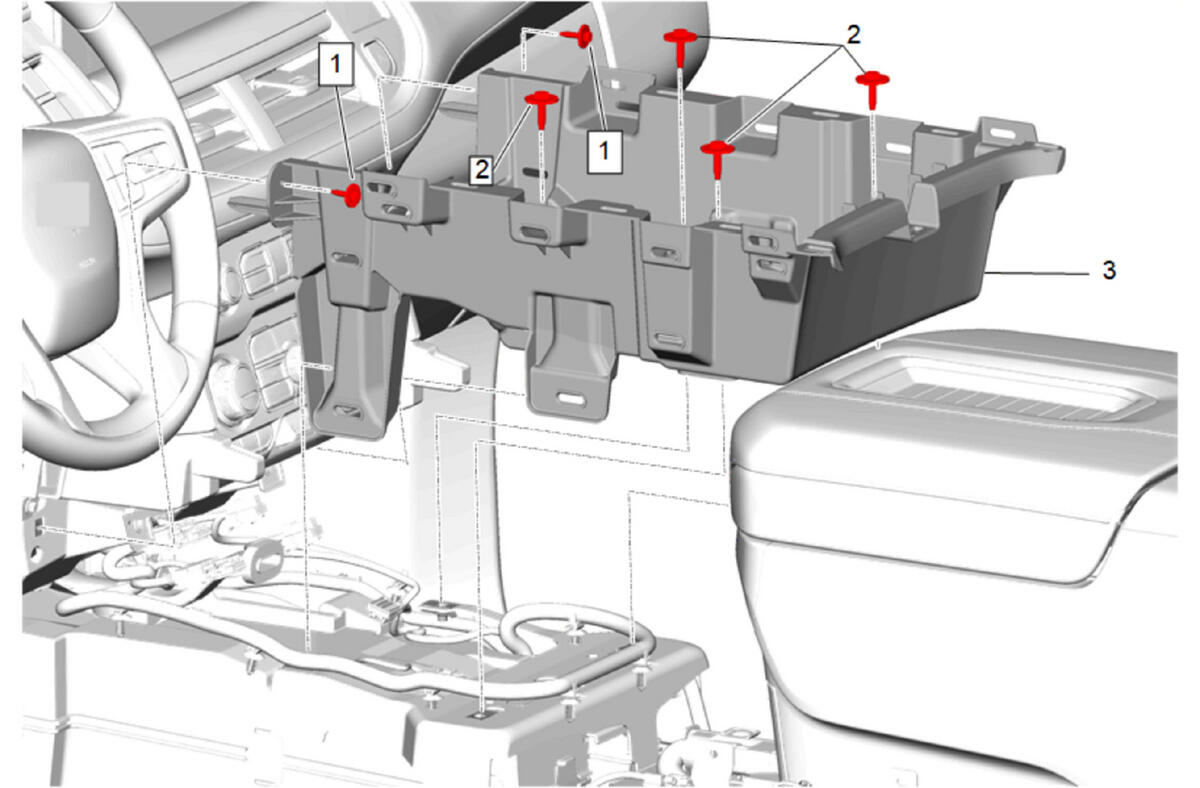

  3. GM6018007Courtesy of GENERAL MOTORS COMPANY

    Connect and position the wiring harness.

  4. Front Floor Console Carrier (3) - Install
    5. CAUTION:

    Refer to Fastener Caution .

  5. Front Floor Console Intermediate Bracket Bolt (2) - Install and tighten [4x] - Fastener Specifications
  6. Front Floor Console Retainer Bolt (1) - Install and tighten [2x] - Fastener Specifications
  7. GM5552325Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    Connect the electrical connectors.

  8. Front Floor Console Cup Holder Trim Plate (1) - Install

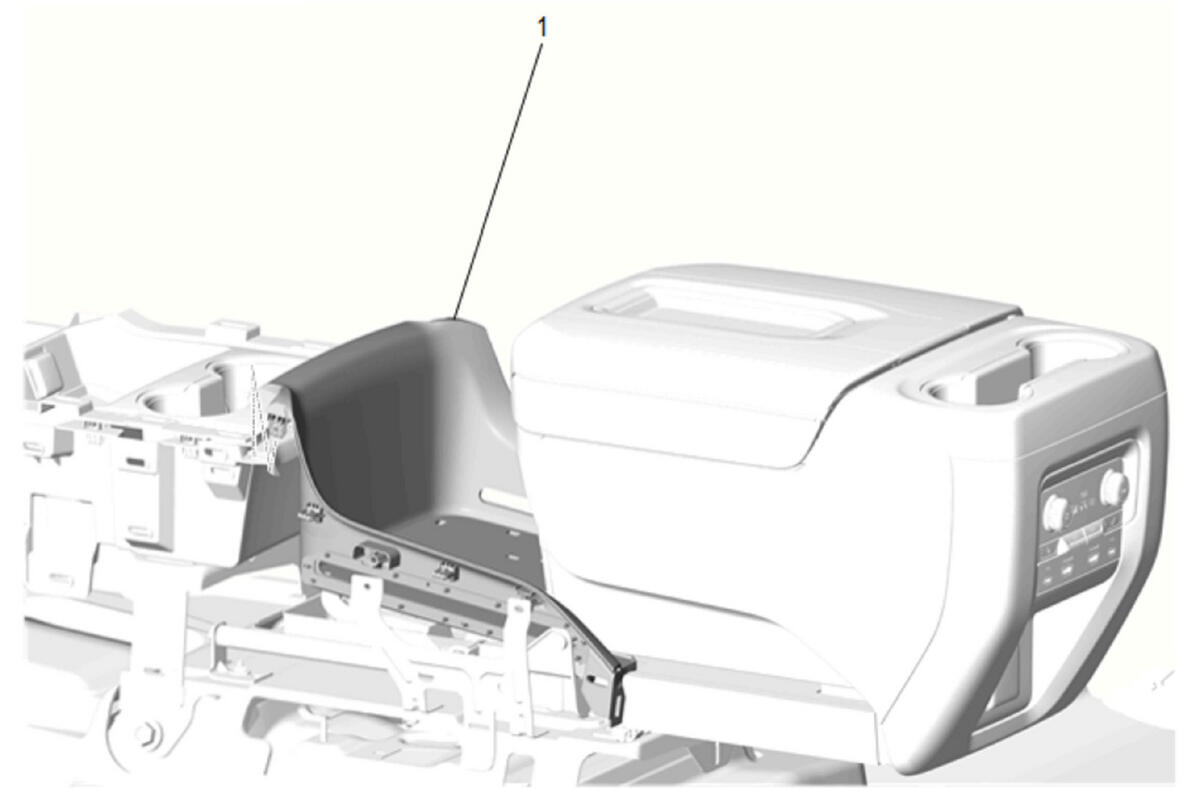

  9. GM6017807Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Stowage Tray (1) - Install

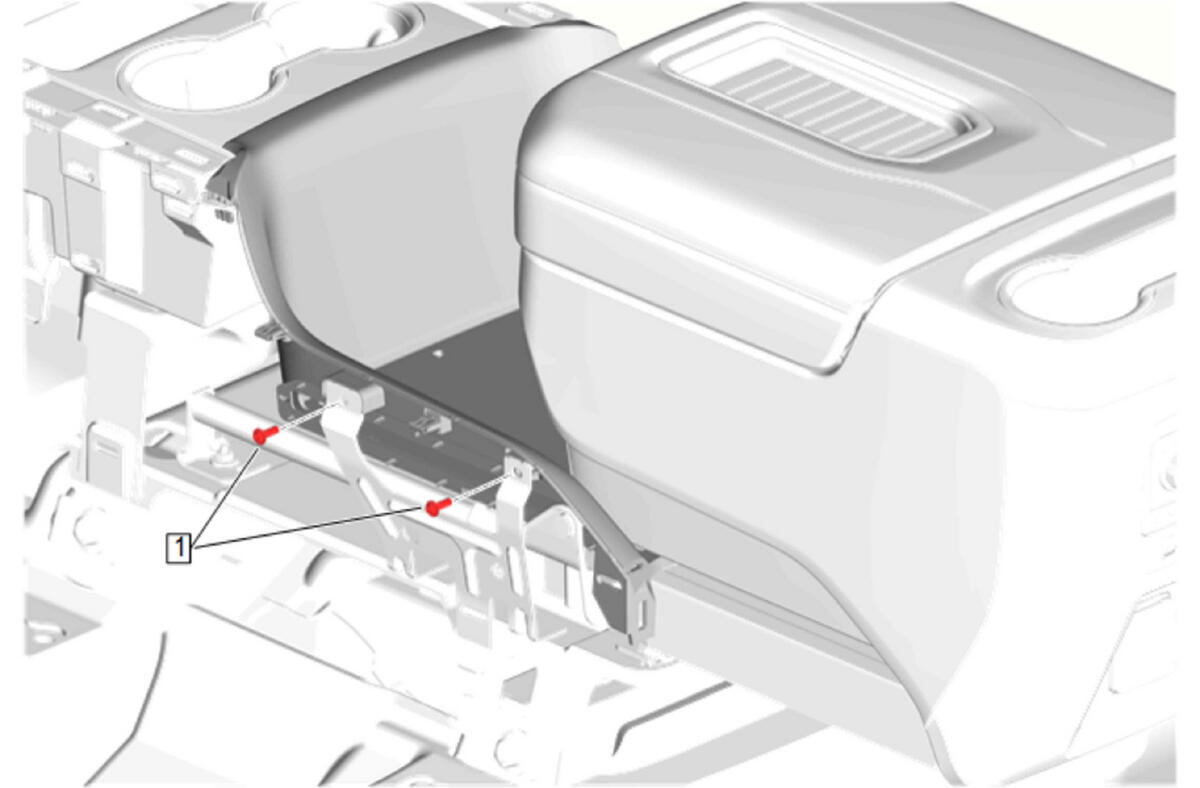

  10. GM6017803Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Storage Tray Bolt (1) - Install and tighten [2x] - Fastener Specifications

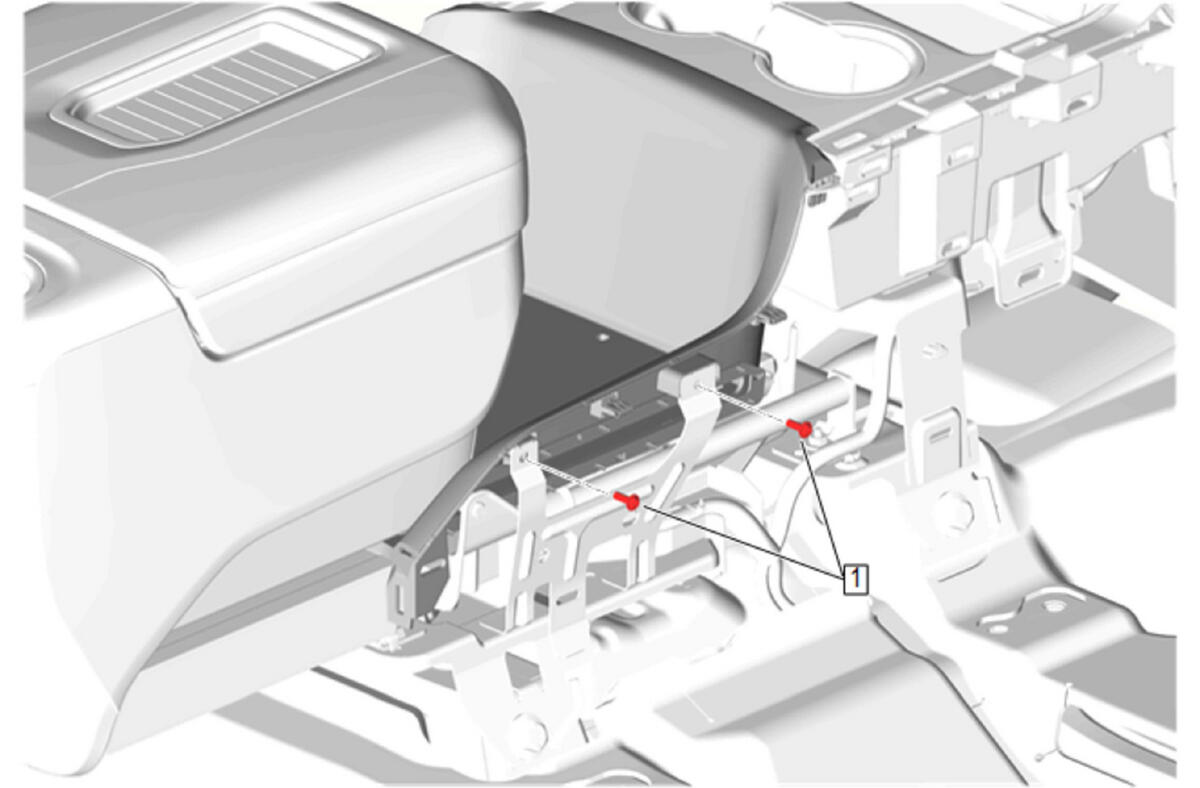

  11. GM6017801Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Storage Tray Bolt (1) - Install and tighten [2x] - Fastener Specifications

  12. GM5537710Courtesy of GENERAL MOTORS COMPANY

    Connect and position the wiring harness.

  13. Front Floor Rear Console Side Trim Panel (1) - Install
  14. GM5536231Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Bolt Access Hole Cover (1) - Install

  15. GM5536180Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Extension Panel (1) - Install

  16. GM5525888Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Applique (1) - Install

  17. GM5525885Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Lower Applique (1) - Install

  18. GM5537709Courtesy of GENERAL MOTORS COMPANY

    Front Floor Rear Console Side Trim Panel (1) - Install

  19. GM5537637Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Rear Trim Lower Panel (1) - Install

  20. GM5536230Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Bolt Access Hole Cover (1) - Install

  21. GM5536178Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Extension Panel (3) - Install

  22. Front Floor Console Extension Bolt (2) - Install and tighten - Fastener Specifications
  23. Front Floor Console Extension Panel Bolt Access Hole Cover (1) - Install
  24. GM5525886Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Applique (1) - Install

  25. GM5525884Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Lower Applique (1) - Install

  26. Return the armrest compartment to the close position.
  27. Return the seat to its original position.
