Installation Procedure

  1. GM5577803Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Base (1) - Install

  2. Connect and position the wiring harness.
  3. GM5577801Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Front Floor Console Bolt (1) - Install and tighten [4x] - Fastener Specifications

  4. GM5552326Courtesy of GENERAL MOTORS COMPANY

    Connect and position the wiring harness.

  5. Front Floor Console Carrier (3) - Install
  6. Front Floor Console Intermediate Bracket Bolt (2) - Install and tighten [4x] - Fastener Specifications
  7. Front Floor Console Retainer Bolt (1) - Install and tighten [2x] - Fastener Specifications

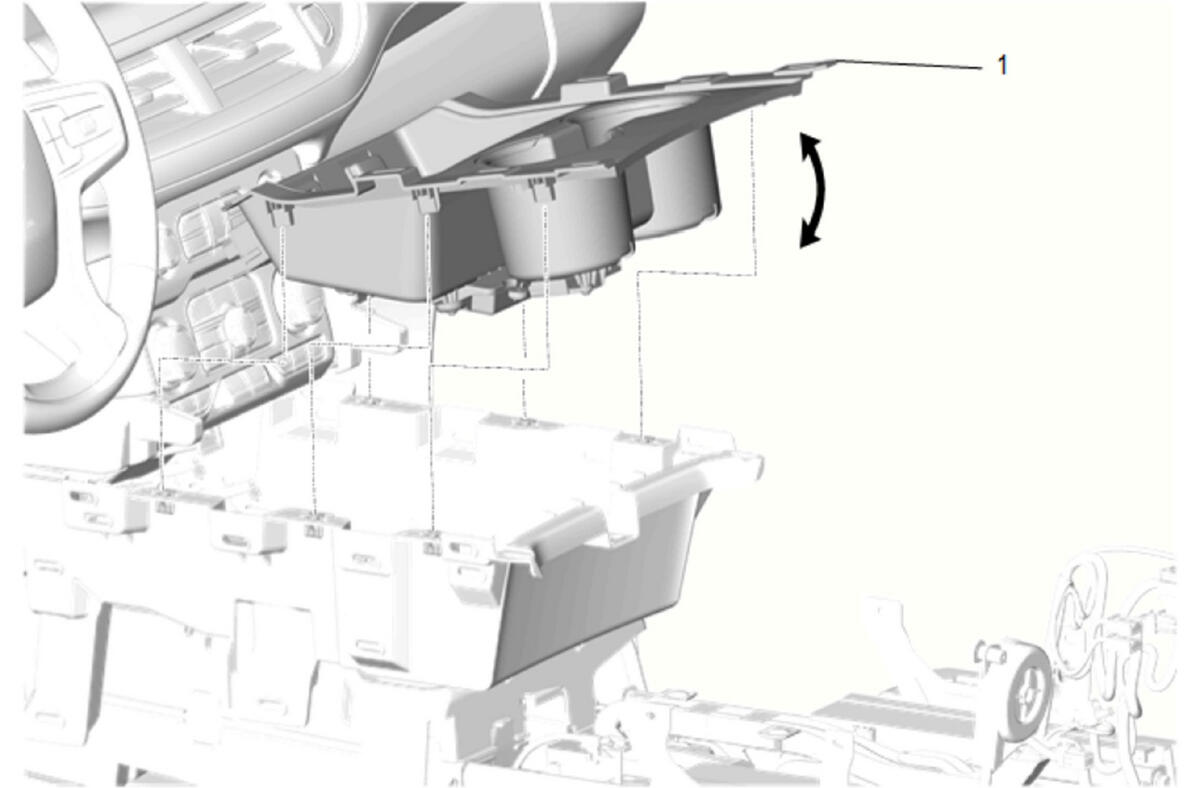

  8. GM6019106Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  9. Front Floor Console Cup Holder Trim Plate (1) - Install
  10. GM5696695Courtesy of GENERAL MOTORS COMPANY

    Connect the front floor console armrest cable (1) to the cable union and front floor console base.

  11. GM5696694Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Stowage Tray (1) - Install

  12. GM5544156Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Armrest Pivot Pin (1) - Install

  13. Front Floor Console Stowage Tray Bolt (2) - Install and tighten [2x] - Fastener Specifications
  14. GM5544153Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Stowage Tray Bolt (1) - Install and tighten [2x] - Fastener Specifications

  15. Front Floor Console Armrest Hinge Clip (2) - Install
  16. GM5696538Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Compartment (1) - Install

  17. GM5577794Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    Front Floor Console Bracket Bolt (2) - Install and tighten [4x] - Fastener Specifications

  18. Front Floor Console Compartment Liner (1) - Install
  19. GM5549160Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Armrest (3) - Install

  20. Front Floor Console Armrest Pivot Pin (2) - Install
  21. Front Floor Console Armrest Hinge Clip (1) - Install
  22. GM5696477Courtesy of GENERAL MOTORS COMPANY

    Connect the front floor console bin lamp connector (1).

  23. GM5536449Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  24. Front Floor Console Rear Trim Panel (2) - Install
  25. Front Floor Console Rear Cover Bolt (1) - Install and tighten - Fastener Specifications
  26. GM5536447Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Rear Cup Holder (3) - Install

  27. Front Floor Console Cup Holder Bolt (2) - Install and tighten - Fastener Specifications
    28. NOTE:

    Make sure the liner is properly seated under the front floor console compartment bezel.

  28. Front Floor Console Rear Cup Holder Liner (1) - Install
  29. GM5537710Courtesy of GENERAL MOTORS COMPANY

    Connect and position the wiring harness.

  30. Front Floor Rear Console Side Trim Panel (1) - Install
  31. GM5536231Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Bolt Access Hole Cover (1) - Install

  32. GM5536180Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Extension Panel (1) - Install

  33. GM5525888Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Applique (1) - Install

  34. GM5525885Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Lower Applique (1) - Install

  35. GM5537709Courtesy of GENERAL MOTORS COMPANY

    Front Floor Rear Console Side Trim Panel (1) - Install

  36. GM5537637Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Rear Trim Lower Panel (1) - Install

  37. GM5536230Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Bolt Access Hole Cover (1) - Install

  38. GM5536178Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Extension Panel (3) - Install

  39. Front Floor Console Extension Bolt (2) - Install and tighten - Fastener Specifications
  40. Front Floor Console Extension Panel Bolt Access Hole Cover (1) - Install
  41. GM5525886Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Applique (1) - Install

  42. GM5525884Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Lower Applique (1) - Install

  43. Return the armrest compartment to the close position.
  44. GM5573683Courtesy of GENERAL MOTORS COMPANY

    Front Seat (2) - Install [2x] - Front Seat Removal and Installation
