Removal Procedure

Courtesy of GENERAL MOTORS COMPANY

Using a flat-bladed plastic trim tool, release the retaining clips.
Front Floor Console Lower Applique (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Using a flat-bladed plastic trim tool, release the retaining clips.
Front Floor Console Applique (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Use a flat bladed plastic trim tool.

Front Floor Console Extension Panel Bolt Access Hole Cover (1) - Remove
Front Floor Console Extension Bolt (2) - Remove
Move the front seat to access the retainers.
Front Floor Console Extension Panel (3) - Remove
Courtesy of GENERAL MOTORS COMPANY

Using a flat-bladed plastic trim tool, release the retaining clips.
Front Floor Console Bolt Access Hole Cover (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

NOTE:
You may have to slide the armrest back to better access the retainers.

Using a flat-bladed plastic trim tool, release the retaining clips.
Front Floor Console Rear Trim Lower Panel (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Using a flat-bladed plastic trim tool, release the retaining clips.
Front Floor Rear Console Side Trim Panel (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Using a flat-bladed plastic trim tool, release the retaining clips.
Front Floor Console Lower Applique (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Using a flat-bladed plastic trim tool, release the retaining clips.
Front Floor Console Applique (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Use a flat bladed plastic trim tool.

Move the front seat to access the retainers.
Front Floor Console Extension Panel (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Using a flat-bladed plastic trim tool, release the retaining clips.
Front Floor Console Bolt Access Hole Cover (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Using a flat-bladed plastic trim tool, release the retaining clips.
Disconnect and reposition harness as necessary.
Front Floor Rear Console Side Trim Panel (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Rear Cup Holder Liner (1) - Remove
Front Floor Console Cup Holder Bolt (2) - Remove
Using a flat-bladed plastic trim tool, release the retaining clips.
Front Floor Console Rear Cup Holder (3) - Remove
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Rear Cover Bolt (1) - Remove
Using a flat-bladed plastic trim tool, release the retaining clips.
Front Floor Console Rear Trim Panel (2) - Reposition
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

Disconnect the front floor console bin lamp connector (1).
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Use a suitable tool.

Front Floor Console Armrest Hinge Clip (1) - Remove

WARNING:

The armrest hinge springs are under pressure. Remove the pivot pin carefully in order to avoid bodily injury.

Front Floor Console Armrest Pivot Pin (2) - Remove
Front Floor Console Armrest (3) - Reposition
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

Front Floor Console Compartment Liner (1) - Remove
Front Floor Console Bracket Bolt (2) - Remove [4x]
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Compartment (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Stowage Tray Bolt (1) - Remove [2x]

NOTE:

Use a suitable tool.

Front Floor Console Armrest Hinge Clip (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Armrest Pivot Pin (1) - Remove
Front Floor Console Stowage Tray Bolt (2) - Remove [2x]
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Stowage Tray (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Release the front floor console armrest cable (1) from the cable union and front floor console base.

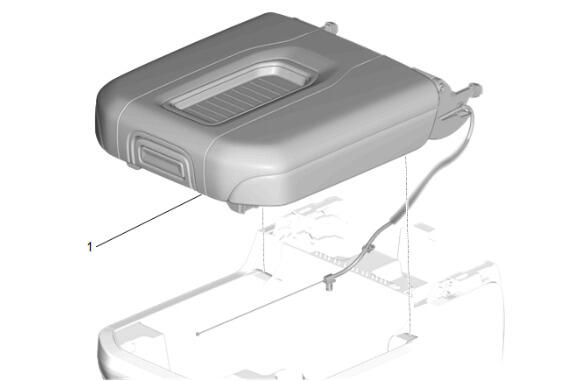

Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Armrest (1) - Remove
