Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

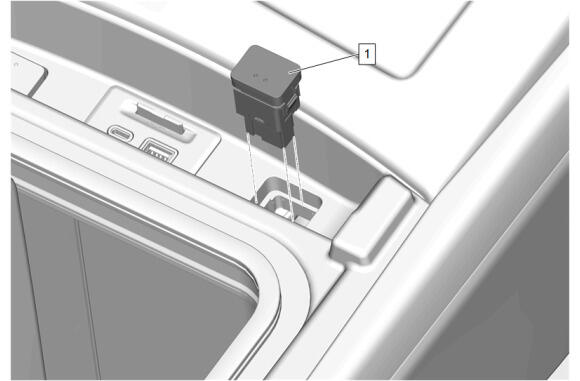

Beverage Cooler Switch (1) - Install
Secure the retaining tabs.
Connect the electrical connector.
Close the front floor console armrest.
Courtesy of GENERAL MOTORS COMPANY

Install front floor console bracket (1), front floor console intermediate bracket (2) and front floor console compartment cooler (3) as an assembly into the front floor console and connect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

Front Floor Console Compartment Bolt (1) - Install and tighten [2x] - Fastener Specifications
Front Floor Console Rear Bracket Bolt (2) - Install and tighten [3x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Intermediate Bracket Bolt (1) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connectors.
Front Floor Console Cup Holder Trim Plate (2) - Install
Front Floor Rear Console Side Trim Panel (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connectors.
Front Floor Console Rear Trim Panel (2) - Install
Front Floor Console Rear Cover Bolt (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Rear Cup Holder (3) - Install
Front Floor Console Cup Holder Bolt (2) - Install and tighten - Fastener Specifications

NOTE:

Make sure the liner is properly seated under the front floor console compartment bezel.

Front Floor Console Rear Cup Holder Liner (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console - Install - Front Floor Console Removal and Installation (DCK, D07) , or Front Floor Console Removal and Installation (DCH)
