Installation Procedure
Install transmission vent hose. (2)
- Install the 2 transmission vent hose retainers (1).
- Raise the transmission into place.
Transmission Support Crossmember (1) - Install
Transmission Support Crossmember Bolt (3) - Install [4x]
- Transmission Support Crossmember Nut (2) - Install and tighten [4x] - Fastener Specifications
- Transmission Mount Nut (1) - Install and tighten - Fastener Specifications
- Remove the transmission jack.

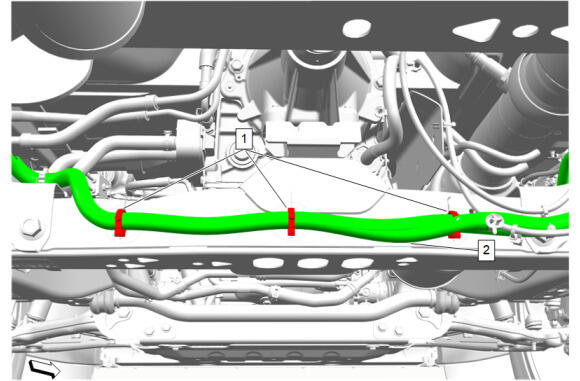

Install the wiring harness (2) into the 3 retainers (1).
Exhaust System Front Gasket (2) - Install NEW
- Nitrogen Oxides Catalytic Converter (1) - Install
- CAUTION:
Refer to Fastener Caution .
Exhaust Front Pipe Nut (1) - Install and tighten [2x] - Fastener Specifications

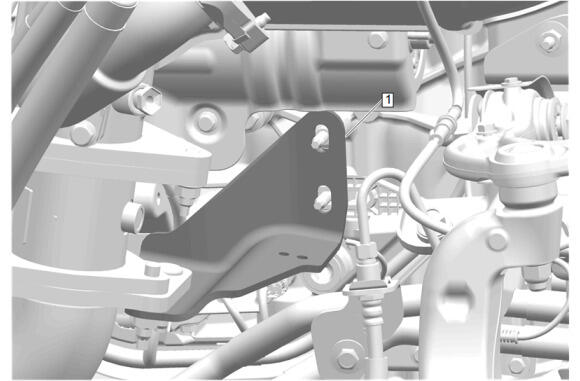

Catalytic Converter Brace Bracket (1) - Install
Exhaust Front Pipe Nut (1) - Install [2x] - Fastener Specifications
Exhaust Pipe Clamp (1) - Tighten - Fastener Specifications
Apply a suitable anti-seize compound to the threads of the sensor. Adhesives, Fluids, Lubricants, and Sealers
- Exhaust Particulate Sensor (1) - Install and tighten - Fastener Specifications
Apply a suitable anti-seize compound to the threads of the sensor. Adhesives, Fluids, Lubricants, and Sealers
- Nitrogen Oxides Sensor - Position 3 (1) - Install and tighten - Fastener Specifications
Apply a suitable anti-seize compound to the threads of the sensor. Adhesives, Fluids, Lubricants, and Sealers
- Nitrogen Oxides Sensor - Position 2 - Install and tighten - Fastener Specifications
- Lower the vehicle.

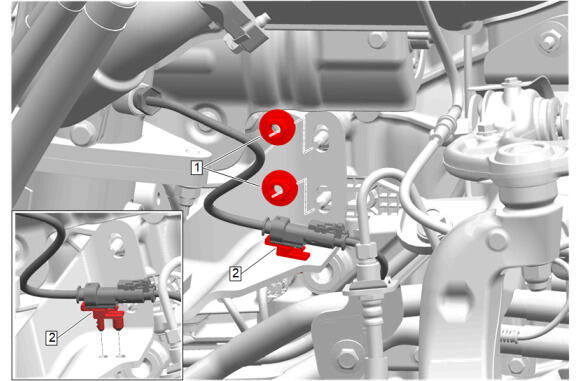

Wiring Harness Retainer (2) - Install
- Catalytic Converter Brace Bracket Nut (1) - Install and tighten [2x] - Fastener Specifications
- Front Wheelhouse Liner - Right Side - Install - Front Wheelhouse Liner Replacement
- Inspect the exhaust system for leaks.
Refer to Component Fastener Tightening Caution .
