Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Install transmission vent hose. (2)
Install the 2 transmission vent hose retainers (1).
Raise the transmission into place.
Courtesy of GENERAL MOTORS COMPANY

Transmission Support Crossmember (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Transmission Support Crossmember Bolt (3) - Install [4x]
Transmission Support Crossmember Nut (2) - Install and tighten [4x] - Fastener Specifications
Transmission Mount Nut (1) - Install and tighten - Fastener Specifications
Remove the transmission jack.
Courtesy of GENERAL MOTORS COMPANY

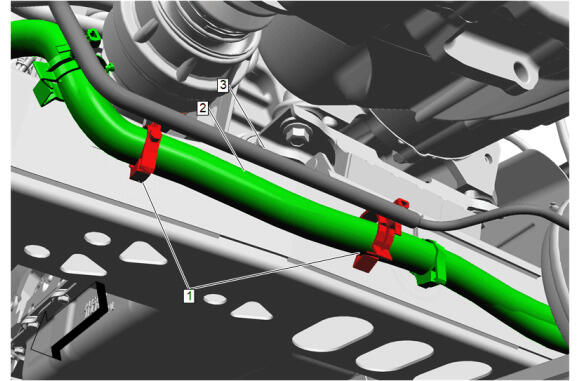

Install the wiring harness (2) with automatic level control air supply line (3) into the retainers (1).
Courtesy of GENERAL MOTORS COMPANY

Automatic Level Control Air Supply Reservoir (2) - Install
Install the 3 automatic level control air compressor bolts (1) and tighten. Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Install the chassis wire harness clip (1) to the automatic level control air supply reservoir.
Courtesy of GENERAL MOTORS COMPANY

Exhaust System Front Gasket (2) - Install NEW
Nitrogen Oxides Catalytic Converter (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

Exhaust Front Pipe Nut (1) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Catalytic Converter Brace Bracket (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Exhaust Front Pipe Nut (1) - Install [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Exhaust Pipe Clamp (1) - Tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Apply a suitable anti-seize compound to the threads of the sensor. Adhesives, Fluids, Lubricants, and Sealers

CAUTION:

Refer to Component Fastener Tightening Caution .

Exhaust Particulate Sensor (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Apply a suitable anti-seize compound to the threads of the sensor. Adhesives, Fluids, Lubricants, and Sealers
Nitrogen Oxides Sensor - Position 3 (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Apply a suitable anti-seize compound to the threads of the sensor. Adhesives, Fluids, Lubricants, and Sealers
Nitrogen Oxides Sensor - Position 2 - Install and tighten - Fastener Specifications
Lower the vehicle.
Courtesy of GENERAL MOTORS COMPANY

Wiring Harness Retainer (2) - Install
Catalytic Converter Brace Bracket Nut (1) - Install and tighten [2x] - Fastener Specifications
Front Wheelhouse Liner - Right Side - Install - Front Wheelhouse Liner Replacement
Inspect the exhaust system for leaks.
