Home >> Chevrolet >> 2022 >> Tahoe PPV, RWD >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission - 10L80 (MHS MQC) - Repair Instructions - On Vehicle (1 Of 2) >> Repair Instructions - On Vehicle >> Automatic Transmission Case Extension Replacement (LM2, 4WD with NP0) >> Installation Procedure

Installation Procedure

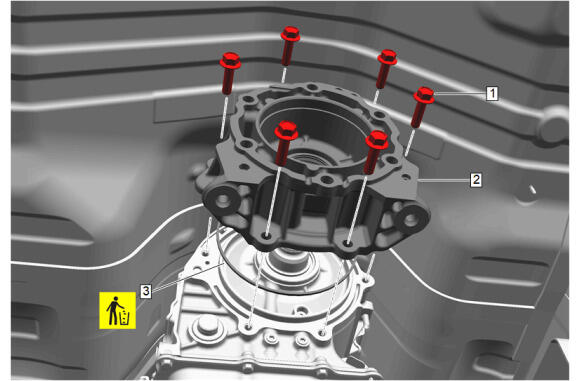

  1. GM5595505Courtesy of GENERAL MOTORS COMPANY

    Automatic Transmission Case Extension Seal (3) - Install NEW

  2. Lubricate the inner diameter of the transmission output shaft seal with NEW transmission fluid prior to installing the automatic transmission case extension. Adhesives, Fluids, Lubricants, and Sealers
  3. Automatic Transmission Case Extension (2) - Install
    4. CAUTION:

    Refer to Fastener Caution .

  4. Automatic Transmission Case Extension Bolt (1) - Install and tighten in sequence [6x] - Fastener Specifications
  5. Transfer Case Assembly - Install - Transfer Case Assembly Replacement (LM2 without F47) , or Transfer Case Assembly Replacement (LM2 with F47)
  6. If necessary, check the transmission fluid level and condition. Transmission Fluid Level and Condition Check
