Fastener Specifications

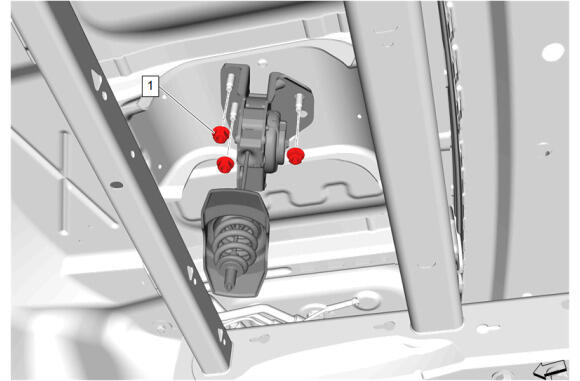

Spare Wheel Hoist Replacement
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Spare Wheel Hoist Nut [3x] | - | - | 32 N.m (24 lb ft) | Spare Wheel Hoist Replacement |

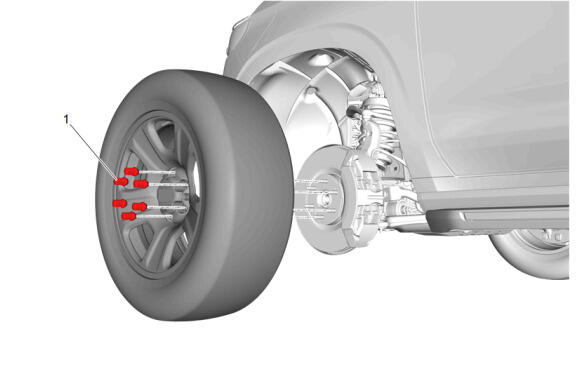

Tire and Wheel Removal and Installation (Aluminum Wheel)
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Wheel Nut [6x] | - | - | 190 N.m (140 lb ft) | Tire and Wheel Removal and Installation (Aluminum Wheel) |
Tire and Wheel Removal and Installation (Steel Wheel)
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Wheel Nut [6x] | - | - | 190 N.m (140 lb ft) | Tire and Wheel Removal and Installation (Aluminum Wheel) |

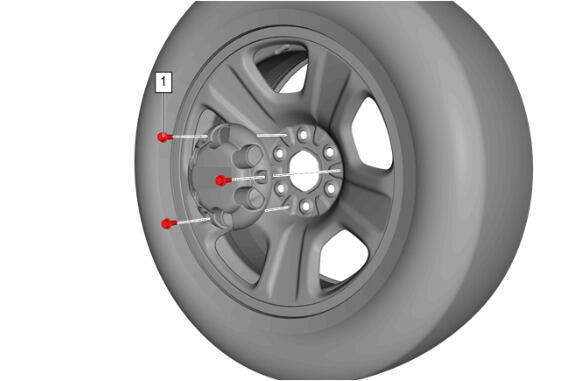

Tire and Wheel Removal and Installation (Steel Wheel)
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Wheel Trim Cap Bolt [3x] | - | Yes | 30 N.m (22 lb ft) | Tire and Wheel Removal and Installation (Steel Wheel) |
